Tungsten powder, and the physics of particle damping
Paul Fowler spent three years developing these before launch, and the patent covers the part that matters: a sealed chamber of calibrated tungsten powder inside each foot.
Particle damping is established engineering rather than an audio invention. Loose granules inside a cavity absorb vibratory energy through friction and momentum exchange as they collide, and the effect works across a wide frequency range rather than at one tuned point. Tungsten is the choice because it is exceptionally dense and non-magnetic, which is why it turns up in rivet guns and as aircraft counterweights.
The end plates are a tungsten alloy whose composition was tuned by listening, and the chamber is aircraft grade stainless steel. To test whether the tungsten was doing the work rather than the shape, Tungsten Grooves built the same feet in steel, copper and composite and compared them. They also report the effect strengthening over the first five to ten minutes as the feet warm.
There is no need to remove your component's existing feet, since these sit between the chassis and the shelf. Position is worth experimenting with, because where you place them under a chassis changes the result. The model names give the dimensions: W for diameter, H for height, both in millimetres.
-
Tungsten Grooves
Tungsten Grooves W50-H33 Mini Groovers Isolation Feet - Individual FootSKU: Tungsten Grooves W50-H33
£566.67Ex. VATThis series of isolation feet by Tungsten Grooves was created to efficiently absorb vibrations from your audio equipment, relying on the absorptive properties of tungsten to unlock hidden details in your music system. The W50-H33 Mini Groovers are the smallest feet that Tungsten Grooves make, with the same height as the D70 but a narrower profile than either of its two bigger siblings, making it ideal for the smallest of components. -
SALE
Tungsten Grooves

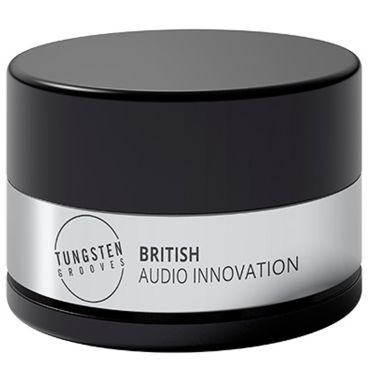

Tungsten Grooves W70-H47 Vibration Isolation Feet - Individual Foot - Ex-DemoSKU: D70-H47-Ex-Demo
£921.67 £1,316.67Ex. VAT ✓ Save £395.00This series of isolation feet by Tungsten Grooves was created to efficiently absorb vibrations from your audio equipment, relying on the absorptive properties of tungsten to unlock hidden details in your music system. The W70-H47, affectionately known as the Fat Boy, is the largest foot in the series offering the greatest performance.
-
£983.33Ex. VAT
This series of isolation feet by Tungsten Grooves was created to efficiently absorb vibrations from your audio equipment, relying on the absorptive properties of tungsten to unlock hidden details in your music system. The W70-H33 is the middle child of the series, offering greater performance than the Mini Grooves but with a smaller profile than the W70-H47. They have a smaller top plate than their larger sibling, but the same diameter, making them an ideal choice if space is at a premium.
-
SALE£1,249.17 £1,316.67Ex. VAT ✓ Save £67.50This series of isolation feet by Tungsten Grooves was created to efficiently absorb vibrations from your audio equipment, relying on the absorptive properties of tungsten to unlock hidden details in your music system. The W70-H47, affectionately known as the Fat Boy, is the largest foot in the series offering the greatest performance.
-
SALETungsten Grooves

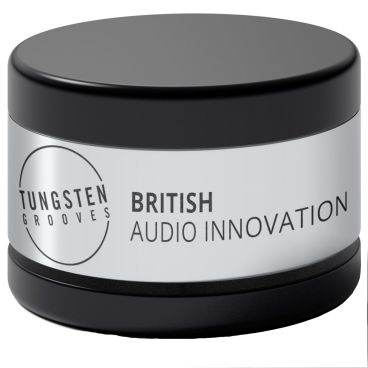

Tungsten Grooves W50-H33 Mini Grooves Isolation Feet - Pack of 4 - Ex-DemoSKU: W50-H33 Ex-Demo
£1,586.67 £2,266.67Ex. VAT ✓ Save £680.00This series of isolation feet by Tungsten Grooves was created to efficiently absorb vibrations from your audio equipment, relying on the absorptive properties of tungsten to unlock hidden details in your music system. The W50-H33 Mini Groovers are the smallest feet that Tungsten Grooves make, with the same height as the D70 but a narrower profile than either of its two bigger siblings, making it ideal for the smallest of components. -
SALETungsten Grooves

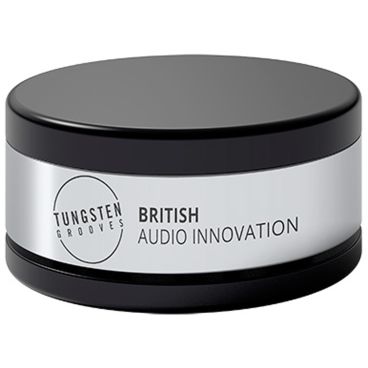

Tungsten Grooves W70-H33 Vibration Isolation Feet - Pack of 4 - Ex-DemoSKU: W70-H33-Ex-Demo
£2,753.33 £3,933.33Ex. VAT ✓ Save £1,180.00This series of isolation feet by Tungsten Grooves was created to efficiently absorb vibrations from your audio equipment, relying on the absorptive properties of tungsten to unlock hidden details in your music system. The W70-H33 is the middle child of the series, offering greater performance than the Mini Grooves but with a smaller profile than the W70-H47. They have a smaller top plate than their larger sibling, but the same diameter, making them an ideal choice if space is at a premium.
