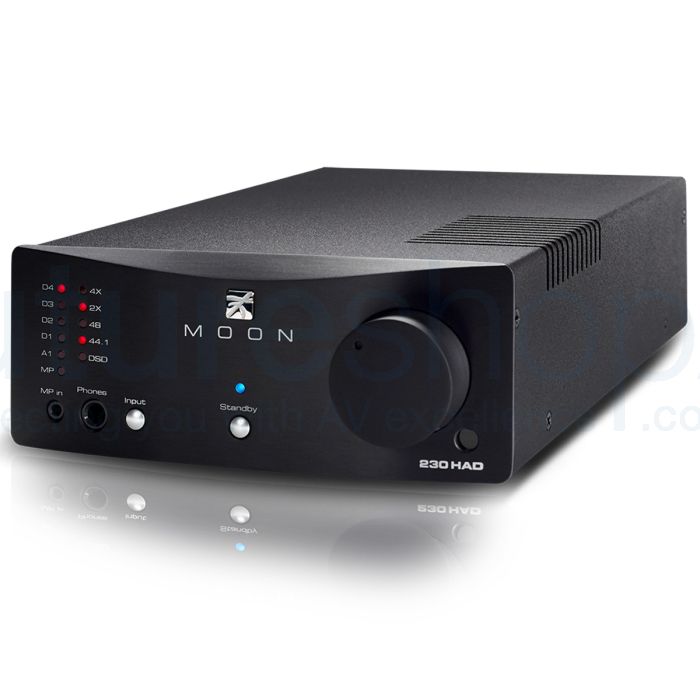

Moon by Simaudio 230HAD Headphone Amplifier and DAC

£1,900.00 £1,583.33
SKU
230HAD
Free UK Delivery
10 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Are you passionate about music and desire a unique personal listening experience, yet don’t have the urge to build a “full blown” music system? Are you looking for the perfect desktop solution for a computer-based audio system? Do you already own a high-performance music system and have a craving to listen to headphones without making a compromise? If you already have a MOON system, this can be the control centre for a secondary system. Or do you simply want to get maximum performance from your reasonably efficient, unbalanced headphones? The possibilities are endless…

Moon by Simaudio 230HAD Headphone Amplifier and DAC



Are you passionate about music and desire a unique personal listening experience, yet don’t have the urge to build a “full blown” music system? Are you looking for the perfect desktop solution for a computer-based audio system? Do you already own a high-performance music system and have a craving to listen to headphones without making a compromise? If you already have a MOON system, this can be the control centre for a secondary system. Or do you simply want to get maximum performance from your reasonably efficient, unbalanced headphones? The possibilities are endless…

The 230HAD is a headphone amplifier, a DAC and a line-stage preamplifier all housed in one very stylish package. What else could you possibly ask for?

The 230HAD is more than capable of the task, whatever your needs may be. Based heavily on the reference 430HA headphone amp, the 230HAD features a DSD256/32-bit PCM capable Digital-to-Analog converter (DAC) that can be used with virtually any digital source such a computer, satellite TV receiver or Blu-Ray player, and offering the same fidelity as your main music system.

Ultimately, the 230HAD fills an immense void in the current headphone marketplace, especially when considering its exceptional “price to performance” ratio. Today music lovers need a flexible high quality DAC, capable of both DSD and hi-res PCM. This multi-function product is more about affordable high-performance than minor features.

Features

  • Inputs include 1 single-ended on rear-mounted RCA's and 1 single-ended on 1/8" jack located on the front panel
  • Outputs include a 1/4" TRS headphone jack, as well as both fixed and variable single-ended line-level RCA stereo pairs
  • Fully asynchronous DAC with four digital inputs (SPDI x2, TosLink x1 & USB x1) allowing for use with virtually any digital source
  • Supports DSD64, DSD128, DSD256 *USB input only)
  • Supports PCM up to 24-bit/192kHz (all inputs) and 32-bit/385kHz (USB input only)
  • Pure analogue amplifier using a transconductance circuit
  • An oversized power supply using 1 toroidal transformer in conjunction with 8 stages of DC voltage regulation





"The 230HAD does a good job with dynamics for the most part, particularly with big bold dynamic shifts where it can really let loose. It can go eerily quiet too, although low-level dynamics aren’t quite as expressive as the louder ones.

n terms of balance, it’s a fairly neutral listen, but with a weighty enough bass that gives it a little more substance than the Hugo’s leaner presentation."

What Hi-Fi? - February 2016

"Bass doesn’t dominate the balance, however – the clear mid-range and silky treble are given equal attention. There’s tons of detail, with the 230HAD bringing attention to even the subtlest cymbals and effects. The level of refinement and insight here easily justifies the price tag."

Trusted Reviews - March 2016

"The Moon Neo 230HAD is refined and classically musical. It offers extraordinary clarity and precision, making it a great choice for born-again audiophiles. There's plenty of connectivity too, enabling it to be used either as a simple USB sound system, or integrated into something much more complex."

TechRadar - April 2016





Specification

  • Output power per channel @ 600Ω / 300Ω / 50Ω: 100mW / 200mW / 1W
  • Headphone Impedance: 20 - 600Ω
  • Frequency Response (audible): 20Hz - 20kHz ±0.1dB
  • Frequency Response (full range): 5Hz - 100kHz +0/-3dB
  • THD @ 1kHz, 0dBFS (A-weighted): 0.005%
  • Intermodulation distortion: 0.05%
  • Signal-to-noise Ratio: 115dB
  • Crosstalk: -80dB
  • Input / Output Impedance: 22kΩ / 1.25Ω
  • Shipping Weight: 6.2lb / 2.8kg
  • Dimensions (W x H x D): 7.0 x 3.0 x 11.0 (in) / 17.8 x 7.6 x 28.0 (cm)

Included in the box

  • AC power cable
  • ‘CRM-2’ remote control with two ‘AA’ batteries
  • User Manual



About MOON by Simaudio

Moon by Simaudio offers an unparalleled sound experience that transcends boundaries. Simaudio's commitment to producing products of exceptional quality ensures that every moment with the artist becomes an intimate and unforgettable encounter. Created with precision and designed to endure, Moon products are built to be enjoyed over a lifetime, captivating audiophiles and music enthusiasts alike.

Driven by a passion for music, Moon's mission is to convey the true spirit and emotion of every musical masterpiece through its distinguished line of products. Moon has revolutionised the industry for nearly four decades with a relentless pursuit of excellence and an unwavering dedication to their customers. Their consistent creativity, passion, and steadfast commitment have set new standards and shaped the audio landscape.

As experienced audiophiles and devoted music lovers, Moon's team of specialists deeply understand the transformative power of music. Since 1980, their engineers and designers have been pushing the boundaries of sound purity, consistently striving to redefine what was once thought impossible. Their unyielding pursuit of sonic perfection has garnered acclaim from music enthusiasts worldwide.

At Moon by Simaudio, delivering a world-class customer experience is paramount. With a renowned reputation for professionalism and personalised service, their passionate team is committed to ensuring your long-term satisfaction. Regardless of location, Moon goes above and beyond to provide the best sound experience tailored to your needs.

Beyond their dedication to sound excellence, Moon is proud to embrace sustainability and environmental responsibility. They actively seek responsible suppliers and subcontractors who share their commitment to reducing the carbon footprint. By building products with minimal environmental impact, Moon's dedication to sustainability is reflected in its 10-year warranty, reinforcing its values and respect for the planet.

Respect for sound and a profound connection to the listener lies at the heart of Moon's philosophy. They believe that nothing should compromise the authenticity of a recording and the emotional journey it imparts. With a goal to achieve unparalleled proximity between the listener and the artist, Moon's devotion to preserving the purity of sound creates an unrivalled sense of intimacy.

In summary, Moon by Simaudio represents a remarkable fusion of artistry and engineering, redefining the art of sound reproduction. With a rich heritage spanning decades, their dedication to sonic excellence, exceptional customer service, sustainability, and profound respect for the authenticity of music distinguishes Moon as a leader in the industry.



Specification

  • Output power per channel @ 600Ω / 300Ω / 50Ω: 100mW / 200mW / 1W
  • Headphone Impedance: 20 - 600Ω
  • Frequency Response (audible): 20Hz - 20kHz ±0.1dB
  • Frequency Response (full range): 5Hz - 100kHz +0/-3dB
  • THD @ 1kHz, 0dBFS (A-weighted): 0.005%
  • Intermodulation distortion: 0.05%
  • Signal-to-noise Ratio: 115dB
  • Crosstalk: -80dB
  • Input / Output Impedance: 22kΩ / 1.25Ω
  • Shipping Weight: 6.2lb / 2.8kg
  • Dimensions (W x H x D): 7.0 x 3.0 x 11.0 (in) / 17.8 x 7.6 x 28.0 (cm)

Included in the box

  • AC power cable
  • ‘CRM-2’ remote control with two ‘AA’ batteries
  • User Manual
