Blustream's HDBaseT technology has transformed the way AV installers and enthusiasts distribute ultra-high-definition video, high-resolution audio, and control signals. By transmitting multiple data streams over a single Cat cable, it offers a simplified, reliable solution for both residential and commercial projects. Blustream is at the forefront of HDBaseT innovation, delivering solutions that ensure pristine 4K UHD performance, long-distance reliability, and future-proof compatibility.

In this guide, we'll explore how HDBaseT works, what makes Blustream's implementation stand out, and how you can leverage it to create efficient, professional-grade AV installations.

What Is HDBaseT?

HDBaseT is a connectivity standard that transmits uncompressed ultra-HD video, audio, Ethernet, control signals (IR and RS-232), USB, and even DC power (PoH: Power over HDBaseT) over a single Cat5e/6/6a cable, reaching distances of up to 100 metres without quality loss.

Key benefits include: single-cable simplicity for reduced clutter, long-distance 4K UHD transmission, uncompressed video and lossless audio, integrated control for IR/RS-232/IP, and PoH for remote powering of devices.

Why Choose Blustream HDBaseT Solutions?

Blustream integrates HDBaseT into a wide range of extenders, matrix switchers, and video over IP systems. They deliver 4K UHD with HDR10, HLG, and Dolby Vision, HDCP 2.2 compliance, multiple control options (RS-232, IR, IP), PoH capability, and robust, installer-friendly design.

How It Works: Example Setup

In a home cinema setup where your source is 40 metres from the display:

• Connect the source to the TX unit via HDMI.
• Run Cat6a or Cat7 from TX to RX unit.
• Connect RX to the display via HDMI.
• Use IR emitter/receiver for remote control.
• If PoH is supported, only one power supply is needed.

Popular Blustream HDBaseT Products: Comparison Table

Which Cat Cable Grade Should You Use?

The Cat cable grade is one of the most common specification questions in HDBaseT installations, and choosing the wrong grade for the distance and signal format is the most frequent cause of intermittent 4K or HDR dropouts.

Cat5e: Suitable for HDBaseT at 1080p over distances up to 70m, or 4K at shorter runs in low-interference environments. Not recommended for 4K UHD 60Hz 4:4:4 at distances beyond 30m, as the cable's bandwidth headroom at high frequencies is insufficient to guarantee reliable HDCP handshakes and full-colour 4K delivery.

Cat6: A reliable choice for 4K UHD at distances up to approximately 40m. Offers better crosstalk rejection than Cat5e and is the practical minimum for any new installation that will need to carry full-bandwidth 4K content. Widely available and easy to terminate.

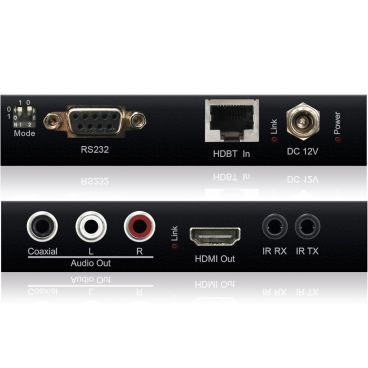

Cat6a: The recommended choice for any 4K UHD 60Hz 4:4:4 run over 40m, and the specification Blustream cites for maximum-bandwidth performance on the HEX18G-KIT. Cat6a's augmented construction reduces crosstalk and alien crosstalk at the frequencies HDBaseT uses most intensively, making it the most reliable option for long runs or installations in electrically noisy environments such as commercial buildings.

Cat7: Provides shielded performance and is suitable where EMI is a known issue, such as in plant rooms or alongside power infrastructure. The additional cost over Cat6a is only justified in environments with confirmed high interference. Cat7 uses proprietary GG45 or TERA connectors in its native form, but when terminated with RJ45 connectors it performs comparably to Cat6a for HDBaseT purposes.

For all grades: use solid-core rather than stranded cable for fixed wall installations. Stranded cable is more flexible but has higher signal attenuation over distance and performs measurably worse at the frequencies HDBaseT requires.

HDBaseT vs AV Over IP: Choosing the Right Architecture

For installations beyond a single extender pair, the choice between HDBaseT matrix distribution and AV over IP is the most significant architectural decision. The right answer depends primarily on the number of zones and whether managed Ethernet infrastructure is already in place.

HDBaseT matrix (PLA88CS and similar): The most cost-effective and straightforward architecture for fixed installations with up to eight sources and eight displays. A dedicated matrix switcher manages all routing in hardware, with no network configuration required. Latency is near-zero, HDCP compliance is handled by the matrix rather than a managed switch, and the system requires no IT expertise to commission. HDBaseT matrix is the standard choice for residential multi-room systems and smaller commercial installs where reliability and simplicity are priorities.

AV over IP: The better architecture when the number of zones exceeds eight, when the building already has a managed Ethernet backbone, or when the installation requires any-to-any routing flexibility that a fixed matrix cannot provide. AV over IP uses the Ethernet network as the switching fabric, meaning sources and displays are added by connecting to the nearest network port rather than running dedicated Cat cables back to a central matrix location. The trade-off is that it requires a properly configured managed Gigabit or 10Gbps switch, increases commissioning complexity, and introduces IP network management as an ongoing responsibility. For dedicated Blustream AV over IP solutions, see our AV distribution guide covering the IP-7000 series and comparable architecture.

Best Practices for HDBaseT Installations

For optimal results, use Cat6a or Cat7, avoid sharp bends or running cables alongside power lines, test cables pre-installation, and consider PoH devices to reduce hardware clutter.

Troubleshooting Common HDBaseT Issues

Most HDBaseT problems in the field fall into one of four categories, and each has a straightforward diagnosis path.

No signal or intermittent dropout: The most common cause is a marginal cable run: either the cable grade is insufficient for the distance and signal format, the cable is damaged, or it has been installed with too many tight bends. Test the cable with a Cat cable tester before suspecting the HDBaseT hardware. The second most common cause is HDCP handshake failure: power cycle the TX and RX units in sequence (TX first, then RX, then source, then display) and allow 30 seconds between each step.

4K signal passing but HDR not working: This typically indicates that the EDID (Extended Display Identification Data) profile negotiated between the source and the display is not including HDR capability. Check the EDID management settings on the Blustream unit: most models allow the EDID to be set to a fixed profile or read directly from the display. Setting a fixed 4K HDR EDID profile is more reliable than passing the display's native EDID through a long cable run, as EDID data can be corrupted over extended distances.

IR control not working: Confirm that the IR emitter is positioned within 5cm of the equipment's IR receiver window and that the IR frequency matches the equipment. Some devices use unusual IR frequencies that require a specific emitter. Also check that the IR polarity setting on the Blustream unit (normal vs inverted) matches the requirement of the controlled device.

PoH not powering the RX unit: Verify that both the TX unit in the installation and the cable run support PoH. Not all HDBaseT products in a range support PoH on both ends: the HEX70CS-KIT supports PoH, but always check the specific model's datasheet. If PoH is present but the RX is not powering up, test with a shorter cable run to rule out voltage drop over distance.

Conclusion

HDBaseT is a powerful tool for modern AV distribution, and Blustream's solutions make it simple to deliver 4K UHD, HDR, and multi-channel audio over long distances through a single cable. Whether for professional installations or home cinema projects, Blustream offers the technology and flexibility to achieve world-class results.

Browse the full range of Blustream HDBaseT products at FutureShop. Specifying a multi-room or commercial installation and not sure whether HDBaseT matrix or AV over IP is the right architecture? Get in touch with our team and we will help you design the right distribution system for your project.
