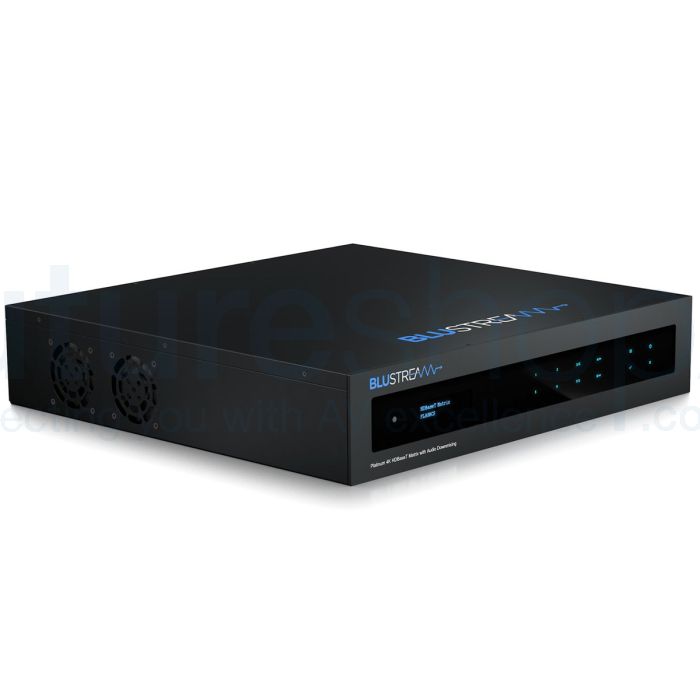

Blustream PLA88CS 8x8 4K HDMI 2.0 HDBaseT™ CSC AV Matrix with Audio Downmixing
The Blustream PLA88CS 8x8 4K HDMI 2.0 HDBaseT™ CSC AV Matrix with Audio Downmixing is an industry-leading solution that provides exceptional performance and versatility for audio/video distribution.
Designed to meet the demands of professional installations, the PLA88CS Matrix offers advanced features and cutting-edge technology. HDBaseT™ technology enables the distribution of high-quality video and audio signals over a single CAT cable, simplifying installation and reducing cable clutter.
The Matrix supports HDMI 2.0 with a bandwidth of 18Gbps, ensuring pristine video quality and compatibility with the latest 4K resolutions, including 4K 60Hz 4:4:4 colour space and HDR (High Dynamic Range). The advanced Color Space Conversion (CSC) feature enhances the visual experience, delivering vibrant and lifelike images.
The PLA88CS Matrix offers flexibility with 8 HDMI inputs that can be independently routed to 4 HDBaseT™ outputs and 4 HDBaseT™/HDMI outputs. This lets you connect multiple sources and displays simultaneously, making it ideal for complex AV setups.
With dual HDMI and HDBaseT™ outputs, the Matrix provides additional flexibility. It supports independent down-scaling of 4K video, enabling compatibility with displays with lower video resolution capabilities. This means you can still deliver maximum UHD resolution to high-definition displays while accommodating lower-resolution displays.
One of the standout features of the PLA88CS Matrix is its advanced audio capabilities. It offers independent Dolby Audio and DTS Audio downmixing on HDMI and audio outputs, allowing for a mixture of different audio output formats. This feature is particularly useful when using different audio-capable displays and AV amplifiers, ensuring optimal audio performance across your system.
The Matrix also includes features such as independent video scaling on all HDBaseT™ outputs, audio routing, Audio Return Channel (ARC), optical (S/PDIF) audio delay for lip-sync correction, bi-directional IR and RS-232 pass-through, and a convenient web interface module for easy control and configuration.
With its HDCP 2.2 compliance and advanced EDID management, the PLA88CS Matrix ensures seamless content protection and efficient handling of display capabilities.
The Matrix supports power over cable (PoC) with 24V, allowing you to power compatible RX150CS or RX70CS Receivers directly from the Matrix. This simplifies the installation process and eliminates the need for additional power supplies.
For added convenience, the PLA88CS Matrix supports control via front panel, IR, RS-232, and TCP/IP, giving you flexible control options to suit your preferences. It is also compatible with major control brands, with 3rd-party drivers available for seamless integration into your existing control system.
The PLA88CS Matrix features a 2U design for easy integration into standard 19" rack mounts, and the mounting kit is included for your convenience.
Blustream recommends using the RX150CS Receiver for optimal performance and compatibility, which offers advanced features such as 18Gbps CSC, long-range mode, LAN support, audio return, and 24V PoC. Alternatively, the RX70CS Receiver is available for applications that require 18Gbps CSC, audio return, and 24V PoC support with a maximum distance of 70m at 1080p or 40m at 4K 60Hz 4:4:4.
Elevate your audio/video distribution system with the Blustream PLA88CS 8x8 4K HDMI 2.0 HDBaseT™ CSC AV Matrix with Audio Downmixing. Experience exceptional performance, advanced audio capabilities, and seamless integration in a professional.
Features
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
- 4x Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone
- Extends HDMI up to distance of 150m at 1080p, and 4K UHD video up to 100m (up to 4K 60Hz 4:4:4) using LRM (Long Range Mode)
- Features 8x HDMI inputs which can be independently routed to 4x HDBaseT™, and 4x HDBaseT™ / HDMI outputs
- 2x HDBaseT™ CSC inputs for connectivity to remote video sources not located locally to the Matrix
- Independent video scaling on all HDBaseT™ outputs
- Independent Dolby Audio & DTS Audio down mixing on HDMI and audio outputs
- Up to 24x16 Audio Matrix independently controllable from video:-
- 2x analogue L/R and 2x Optical (S/PDIF) audio inputs which can be routed to audio outputs, or embedded onto HDBaseT™/ HDMI outputs
- HDMI audio breakout to Optical (S/PDIF) digital, or analogue L/R audio outputs with variable pre-amp line level control
- Supports ARC (Audio Return Channel) via HDMI or Optical (S/PDIF) digital inputs from compatible RX150CS Receivers
- Supports full Dolby Audio and DTS Audio down mixing from HDMI inputs to 2ch audio
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Bi-directional IR & RS-232 from all input and output locations (with compatible Transmitters & Receivers)
- Integrated Ethernet (100Mbps) switch (LAN Serving) when used with Blustream RX150CS Receivers
- Web interface module for control and configuration of the Matrix
- Control of Matrix via front panel , IR, RS-232, and TCP/IP
- Supports 24V PoC (Power over Cable) to power compatible RX150CS or RX70CS Receivers
- 3rd party drivers available for major control brands
- HDCP 2.2 compliant with advanced EDID management
- 2U Design for 19” rack mount integration - mounting kit included
- Recommended receiver: RX150CS (where 18Gbps CSC, Long Range Mode, LAN, Audio Return, and 24V PoC support is required)
- Optional receiver: RX70CS (where 18Gbps CSC, Audio Return, and 24V PoC support only is required) - max distance 70m at 1080p, 40m at 4K 60Hz 4:4:4
|
Colour Space Conversion (CSC) Technology in HDBaseT™ Due to the data rate of HDBaseT™ technology being capped at 10.2Gbps, it is unable to pass the latest native 4K UHD resolutions of 4K 60Hz 4:4:4. There is now a requirement to integrate video resolutions with data speeds up to 18Gbps across a multi-zone AV environment. Blustream have implemented CSC (Colour Space Conversion) technology into our latest products to ensure 4K HDR signals can now be supported over the limited infrastructure of HDBaseT™. Colour Space Conversion reduces the data rate of the HDMI signal by converting the colour space from 4:4:4 or 4:2:2 to a lower format. Within Colour Space Conversion technology the native resolution and frame rate remain constant from end to end. The only part of the signal that is converted during transmission is the colour. Blustream CSC products do not support HDR10+ or the dynamic variation of Dolby Vision due to the way these specific variations of dynamic HDR (dHDR) are encoded. These codecs transmit repeated metadata packets throughout the transmission of any media making it impossible at this stage to convert in the same way using CSC technology. |
Specification
- Video Input Connectors: 8 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connectors
- Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connectors
- Audio Input Connectors: 2 x Analogue audio L/R (3.5mm stereo Jack), 2 x Optical (S/PDIF)
- Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo Jack), 8 x Optical (S/PDIF)
- RS-232 Serial Port: 9 x 3-pin Phoenix connector
- TCP/IP Control: 1 x RJ45, female
- Ethernet/Network: 1 x RJ45, female
- IR Input Ports: 10 x 3.5mm stereo jack
- IR Output Ports: 9 x 3.5mm mono jack
- Rack Mountable: 2U rack height, rack ears included
- Casing Dimensions (W x H x D): 440mm x 87mm x 361mm (without feet)
- Shipping Weight: 8.8kg
- Operating Temperature: 32°F to 104°F (0°C to +40°C)
- Storage Temperature: -4°F to 140°F (-20°C to +60°C)
- Power Supply: Internal 100-240V AC
Box Contents
- 1 x PLA88CS
- 1 x Rack Mounting Kit
- 1 x Remote Control
- 9 x IR Emitters
- 9 x IR Receivers
- 9 x IR Control Cable - 3.5mm to 3.5mm
- 2 x Serial Cable - DB9 to 3-pin Phoenix Connector
- 9 x 3-Pin Phoenix Connector
- 1 x Quick Reference Guide
- IEC Power Cable(s)
