ADL X1 Portable Headphone Amplifier / DAC

£360.00 £300.00
SKU
ADL X1
Free UK Delivery
12 Months
New
48 Hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The X1 is small, discrete but highly specified with inputs supporting iOS digital at up to 16/48 via APPLE MFI certified USB Cable for iPod, iPhone, iPad devices.

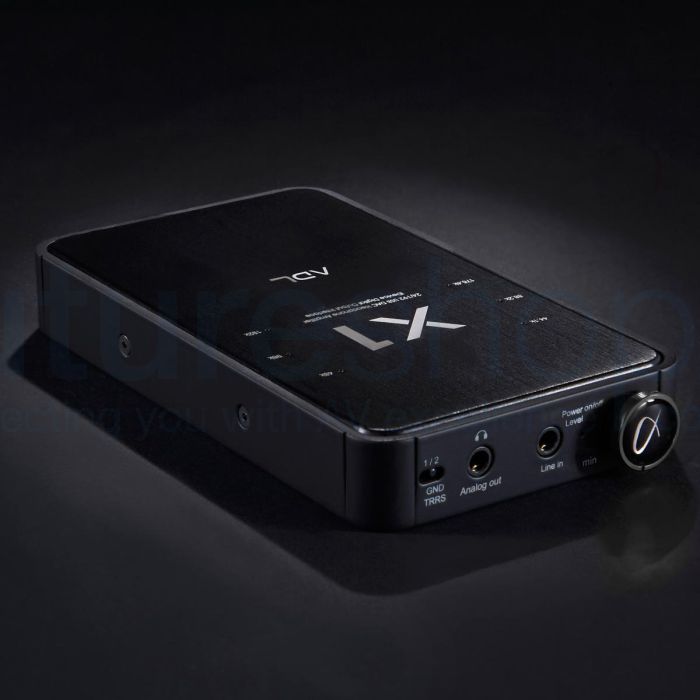

ADL X1 Portable Headphone Amplifier / DAC



Headphone listening is an intimate sonic experience and most enthusiasts employ headphone amplifiers and a good pair of headphones. The headphone amplifier determines the quality of sound in hand with the headphones.

 The X1 is small, discrete but highly specified with inputs supporting iOS digital at up to 16/48 via APPLE MFI certified USB Cable for iPod, iPhone, iPad devices. The X1 also runs 24/192 SPDIF with high-resolution files from PC via the PC’s USB output. There’s an analog line-level 4-pin 3.5mm input and a 4-pin 3.5mm output for headphones in the 12~600 ohm range. The 4-pin input supports 3.5mm Remote and Mic Earphones. The 3.5mm TOSLINK optical output delivers USB source signal up to 24/192. There’s a convenient GND TRRS switch making it easy to change from one 4-pin set of ‘phones to another.



Features :

  • High-performance 24-bit/192kHz XMOS USB and ESS-ES9023 DAC chip
  • Digital Inputs For iOS , PCs • Superb Sound!
  • DD Converter (3.5mm TOSLINK optical output)
  • Supports ASIO and Asynchronous mode
  • Goes Anywhere , Stacks Easily
  • Elegant Appearance
  • Low Jitter
  • Stacks easily
  • Fits in the palm of your hand
  • Enjoy music anywhere
  • Beautifully-finished aluminum and ABS plastic casing
  • Doesn’t draw power from connected iDevice’s battery
  • Headphone and output can connect to home stereo system
  • Line input improves sound of portable analog audio sources



Specification :

  • High-quality volume control and On/Off switch (front)
  • Gold-plated 3.5mm input connector: Analog line input (switched)
  • Gold-plated 3.5mm output connector-1: Headphone or Analog out
  • Gold-plated 3.5mm output connector-2: Headphone / Analog out or 3.5mm optical output for 24/192 (MAX) SPDIF
  • 4-layer gold-plated printed circuit board with >1oz copper thickness
  • Gold-plated USB A socket for 16/48 iDevices (iPod/iPhone/iPad)
  • Gold-plated USB mini-B connector for 24/192 PC operation
  • Recharges via PC USB connection or AC/DC switching power adapter (sold separately)
  • Attractive aluminum cover and ABS plastic body
  • Max headphone output at 1%THD @ 1KHz: 34mW(12 ohm), 60mW(16 ohm), 82mW(32 ohm), 86mW(56 ohm), 36mW(300 ohm), 19mW(600 ohm)
  • Channel separation 60~64dB (1KHz) 33ohms -50dB/<=±3dB
  • Frequency characteristics 20Hz~20kHz (±0.5dB)
  • Total Harmonic Distortion 0.033% (33ohms) , <0.02% (300ohms) , 0.0085% (600ohms)/1mW
  • S/N Ratio 95.5dB/32ohms , 98.1dB/56ohms , 101.6dB/300ohms, 102.1dB/600ohms
  • Charge time approximately 4~5 hours (AC/DC 5V, 1.0-2.0A switching adaptor – sold separately)
  • Charge time: approximately 7 hours (DC 5V 0.5A USB bus power)
  • Music playback time up to 7.5 hours when fully charged
  • Dimensions 68 (W) x 118 (D) x 16.5 (H) mm
  • Weight: 147g Approx.

Compatible devices include

  • i Phone5 (lightning cable), i Phone4S, i Phone4, i Phone3GS
  • i Pod touch 5th Gen (lightning cable), i Pod touch 4th Gen, i Pod touch 3rd Gen
  • i Pod nano 7th Gen (lightning cable), i Pod nano 6th Gen, i Pod nano 5th Gen
  • i Pad mini, i Pad 2, i Pad 3rd Gen



About ADL

Alpha Design Labs (ADL) is extremely proud of its worldwide reputation for innovative engineering, extraordinary build quality and legendary sonic performance. Originally launched as an entry-level line for Furutech, ADL has now evolved into a genuine leader in cutting-edge technology with its current line of desktop and portable audio components, headphones, earphones and cables. Using Furutech’s Pure Transmission Technology as the foundation for products that are carefully engineered as well as innovative, ADL has achieved a level of performance that has been previously unavailable at this price point. The Pure Transmission process focuses on one objective—to deliver a pure, open and quick sound that is preserved throughout the entire signal chain from the source to the speakers or headphones. As a result, Pure Transmission allows ADL components possess a greater sense of dynamics, power and resolution. You’ll hear deeper into your favorite recordings than ever before. Adding more ADL components to the playback chain—including our full line of portable headphone amplifiers, DACs, headphones and cables—will increase the sonic advantages you’ll experience from Pure Transmission Technology.

Specification :

  • High-quality volume control and On/Off switch (front)
  • Gold-plated 3.5mm input connector: Analog line input (switched)
  • Gold-plated 3.5mm output connector-1: Headphone or Analog out
  • Gold-plated 3.5mm output connector-2: Headphone / Analog out or 3.5mm optical output for 24/192 (MAX) SPDIF
  • 4-layer gold-plated printed circuit board with >1oz copper thickness
  • Gold-plated USB A socket for 16/48 iDevices (iPod/iPhone/iPad)
  • Gold-plated USB mini-B connector for 24/192 PC operation
  • Recharges via PC USB connection or AC/DC switching power adapter (sold separately)
  • Attractive aluminum cover and ABS plastic body
  • Max headphone output at 1%THD @ 1KHz: 34mW(12 ohm), 60mW(16 ohm), 82mW(32 ohm), 86mW(56 ohm), 36mW(300 ohm), 19mW(600 ohm)
  • Channel separation 60~64dB (1KHz) 33ohms -50dB/<=±3dB
  • Frequency characteristics 20Hz~20kHz (±0.5dB)
  • Total Harmonic Distortion 0.033% (33ohms) , <0.02% (300ohms) , 0.0085% (600ohms)/1mW
  • S/N Ratio 95.5dB/32ohms , 98.1dB/56ohms , 101.6dB/300ohms, 102.1dB/600ohms
  • Charge time approximately 4~5 hours (AC/DC 5V, 1.0-2.0A switching adaptor – sold separately)
  • Charge time: approximately 7 hours (DC 5V 0.5A USB bus power)
  • Music playback time up to 7.5 hours when fully charged
  • Dimensions 68 (W) x 118 (D) x 16.5 (H) mm
  • Weight: 147g Approx.
