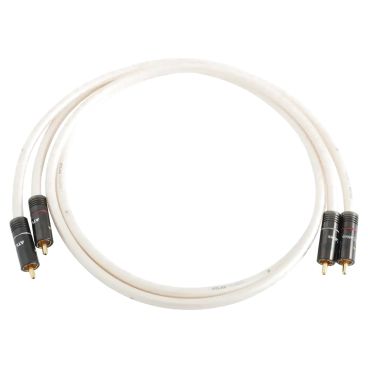

Atlas Element Achromatic 2 RCA to 2 RCA Audio Cable Pair
As low as £104.50 £87.08
SKU
Element Achromatic Audio
5 Years
New
24 hours
Atlas have made greater improvements on their new Element Achromatic Audio cable to create a higher performance starting point that delivers zero "colourisation" based upon their many years of knowledge and value for money characteristics.
Atlas Element Achromatic 2 RCA to 2 RCA Audio Cable Pair
Atlas have made greater improvements on their new Element Achromatic Audio cable to create a higher performance starting point that delivers zero "colourisation" based upon their many years of knowledge and value for money characteristics.
The new Atlas Element Achromatic Audio cable has significantly increased OCC copper content over the original Element Integra, as well as a reconfigured conductor lay, to reduce interstrand distoration and deletions. Additionally, the cable geometry has been improved to stabilise concentricity along the full length of the cable.
By improving the core elements of the Element Achromatic audio cable, the overall performance is greatly improved for an entry level cable. This means Atlas Element Achromatic audio cable can offer fantastic performance for most hi-fi systems due to it's minimal "colourisation" and greater bandwidth capabilities over and above the original Atlas Element Integra.
Features :
- Achromatic RCA Plug
- OCC Copper
- Polyethylene (PEF) Dielectric
- Co-ax Construction

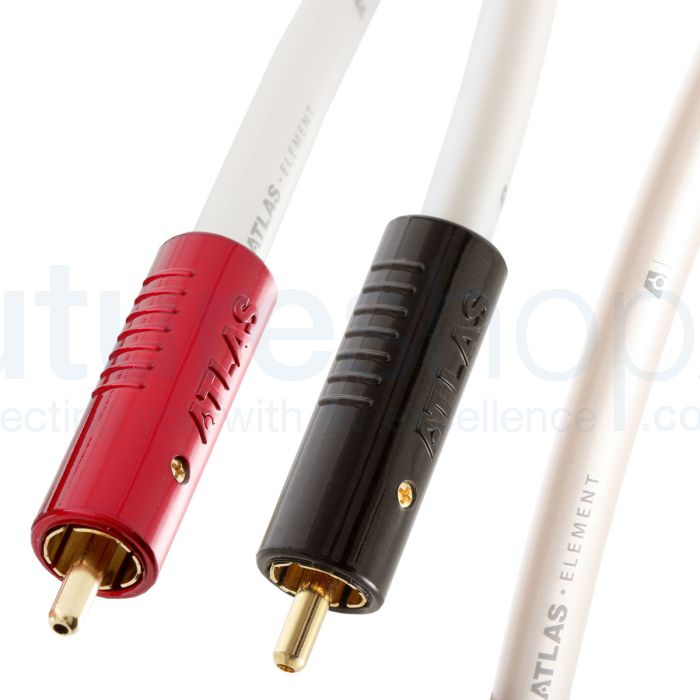

Achromatic Plugs
Atlas’s expert electro-mechanical knowledge has led to the innovation of the next generation of RCA plugs. Known as the ‘Atlas Achromatic RCA plug’, Atlas has focused on improving both performance and appearance to create a higher performance starting point for their RCA cables as well as eliminating variability in performance. This has been achieved by refocusing on materials and the assembly processes.
Atlas has made 4 key changes with the Achromatic RCA plug. Firstly, the barrel of the Achromatic plug features a high stability ABS material. This is strong, stable and of superlative surface quality.
There is also an improvement to the Achromatic plug’s contact geometry, aiding the contact properties of the plug and the self-cleaning wiping action to ensure contacts are in optimal condition and to maximise signal transmission.
The third change Atlas made was around the rifling of the RCA pin. This improvement self-aligns the conductors during the cold weld processing, ensuring a superior stable connection.
Finally, there is a reduction in the overall mass of the RCA plug by 8% which has shown to improve signal transmission.
The above changes mean a solder-free, low mass, self-cleaning, recyclable RCA plug with a non-conductive body.
OCC Copper
The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor''s length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long! The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment.
|
Copper Purity Comparison (0.3mm Diameter) |
||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
Polyethylene (PEF) Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables. Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE). PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product. The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) | Foamed Polyethylene (PEF) | Polypropylene (P.P) | Teflon (FEP or PTFE) | PTFE |
| Dielectric Constant (@ 50 -106Hz) | 4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) | 23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) | 8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) | 0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) | 1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) | 1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) | -130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) | 60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) | -15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Co-ax Construction
Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.
|
|
|
"The Element is very flexible making it easy to fit around the back of kit and the plugs are a real step-up in quality. Having run in the Element, which is connected between a valve preamp and valve monoblocks, we play a recording of John Williams and the English Chamber Orchestra performing the second movement of Rodrigo’s Concierto de Aranjuez. We’re drawn into Williams’ intimate guitar performance right from the start of the movement. There is a good sense of spaciousness and depth to the soundstage and the imaging, especially of the guitar, is excellent" - (Read More) Hi-Fi Choice Recommended - February 2021
|
Specification :
- Construction: Coax
- Conductor Material: OCC Copper
- Screen Type/Material: Braid OFC
- Screen Coverage %: 90%
- Dielectric: PEF
- Connector: Achromatic RCA Plug
- Colour: Pearl White
- Outside Diameter : 7.0mm
- Capacitance : 63.03 pF/m
- Inductance : 0.3735 µH/m
- Resistance : 0.1612Ω/m
- Impedance : 77.05 Ohms/m
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction: Coax
- Conductor Material: OCC Copper
- Screen Type/Material: Braid OFC
- Screen Coverage %: 90%
- Dielectric: PEF
- Connector: Achromatic RCA Plug
- Colour: Pearl White
- Outside Diameter : 7.0mm
- Capacitance : 63.03 pF/m
- Inductance : 0.3735 µH/m
- Resistance : 0.1612Ω/m
- Impedance : 77.05 Ohms/m
