Atlas Element Achromatic Tonearm Audio Cable - Special Offer
£283.00 As low as £198.95 £165.79
SKU
Element Achromatic Tonearm
5 Years
New
48 Hours
Benefitting from Atlas' ongoing research and development, the Element Tonearm cable is fitted with their Achromatic non-magnetic RCA plugs and integrated earth tag. The low mass Achromatic connector features a solder-free, cold-weld connection, all optimised to create a coherent, continuous signal path.
promotional_banner_4
promotional_banner_4

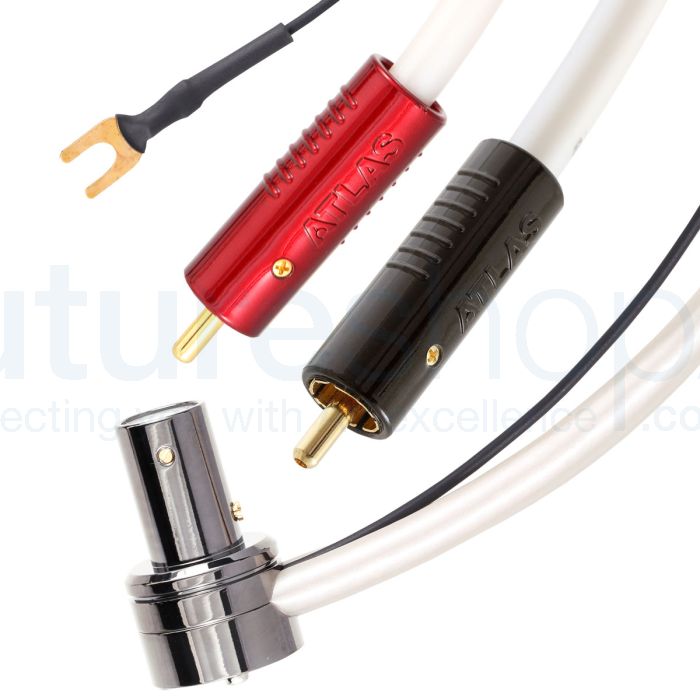

Atlas Element Achromatic Tonearm Audio Cable
The resurgence of vinyl has prompted the introduction of new Atlas tonearm/turntable products to optimise your vinyl playback. Based on Atlas' multi-award winning Element Integra RCA, the Element Achromatic Tonearm cable is available with the choice of either a right-angle (90°) or straight (180°) entry 5 pin connector.
Benefitting from Atlas' ongoing research and development, the Element Tonearm cable is fitted with their Achromatic non-magnetic RCA plugs and integrated earth tag. The low mass Achromatic connector features a solder-free, cold-weld connection, all optimised to create a coherent, continuous signal path.
The signal conductor is a fully shielded high quality OFC copper, designed and constructed to provide maximum resistance to RFI (Radio Frequency Interference) which can raise noise levels in a poorly shielded cable, particularly important with such sensitive low-level signals as typically generated by a pick-up cartridge. The 5 pin tonearm plug is precision-turned and hard gold-plated with PTFE (Teflon™) insulation.
Understand the complex relationship that exists between materials and performance is core to Atlas's business and rolling innovation through their product range is part of their DNA. Atlas are glad to announce that the innovative Aluminium alloy that they use for all their existing metal plugs (XLR, Ultra, Transpose and Z plug) has now arrive at the Tonearm cable, delivering superior fidelity via its low mass design.
Features :
- Achromatic RCA Plugs
- OFC Conductors
- PEF Dielectric
- 4 core + Screen
Achromatic Plugs
Atlas’s expert electro-mechanical knowledge has led to the innovation of the next generation of RCA plugs. Known as the ‘Atlas Achromatic RCA plug’, Atlas has focused on improving both performance and appearance to create a higher performance starting point for their RCA cables as well as eliminating variability in performance. This has been achieved by refocusing on materials and the assembly processes.
Atlas has made 4 key changes with the Achromatic RCA plug. Firstly, the barrel of the Achromatic plug features a high stability ABS material. This is strong, stable and of superlative surface quality.
There is also an improvement to the Achromatic plug’s contact geometry, aiding the contact properties of the plug and the self-cleaning wiping action to ensure contacts are in optimal condition and to maximise signal transmission.
The third change Atlas made was around the rifling of the RCA pin. This improvement self-aligns the conductors during the cold weld processing, ensuring a superior stable connection.
Finally, there is a reduction in the overall mass of the RCA plug by 8% which has shown to improve signal transmission.
The above changes mean a solder-free, low mass, self-cleaning, recyclable RCA plug with a non-conductive body.
Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008> | |
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables. Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE). PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product. The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) | Foamed Polyethylene (PEF) | Polypropylene (P.P) | Teflon (FEP or PTFE) | PTFE |
| Dielectric Constant (@ 50 -106Hz) | 4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) | 23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) | 8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) | 0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) | 1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) | 1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) | -130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) | 60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) | -15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
4 Core + Screen Construction
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
Specification :
- Construction : 4 core + screen
- Material : OFC
- Dielectric : PEF
- Screen : Braid OFC, 85%
- Capacitance : 83.34 pF/m
- Inductance : 0.512 µH/m
- Resistance : 0.0810 Ohms/m I
- Outside Diameter : 6.5mm
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction : 4 core + screen
- Material : OFC
- Dielectric : PEF
- Screen : Braid OFC, 85%
- Capacitance : 83.34 pF/m
- Inductance : 0.512 µH/m
- Resistance : 0.0810 Ohms/m I
- Outside Diameter : 6.5mm
