Atlas Element Achromatic X 1 RCA to 1 RCA Subwoofer Cable
Usage Guide
Amplifier
Subwoofer
Connection Guide
RCA Single
Our Hi-Fi specialists give free, honest advice — no commission, ever. Contact us by email or phone and we'll help you find the right cable for your system.
Item code: Element Achromatic X 1:1 Sub
Inc. VAT (20%) · Ex. VAT: £79.12 Ex. VAT · Inc. VAT (20%):
Lowest price in the last 30 days:
Request to Price Match
If you've seen a better offer for this product, we will endeavour to match it. The competing offer must be on brand-new boxed items, and in stock from another UK Online Authorised Retailer (excluding marketplaces). Price match quotations are valid for 7 days.
SPEAKER CABLES:
A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.
OTHER CABLES:
A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.
NON-CABLE PRODUCTS:
A quantity of 1 means you will receive 1 of the specified products.
Order before 4pm (Mon–Fri) for same-day dispatch
Atlas Element Achromatic X 1 RCA to 1 RCA Subwoofer Cable
Based on Atlas' multi-award-winning Element Integra Interconnect, the Element Subwoofer Integra utilises a shielded four-core construction providing excellent immunity to interference and noise, making it ideally suited to multi-source installations and the longer cable runs typically necessitated by optimum sub-woofer placement.
The Element Subwoofer Achromatic utilises four cores of high purity OFC conductors with in a twisted configuration with cross linked Polyethylene dielectric (insulation) for excellent immunity to external RFI (Radio Frequency Interference) and EMI (Electro Magnetic Interference), which can increase background noise levels and effectively decrease the dynamic range of your fhifi or home theatre system.
Features :
- Achromatic RCA Plugs
- OFC Conductors
- PEF Dielectric
- 4 Core + Screen Construction

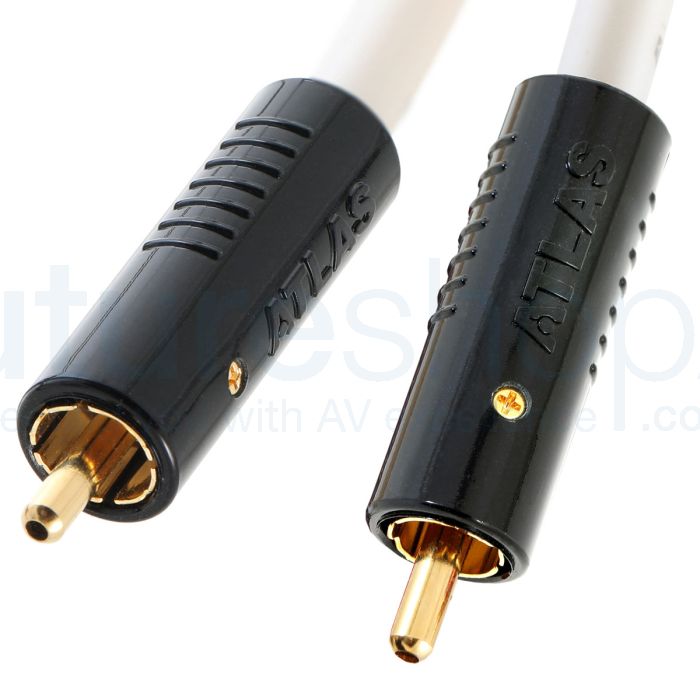

Achromatic Plugs
Atlas’s expert electro-mechanical knowledge has led to the innovation of the next generation of RCA plugs. Known as the ‘Atlas Achromatic RCA plug’, Atlas has focused on improving both performance and appearance to create a higher performance starting point for their RCA cables as well as eliminating variability in performance. This has been achieved by refocusing on materials and the assembly processes.
Atlas has made 4 key changes with the Achromatic RCA plug. Firstly, the barrel of the Achromatic plug features a high stability ABS material. This is strong, stable and of superlative surface quality.
There is also an improvement to the Achromatic plug’s contact geometry, aiding the contact properties of the plug and the self-cleaning wiping action to ensure contacts are in optimal condition and to maximise signal transmission.
The third change Atlas made was around the rifling of the RCA pin. This improvement self-aligns the conductors during the cold weld processing, ensuring a superior stable connection.
Finally, there is a reduction in the overall mass of the RCA plug by 8% which has shown to improve signal transmission.
The above changes mean a solder-free, low mass, self-cleaning, recyclable RCA plug with a non-conductive body.
Oxygen Free Copper (OFC)
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008> | |
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables. Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE). PEF (Foamed Polyethylene). The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product. The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) | Foamed Polyethylene (PEF) | Polypropylene (P.P) | Teflon (FEP or PTFE) | PTFE |
| Dielectric Constant (@ 50 -106Hz) | 4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) | 23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) | 8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) | 0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) | 1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) | 1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) | -130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) | 60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) | -15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
4 Core + Screen Construction
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
Specification
- Construction: Coaxial (1:1)
- Conductor: OFC (1:1)
- Dielectric: PEF
- Screen: Foil/OFC braid
- Capacitance: 79.59 pF/m
- Inductance: 1.602 µH/m
- Resistance: 1.344 Ohms/m
- Outside Diameter: 7.0 mm
- Colour/Finish: Pearl White
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
About Atlas Cables
Scottish cable maker that designs and builds its own conductors, connectors and cables rather than assembling bought-in parts.
Atlas researches, designs and produces its cables in Scotland, with a handful of exceptions. Many cable brands assemble off-the-shelf components, but Atlas specifies the conductors, insulation and terminations itself and tests the result in its own listening room. It offers a five-year guarantee on its cables.
Read more about Atlas Show less
The plugs are Atlas designs too
Atlas designs its own RCA plugs. The Achromatic and Ultra RCAs are built for low mass and high bandwidth, and the newer Metik connectors were developed for personal audio. Designing the connectors in house means Atlas is not limited to what an outside supplier already sells.
Three performance levels, with named ranges in each
The catalogue is arranged in three performance levels. Upgrade covers Element and Equator, Aspire covers Hyper and Ailsa, and High End covers Mavros, Arran, Eos and Zeno. You can choose the level that suits the rest of your system, then move up later without changing brand.
Custom options and a repair service
Atlas lists luxe and speaker termination options, so you can specify a cable to suit the equipment at each end. It also repairs, customises and upgrades its cables through a dedicated service, which means you can bring an older cable up to date instead of replacing it.
Why we stock Atlas
Atlas run pure copper conductors through most of the range rather than silver or silver plating. That gives a warmer, more forgiving balance than the silver-plated cables we sell. If your system is already leaning bright, Atlas is usually where we point you first. Hand-built in Scotland, and we have sold them since 2008.
Specification
- Construction: Coaxial (1:1)
- Conductor: OFC (1:1)
- Dielectric: PEF
- Screen: Foil/OFC braid
- Capacitance: 79.59 pF/m
- Inductance: 1.602 µH/m
- Resistance: 1.344 Ohms/m
- Outside Diameter: 7.0 mm
- Colour/Finish: Pearl White
