Atlas Element (Basic) 1.25 White Speaker Cable - Custom Length

£3.41 £2.84
SKU
Atlas Element 1.25 White
Atlas Element (Basic) 1.25 White Speaker Cable - Custom Length 1 5 5 1
5 Years
New
what's this?

If you want Future Shop to terminate your speaker cable with our special range of plugs, select Banana/BFA/Z-Plug or Spade plugs from the drop-down menu. We offer a wide range of options on how our highly trained and experienced engineers can fit the plugs to your selected cable. If an option is not available for your requirements, please call us on 0800 772 3688 or 0208 905 1555. All cables are tested for signal integrity before shipping.

what's this?

If you want Future Shop to terminate your speaker cable with our special range of plugs, select Banana/BFA/Z-Plug or Spade plugs from the drop-down menu. We offer a wide range of options on how our highly trained and experienced engineers can fit the plugs to your selected cable. If an option is not available for your requirements, please call us on 0800 772 3688 or 0208 905 1555. All cables are tested for signal integrity before shipping

what's this?

Select the desired length for your cable from the drop-down menu.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The Atlas Element 1.25 Basic is well suited as an upgrade for high quality compact systems or for rear channel speakers in a 5.1 set-up.

Atlas Element (Basic) 1.25 White Speaker Cable - Custom Length



The Atlas Element 1.25 Basic is well suited as an upgrade for high quality compact systems or for rear channel speakers in a 5.1 set-up.

The Atlas Element 1.25 contains 1.25mm² of stranded OFC (Oxygen Free Copper) contained in a high density polyethylene dielectric (insulation layer), unusual at this price point where PVC is much more common. Low quality dielectrics such as PVC typically degrade the music signal by imposing a characteristic blurring on the sound.



Features :

  • Atlas Z-Plugs
  • OFC Conductors
  • PEF Dielectric
  • Multi-Core Construction


Atlas Z-Plugs

Atlas' proprietary Z-plug is a low-mass, self-cleaning, solder-free construction speaker plug.

Atlas Z-Plug Technical Diagram


Oxygen Free Copper (OFC)

OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.

Copper Purity Comparison (0.3mm Diameter)
  TPC OFC OCC
Purity >99.9% >99.99% >99.999%
Specific Gravity 8.75 8.926 8.938
Gas Impurities (ppm)
O2 200~500 <10 <5
H2 <0.5 <0.5 <0.3
Average Crystal Size (Metre) 0.007 0.02 125.00
Crystals Per Metre 150 50 0.008



PEF Dielectric

PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.

Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).

HDPE (High Density Polyethylene) has a more close-packed structure compared to its more flexible cousin LDPE (Low Density PE) and excels in its durability.

The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.

Dielectric Material Comparison (0.3mm Diameter)
Property Polyvinyl Chloride
(PVC)
Foamed Polyethylene
(PEF)
Polypropylene
(P.P)
Teflon
(FEP or PTFE)
PTFE
Dielectric Constant
(@ 50 -106Hz)
4-8 2.3 2.25 2.1 1.3
Dielectric Strength
(kV mm-1)
23-30 30-50 30-50 20-25 N/A
Loss Tangent
(% @ 50 - 106Hz)
8-15 0.02-0.05 0.02-0.06
(@ 106Hz)
0.02-0.07 N/A
Volume Resistivity
(Ohms.cm @ 20°C)
1012-15 >1017 6.5x1014 >1016 N/A
Tensile Strength
(Kg mm-2)
1.0-2.5 1.0-2.0 3.0-4.0 1.9-2.2 1.0
Melting Point
(°C)
-130 112-120 155-160 275 275
Max. Continuous Operating Temp.
(°C)
60 75 90 200 260
Min. Operating Temp.
(°C)
-15 to -40 <-60 -5 to -45 <-60 -250


Multi-Core Construction

A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.


Specification :

  • Construction : Multi-core
  • Material : 6n OFC
  • Dielectric : High Density PEF (Polyethylene)
  • Capacitance : 34.25 pF/m
  • Inductance : 0.65mH/M
  • Resistance : 0.0142Ohms/m
  • VOP : 0.761
  • Outside Diameter : 2.5 x 5.00mm

Termination

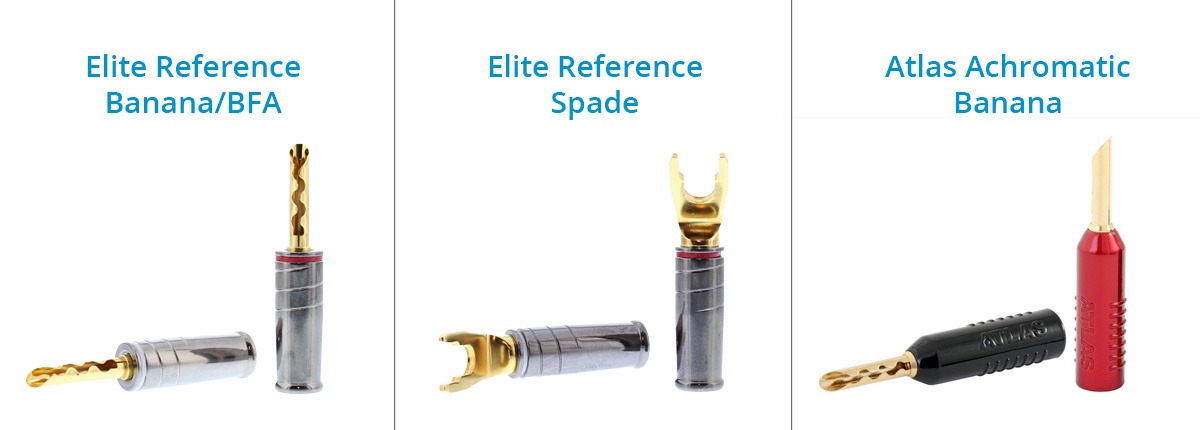

We can terminate your speaker cable using either Atlas’ gold-plated 4mm banana/BFA Z-Plugs or spade Plugs. Cables are professionally terminated using a cold-weld method by Future Shop's engineers and guaranteed for 10 years. The plugs are put on using a cold weld method with an official tool supplied by Atlas. Cold-welding does not involve solder and means the plug is crimped around the conductors at 360 degrees' under very high pressure to form an air tight seal which prevents the conductors from oxidising. This forms a better contact than soldering. Furthermore, the conductor is in full contact with the plug, and the plug is in 360-degree contact with the binding post of your equipment which means signal flow is maximised from the cable into your equipment.

How to Order

From the dropdown menus' above, simply select the length of cable, the type of plugs required at the ‘Amplifier end’ and ‘Speaker end’ and click on the 'Add to Basket' button to add the item to your basket. Your cable will be dispatched as soon as it has been made by Future Shop's or the manufacturer’s engineers and has completed the specified burn-in process (if any), subject to Future Shop’s Terms & Conditions and stock availability.

About Atlas Cables Made in United Kingdom

Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.

Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.

Specification :

  • Construction : Multi-core
  • Material : 6n OFC
  • Dielectric : High Density PEF (Polyethylene)
  • Capacitance : 34.25 pF/m
  • Inductance : 0.65mH/M
  • Resistance : 0.0142Ohms/m
  • VOP : 0.761
  • Outside Diameter : 2.5 x 5.00mm
