Atlas Equator 2.0 Speaker Cable - 1.5m Pair - Banana to Banana Ex Demo

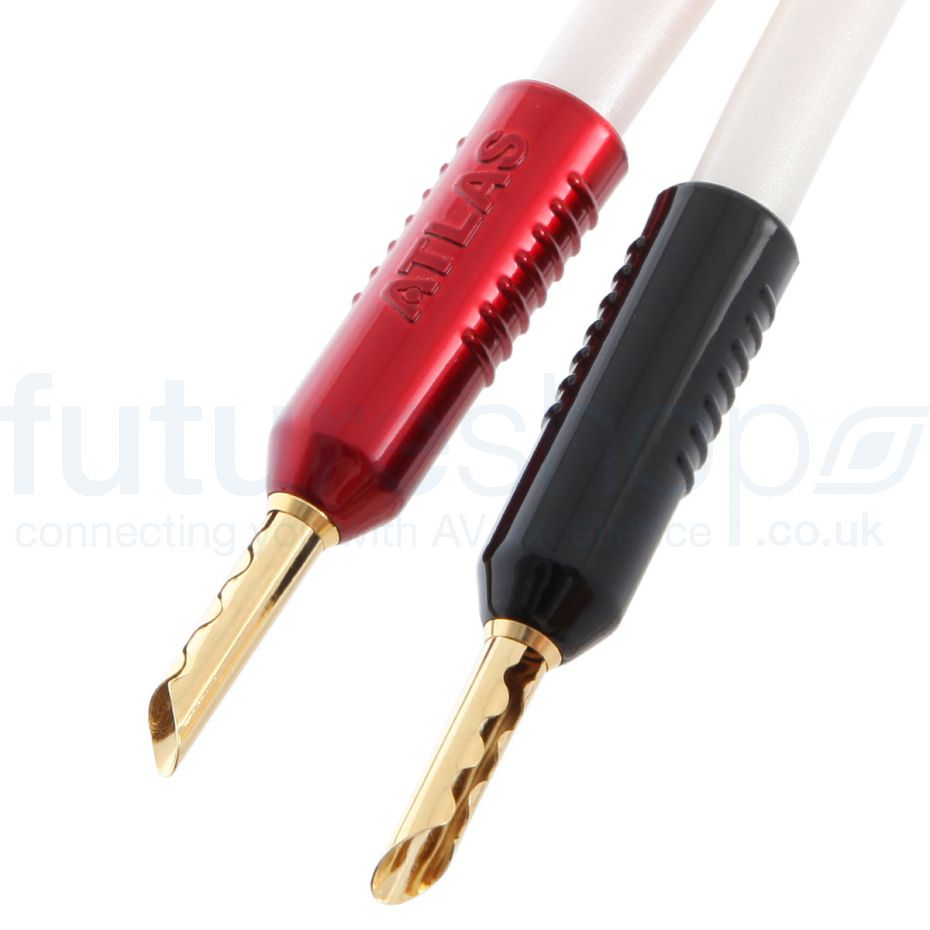

Please note: this speaker cable is terminated with 2 Atlas Achromatic Z-Plugs to 4 Atlas Achromatic Z-Plugs. The cable is in mint condition and was only used once for a demo.
Revive your mid-level or ageing audio system with the Atlas Equator 2.0 Speaker Cable, designed to deliver neutral sound without exaggerated treble details often found in cables at this price range. With a 2mm² core made of Oxygen-Free Copper (OFC), this cable ensures efficient signal transmission. It's enveloped in a high-density PEF dielectric, outclassing traditional PVC or polyethylene insulators for greater dynamics and measurable performance enhancements. Wrapped in a cotton yarn to minimise microphony and encased in a chic pearl white finish, the Atlas Equator 2.0 is not just a cable but a comprehensive upgrade for your audio system.
What Atlas say
Atlas Equator 2.0 Speaker Cable offers an essentially neutral performance with none of the exaggerated treble detail frequently found at this price point.
Atlas Equator 2.0 is a 2mm² cable using OFC (Oxygen Free Copper) conductors in a high-density PEF dielectric (insulation layer) far more efficient than PVC or polyethylene. The superior dielectric offers both a better-measured performance and an audible improvement in dynamics. The core assemblies are contained in a cotton yarn to reduce microphone, and the outer sheath is in a pearl white finish.
Features :
- Choice of Atlas Gold Plated Z Plugs or Achromatic Z Plugs
- OFC Conductors
- PEF Dielectric
- Multi-Core Construction
- Professionally Terminated by Future Shop Engineers
Atlas Gold Plated Z Plugs
The Atlas Z plug has stood the test of time. Using beryllium copper for the contact area, It's designed to make a 100% contact within the 4mm female socket. The body is made from copper and it's available for home assembly with grub screws to make contact with the conductors. When factory-fitted or fitted by an Atlas-appointed custom cable centre, they're cold welded under pressure to amalgamate the conductors to the plug in an air-tight seal. The outer sleeve is finished in black coloured ABS or in a turned brass with a fine oven-applied powder coat finish. The Atlas Z plug is justifiably considered to be one of the best 4mm plugs available.
- Low resistance
- High conductivity
- 80% copper with beryllium 4mm section, giving 100% contact
- Corrosion resistant
- Accepts conductors up to 5mm in diameter
- Solder-free for a cold weld air-tight interface between the plug and conductor or grub screw contact for DIY enthusiasts.
Atlas Achromatic Z Plugs
Atlas’s expert electro-mechanical knowledge has led to the innovation of the next generation of banana plugs known as the ‘Atlas Achromatic Z Plug’, Atlas has focused on improving performance to create a higher performance starting point for their speaker cables as well as eliminating variability in performance. This has been achieved by refocusing on materials and the assembly processes.
Atlas has made 4 key changes with the Achromatic Z plug. Firstly, the barrel of the Achromatic Z plug features a high stability ABS material. This is strong, stable and of superlative surface quality.
In addition, there is also an improvement to the plug's contact resistance achieved by improving the compliance of the beryllium copper contact leaves featured on the Achromatic Z plug. Beryllium copper offers excellent conductivity of signals.
The third change was to upgrade the manufacturability of the plug for pneumatic tool processing.
Finally, there is a reduction in the overall mass of the Z-Plug by 35% which has shown to improve signal transmission.
The above changes mean a solder-free, low mass, self-cleaning, recyclable Z-plug with a non-conductive body.
Oxygen Free Copper (OFC)<
OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.
| Copper Purity Comparison (0.3mm Diameter) | ||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
PEF Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
The foaming process uses a blowing agent, of which there are two types. Atlas use the gas-foamed method which creates a more inert, consistent and higher quality product.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Multi-Core Construction
A pair of identically matched conductors (one for signal path, the other acts as the return conductor) enclosed within a non-conducting screen.
|
|
|
"For £7.25 per metre, you get a length of cable that’s nicely made: it’s sturdy and flexible enough to bend around tricky corners... As the tune bops merrily along, the edges of notes are neatly delivered, with a clean treble that has plenty of impact but still sounds smooth. Make sure you run the cable in for a night or two to get rid of some initial spikiness... If you think your budget/midrange hi-fi system could do with a sonic spring clean, but not sure what needs upgrading (and don’t want to spend too much), plug these Atlas speaker cables in. You might find it’s just what your system needs." (Read More) What Hi-Fi? - November 2018 |
|
|
|
"The first thing that hits you about the Equator 2.0 (besides its tactile and silky-smooth outer jacket) is the way it allows an impressive sense of weight nad power to music." What Hi-Fi? - 14th February 2014 (Read More) |
Specification :
- Construction : Multi-core
- Material : OFC
- Dielectric : PEF
- Capacitance : 70.51 pF/m
- Inductance : 0.816 µH/m
- Resistance : 0.0094 Ohms/m
- VOP : 0.73
- Outside Diameter : 8.5mm

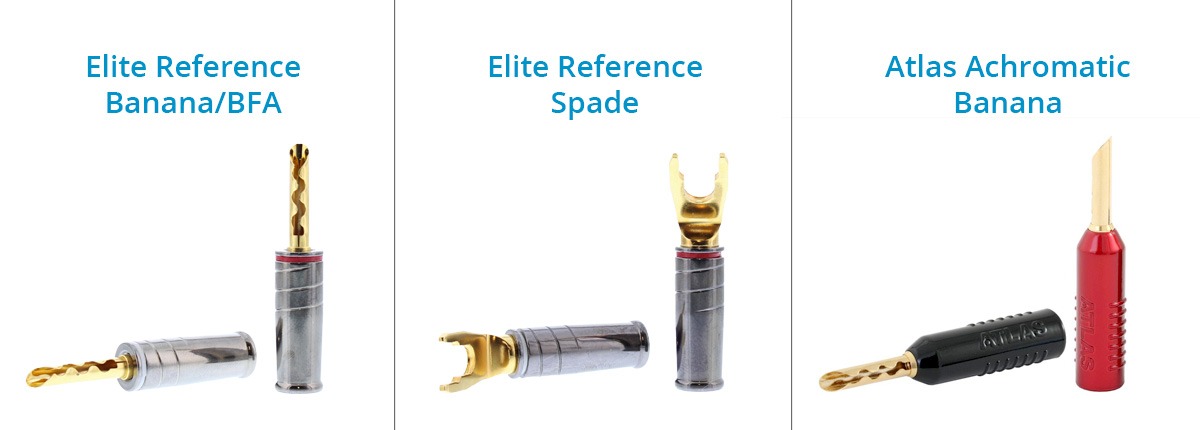

Elite Reference Series Plugs: Next-Level Audio Connectivity
The Elite Reference AirTite plugs offer significant advantages over traditional screw-based speaker cable plugs. Unlike screw designs, which may loosen over time and potentially impact the connection and sound quality, the Elite Reference plugs use a cold-weld method to create a secure and reliable bond between the cable and the plug. This helps maintain consistent performance and minimises signal loss, supporting clear and high-quality audio. With a ferrule-free design for direct signal transfer, beryllium copper cores, and 24K gold plating, they are engineered for enhanced conductivity and long-lasting durability. The addition of protective metal barrels further reinforces their professional-grade construction, making them an excellent choice for those who value dependable audio connections.
The Elite Reference plugs are engineered with additional advantages that make them stand out:
- AirTite Ferrule-Free Design - Unlike traditional plugs that use ferrules, the Elite Reference plugs opt for direct conductor-to-plug contact, removing any potential barriers to signal transfer. Featuring four different inlet sizes, these plugs are perfectly tailored to fit various cable gauges with a cold-weld, air-tight design, that eliminates soldering, reduces resistance, prevents oxidation, and enhances durability.

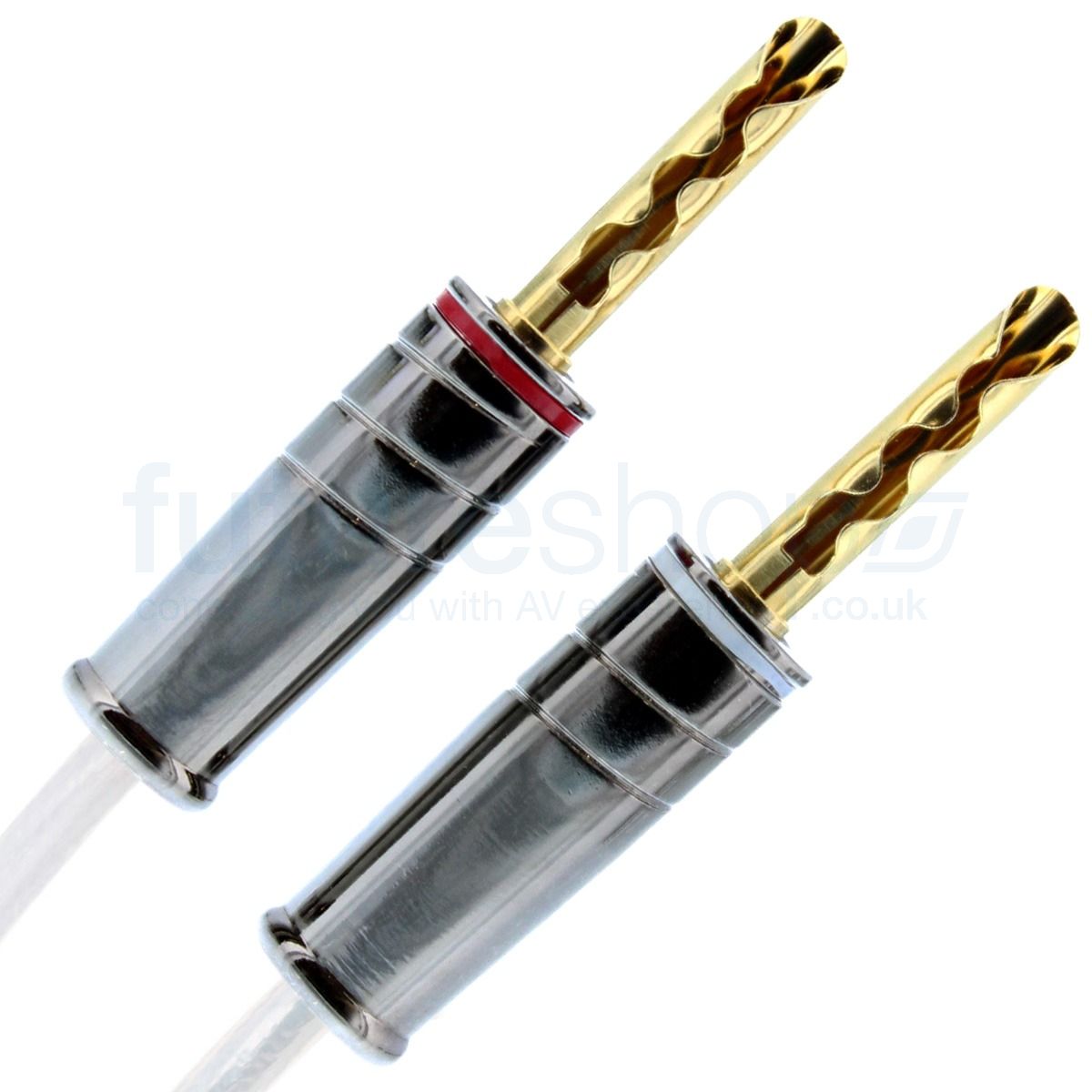

- Beryllium Copper Core with 24K Gold Plating - The banana plugs feature a beryllium copper core, known for its exceptional mechanical strength and conductivity. This material resists corrosion and retains its shape, maintaining a tight and reliable connection over time. The 24K gold plating ensures a smooth, high-quality signal path while adding durability for years of consistent performance.
- Dual Functionality - Designed as BFA and banana plug compatible the Elite Reference banana plugs provide greater versatility, making them suitable for a broader range of speaker terminals. This added functionality ensures compatibility with high-end Hi-Fi setups and equipment.

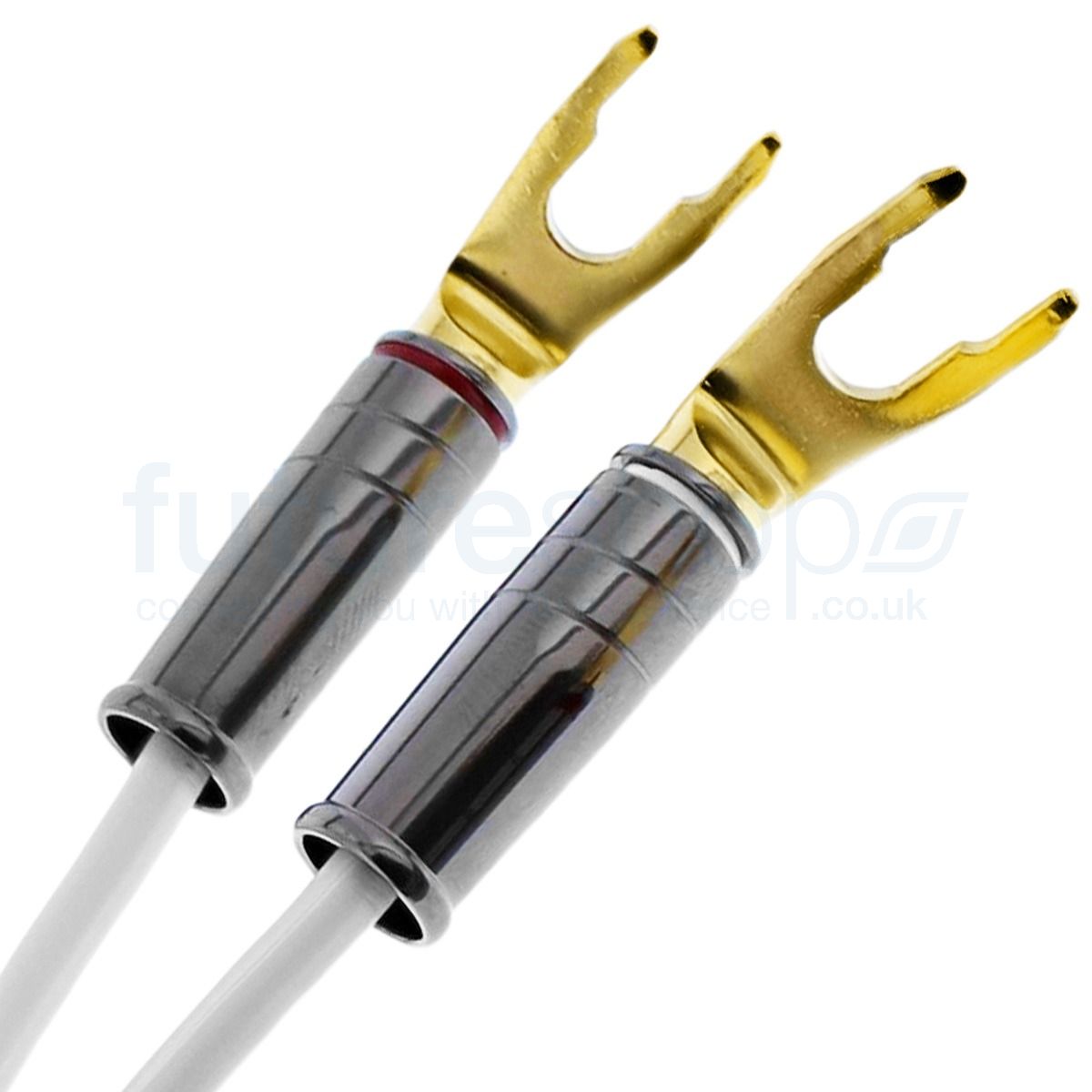

- Silver Core Spade Plugs with Metal Barrel Protection - The spade plugs in the Elite Reference Series incorporate a silver base plated with 24K gold, offering superior conductivity compared to many alternatives. Unlike other spade plugs, the Elite Reference spades also include a durable metal outer barrel, providing additional protection and a premium finish.
- The Elite Reference plugs are manufactured in Taiwan, a region renowned for its precision engineering and high-quality manufacturing standards. This ensures that every plug is built to exact specifications, offering exceptional consistency, reliability, and performance.
How to Order
Ordering your cable from Future Shop is simple. Follow these simple steps to customise and secure your purchase:
- Length Selection: Begin by selecting the desired length of your cable from the dropdown menu provided. Choose the appropriate measurement that suits your specific setup requirements.
- Plug Selection: Next, specify the type of plugs you need for both the 'Amplifier end' and the 'Speaker end' of the cable. Select the plugs that best match your equipment and connectivity preferences from the dropdown menus.
- Burn-In Time: If you prefer your cable to undergo a burn-in process for optimal performance, indicate the desired duration from the dropdown menu. Unless otherwise specified, all cables are pre-burnt in for 96 hours.
- Add to Basket: Once you have made all the necessary selections, click on the 'Add to Basket' button. This action adds your customised cable to your shopping basket, bringing you one step closer to completing your order.
- Dispatch and Delivery: After placing your order, Future Shop or the manufacturer's engineers will promptly manufacture your cable according to your specifications. It will then undergo the specified burn-in process if chosen.
Once these processes are complete and subject to Future Shop's Terms & Conditions and stock availability, your cable will be dispatched for delivery.
Please remember that the dispatch time may vary depending on the complexity of your custom cable and the stock availability. Future Shop is committed to ensuring a smooth ordering process and providing you with high-quality products that meet your audio needs.
About Atlas Cables
Atlas Cables, a distinguished company headquartered in Scotland, embodies engineering excellence, showcasing an unwavering commitment to research, development, and quality manufacturing. The company's foundational ethos is rooted in an unyielding love for music, from which stems its innovative approach to designing and crafting audio cables and accessories.
What sets Atlas Cables apart from many other brands, often called 'assemblers,' is their control over the entire creation process. While many competitors settle for assembling products from 'off the shelf' components, Atlas delves deeper, ensuring that each element of their products - from core conductors to insulating materials and terminations - is precisely tailored to meet or exceed performance specifications. This control translates to consistency in assembly and a robust quality control system backed by a five-year guarantee.
Manufacturing primarily in Scotland, a region known for its longstanding tradition of engineering brilliance, Atlas Cables takes pride in building products unique to its brand. Their approach circumvents reliance on pre-existing components and instead focuses on original thinking and total control. This philosophy has led to the development of groundbreaking technologies like the low-mass/high-bandwidth Achromatic & Ultra RCA plugs and the more recent Metik connectors tailored for the personal audio market.
Atlas Cables' comprehensive in-house capabilities encompass everything from CAD concept drawings to listening room tests, ensuring synergy across their entire product range. This ability to innovate, paired with rigorous testing and attentive listening, is more than a business strategy; it's the company's unique 'DNA,' ensuring that every product reflects the love of music that fuels the brand.
In a market where others may settle for assembling existing parts, Atlas Cables continues to push boundaries, seeking better ways to design and build their products. Their insistence on originality and excellence allows them to offer advanced technology remarkably cost-effectively. The final result? A portfolio of cables, plugs, and accessories you'll not find elsewhere is truly unique to Atlas, reflecting a profound connection between engineering excellence and the deep love of music that inspired it all.
Specification :
- Construction : Multi-core
- Material : OFC
- Dielectric : PEF
- Capacitance : 70.51 pF/m
- Inductance : 0.816 µH/m
- Resistance : 0.0094 Ohms/m
- VOP : 0.73
- Outside Diameter : 8.5mm
