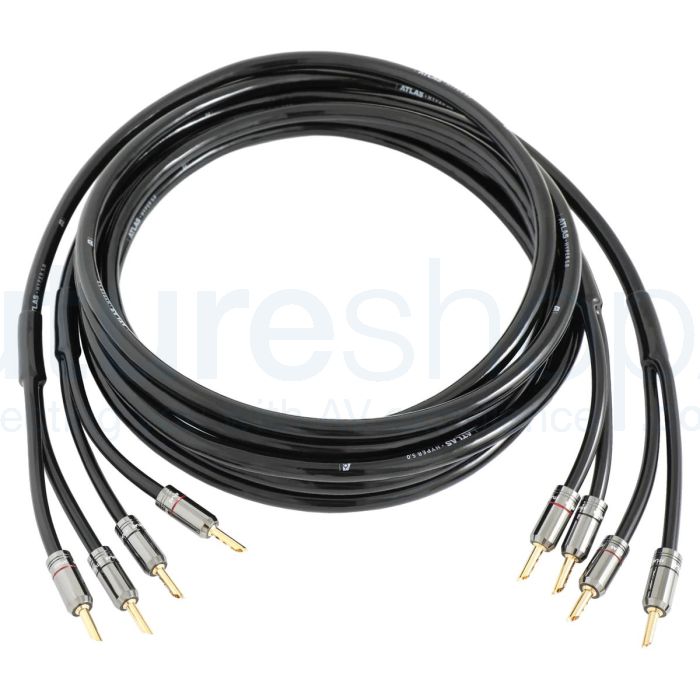

Atlas Hyper 5.0 R1 Speaker Cable - Factory Terminated

Atlas Hyper 5.0 R1 Speaker Cable - Factory Terminated

The Atlas Hyper 5.0 R1 Speaker Cable takes the Hyper 3.5 design and increases the conductor size to 5.0mm². Its twin high-purity OFC conductors are wrapped in a cotton anti-vibration filler and an FEP dielectric, and the extra copper brings a step up in overall performance, with bass that is more accurate and better controlled.

Atlas describe it as the long-wheelbase version of Hyper 3.5, and it is particularly well suited to longer cable runs, so it is the one to look at if your speakers sit some distance from the amplifier. Atlas terminate it with their Systematic plugs, fitted by a precision-calibrated cold-weld crimp rather than solder, so the signal passes through fewer changes of material on its way to the speaker.

Choose Achromatic Z-plugs or OFC spades separately for the amplifier end and the speaker end, in lengths from 2m to 10m. Each cable is sold singly, so please enter a quantity of 2 for a stereo pair. Burn-in is available from the Burn-In menu, and Atlas cover the cable with their 5-year guarantee.

What Atlas say about the Hyper Speaker 5.0 R1

Based on our acclaimed Hyper 3.5 but with an increased conductor diameter improving performance capability. Available terminated in Z (Z-plug) or S (spade) versions.

Perhaps best considered the ‘long-wheelbase’ version of our Hyper 3.5, offering a step-up in overall performance with improved bass accuracy and control. Hyper Achromatic Speaker Z 5.0 is particularly well-suited for use in longer cable runs.

The quality of the twin 5.0mm² OFC copper conductors, wrapped in a cotton anti-vibration filler and high-efficiency FEP dielectric allow Hyper to reveal more of the performance level of which your equipment is capable.

Our robust Systematic plugs with precision-calibrated cold-weld termination give a superior connection to conventional solder fixing, with increased signal continuity because of fewer ‘barriers’ created by different materials.

OFC spades are available as a factory termination option.

Features:

• Technology: Systematic plugs
• Engineered: Cold-Weld Precision Crimp
• Performance: Aspire level
• Essentials: Atlas ‘Essential Elements’

Achromatic Z-Plugs

Factory-terminated Achromatic speaker cables feature our cold-weld precision crimp Z-plug, which is also an option for cables assembled to order by our international distributors and dealers, who are equipped with our proprietary tools and factory-trained in their use.

The construction and finishing of our Achromatic plugs is also vital to their performance.

Plug pins and contacts are necessarily gold or silver-plated* to prevent oxidisation, which affects performance, and visible tarnishing. The priority is to minimise contact resistance, which is critical to consistent performance.

* Silver is a more efficient conductor than gold, but is both more expensive and prone to tarnishing.

The body of the Atlas Achromatic connectors is a low-mass, non-conductive (and recyclable) ABS design.

While ‘hifi jewellery’ metal plugs may be visually impressive, typically their mass almost certainly has an adverse effect on the delicate audio signal.

Termination Options

Achromatic Z-Plug or Spade termination available.

Cold-Weld Precision-Calibrated Crimp

We firmly believe there should be the minimum of ‘breaks & barriers’ in the signal path. To this end for example, the pins on our connector plugs will typically be of the same material as the cable conductor, ie. a cable using a OCC Copper conductor will have OCC Copper signal pins.

We consider a precision-calibrated cold-weld connection (where physically possible) to be superior to soldered joints or screw connections. Solder typically introduces an unwanted material barrier and a degree of inconsistency. Screw terminations typically distort/damage the conductor and/or dielectric, adversely affecting the measured characteristics of the cable.

In a cold-weld (solder-free) connection, the metal of the connector plug and the wire are squeezed together under a calibrated pressure to form a robust, consistent, air-tight metal to metal contact with no deformation of the cable dielectric. The result is a smooth, uninterrupted signal path which behaves as closely as possible to one continuous entity.

Oxygen Free Copper (OFC)

OFC is produced through an extrusion process which takes place in an oxygen-free-inert-gas atmosphere. This leads to a reduced oxygen content (10 ppm) when compared to Tough Pitch Copper (TPC) and an improvement in conductivity which typically measures in at between 0.5% and 2% greater than TPC. The OFC process therefore produces a much higher quality audio cable than the TPC process. High purity conductors sound clearer than their unprocessed (TPC) counterparts because there are fewer crystal boundaries present to cause signal degradation.

FEP Dielectric

PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in audio cables. However, PVC is the worst quality insulation a Hi-Fi system can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in all high quality audio systems.

Other dielectrics in common use are Polyethylene, foamed Polypropylene (PEF) and Fluorinated ethylene propylene (FEP) and the new and unique Atlas microporous PTFE.

PTFE has a high melting point (327°C): at the high temperatures involved, OFC and OCC revert back to the high-grain tough pitch state, destroying the integrity of the low grain or mono-crystal structures. But, over the last few years, Atlas has been researching ways of coating processed copper with PTFE, without the deleterious effects detailed above. Finally, after a great deal of research, we can now coat processed copper with a type of PTFE called Fluorinated Ethylene Propylene (FEP), melting point 275°C, by cooling the copper during coating.

FEP allows the user to gain from the lower losses associated with this dielectric while still enjoying the benefits of low grain copper conductors.

The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.

About Atlas Cables

Atlas Cables, a distinguished company headquartered in Scotland, embodies engineering excellence, showcasing an unwavering commitment to research, development, and quality manufacturing. The company's foundational ethos is rooted in an unyielding love for music, from which stems its innovative approach to designing and crafting audio cables and accessories.

What sets Atlas Cables apart from many other brands, often called 'assemblers,' is their control over the entire creation process. While many competitors settle for assembling products from 'off the shelf' components, Atlas delves deeper, ensuring that each element of their products - from core conductors to insulating materials and terminations - is precisely tailored to meet or exceed performance specifications. This control translates to consistency in assembly and a robust quality control system backed by a five-year guarantee.

Manufacturing primarily in Scotland, a region known for its longstanding tradition of engineering brilliance, Atlas Cables takes pride in building products unique to its brand. Their approach circumvents reliance on pre-existing components and instead focuses on original thinking and total control. This philosophy has led to the development of groundbreaking technologies like the low-mass/high-bandwidth Achromatic & Ultra RCA plugs and the more recent Metik connectors tailored for the personal audio market.

Atlas Cables' comprehensive in-house capabilities encompass everything from CAD concept drawings to listening room tests, ensuring synergy across their entire product range. This ability to innovate, paired with rigorous testing and attentive listening, is more than a business strategy; it's the company's unique 'DNA,' ensuring that every product reflects the love of music that fuels the brand.

In a market where others may settle for assembling existing parts, Atlas Cables continues to push boundaries, seeking better ways to design and build their products. Their insistence on originality and excellence allows them to offer advanced technology remarkably cost-effectively. The final result? A portfolio of cables, plugs, and accessories you'll not find elsewhere is truly unique to Atlas, reflecting a profound connection between engineering excellence and the deep love of music that inspired it all.

Specifications
