Atlas Hyper Achromatic Turntable Audio Cable
As low as £337.50 £281.25
SKU
Hyper Achromatic Turntable
5 Years
New
3 - 5 Days
Hyper Achromatic Tonearm uses an OCC (Ohno Continous Casting) high purity copper conductor with foamed Polyethylene dielectric, combining to offer a sophisticated, evenly balanced sound which draws you into the musical performance.
Atlas Hyper Achromatic Turntable Audio Cable
Hyper Achromatic Tonearm uses an OCC (Ohno Continous Casting) high purity copper conductor with foamed Polyethylene dielectric, combining to offer a sophisticated, evenly balanced sound which draws you into the musical performance.

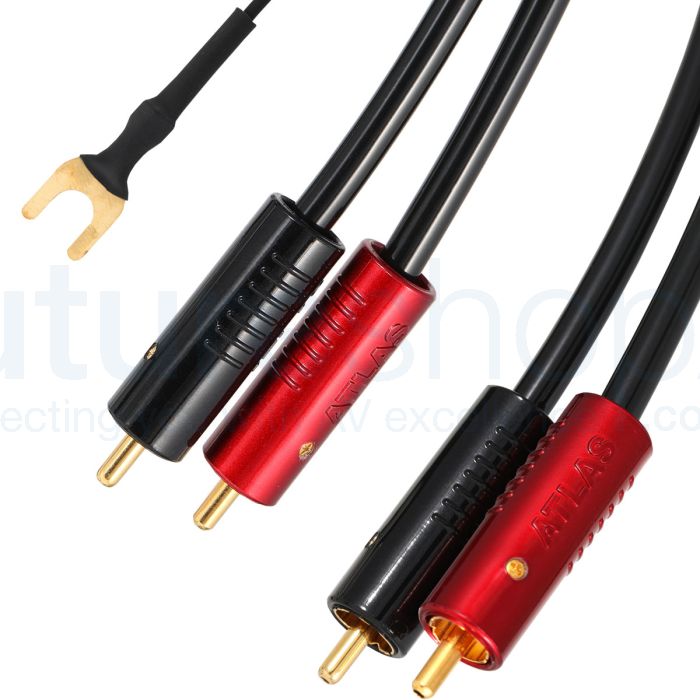

The cable is fitted with Atlas' self-cleaning (just remove and insert it to clean the contact areas) Achromatic RCA plug and integrated spade earth tag. The low-mass Achromatic connector features a solder-free, cold-weld connection, optimised to create a coherent, continuous signal path.
Features:
- Achromatic RCA Plugs
- OCC Conductors
- FEP Dielectric
- Twin Co-ax Construction
Achromatic Plugs
Atlas’s expert electro-mechanical knowledge has led to the innovation of the next generation of RCA plugs. Known as the ‘Atlas Achromatic RCA plug’, Atlas has focused on improving both performance and appearance to create a higher performance starting point for their RCA cables as well as eliminating variability in performance. This has been achieved by refocusing on materials and the assembly processes.
Atlas has made 4 key changes with the Achromatic RCA plug. Firstly, the barrel of the Achromatic plug features a high stability ABS material. This is strong, stable and of superlative surface quality.
There is also an improvement to the Achromatic plug’s contact geometry, aiding the contact properties of the plug and the self-cleaning wiping action to ensure contacts are in optimal condition and to maximise signal transmission.
The third change Atlas made was around the rifling of the RCA pin. This improvement self-aligns the conductors during the cold weld processing, ensuring a superior stable connection.
Finally, there is a reduction in the overall mass of the RCA plug by 8% which has shown to improve signal transmission.
The above changes mean a solder-free, low mass, self-cleaning, recyclable RCA plug with a non-conductive body.
OCC Copper
The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor''s length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long! The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment.
|
Copper Purity Comparison (0.3mm Diameter) |
||||
| TPC | OFC | OCC | ||
| Purity | >99.9% | >99.99% | >99.999% | |
| Specific Gravity | 8.75 | 8.926 | 8.938 | |
| Gas Impurities (ppm) | ||||
| O2 | 200~500 | <10 | <5 | |
| H2 | <0.5 | <0.5 | <0.3 | |
| Average Crystal Size (Metre) | 0.007 | 0.02 | 125.00 | |
| Crystals Per Metre | 150 | 50 | 0.008 | |
FEP Dielectric
PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.
Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).
FEP (Fluorinated Ethylene Propylene) has a big advantage over PTFE in that it can be applied to sophisticated conductors at lower temperatures, preserving the integrity of the base material.
The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.
| Dielectric Material Comparison (0.3mm Diameter) | |||||
| Property | Polyvinyl Chloride (PVC) |
Foamed Polyethylene (PEF) |
Polypropylene (P.P) |
Teflon (FEP or PTFE) |
PTFE |
| Dielectric Constant (@ 50 -106Hz) |
4-8 | 2.3 | 2.25 | 2.1 | 1.3 |
| Dielectric Strength (kV mm-1) |
23-30 | 30-50 | 30-50 | 20-25 | N/A |
| Loss Tangent (% @ 50 - 106Hz) |
8-15 | 0.02-0.05 | 0.02-0.06 (@ 106Hz) |
0.02-0.07 | N/A |
| Volume Resistivity (Ohms.cm @ 20°C) |
1012-15 | >1017 | 6.5x1014 | >1016 | N/A |
| Tensile Strength (Kg mm-2) |
1.0-2.5 | 1.0-2.0 | 3.0-4.0 | 1.9-2.2 | 1.0 |
| Melting Point (°C) |
-130 | 112-120 | 155-160 | 275 | 275 |
| Max. Continuous Operating Temp. (°C) |
60 | 75 | 90 | 200 | 260 |
| Min. Operating Temp. (°C) |
-15 to -40 | <-60 | -5 to -45 | <-60 | -250 |
Co-ax construction
Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.
Specification :
- Construction: Twin Coax>
- Material: OCC Copper
- Dielectric: FEP
- Screen: OFC, 95% (double OFC braid)
- Capicitance: 121.95 pF/m
- Inductance: 0.542 µH/m
- Resistance: 0.0239 Ohms/m
- Outside Diameter: 5mm
- 5 Year Warranty
About Atlas Cables
Atlas Cables are a major producer of interconnects and cables in the United Kingdom of Great Britain. All products are researched, developed and most are assembled in the Atlas purpose built factory in Scotland.
Many of these products are unique and use advanced techniques of production or manufacture in order to bring to the user the very finest quality products. With each new model we continue to push the boundaries of reliability and performance. It's little wonder then, that Atlas Cables have had so many mile-stone advances in the past and that Atlas Cables have secured so many awards in comparative tests against other products.
Specification :
- Construction: Twin Coax>
- Material: OCC Copper
- Dielectric: FEP
- Screen: OFC, 95% (double OFC braid)
- Capicitance: 121.95 pF/m
- Inductance: 0.542 µH/m
- Resistance: 0.0239 Ohms/m
- Outside Diameter: 5mm
- 5 Year Warranty
