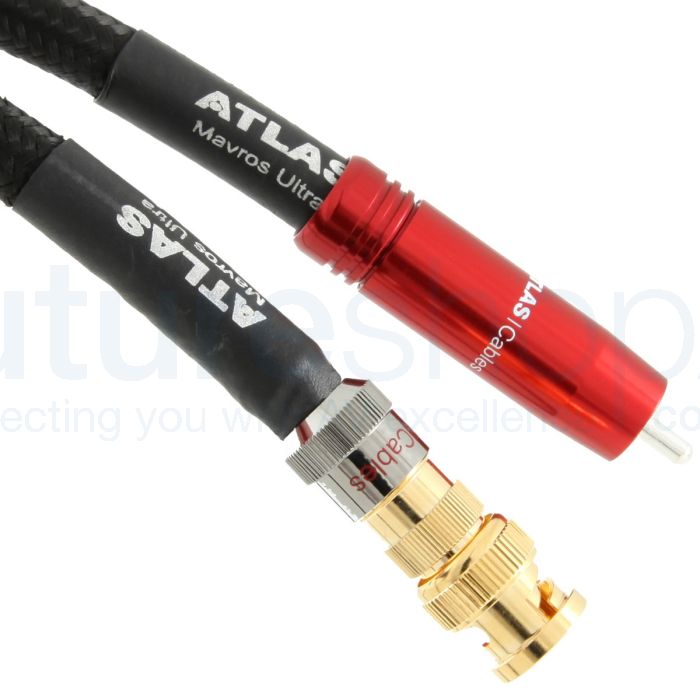

Atlas Mavros DD BNC S/PDIF Digital Audio Cable

Atlas Mavros DD BNC S/PDIF Digital Audio Cable



Atlas' new iteration of the Mavros Digital Audio Cable improves on previous models by using Ohno Continuous Cast Copper and incorporating their Dual Drain technology. These improvements deliver accuracy, bandwidth and openness over and above the previous Atlas Mavros BNC Digital Audio cable.

Atlas' finest wide bandwidth S/PDIF cable, designed to be technically and sonically superior, without the typical noise-related ‘glare’ freqently found in inferior cables. Recommended for use whenever signal integrity is paramount, for example between digital transport and DAC.

The Mavros BNC cable is engineered as a cable with extremely precise transmission and termination standards, incorporating the same microporous PTFE (Teflon™) dielectric insulation as the other Mavros interconnects. The centre conductor is comprised of a monofilament conductor and 18 strands of super pure copper wire insulated by a thin layer of microporous PTFE. This new dielectric behaves almost like the theoretically perfect insulator –free air – with minimal effect upon the signal being transmitted. The previous highest performance insulator, solid PTFE, has a dielectric constant of around 2.1 whilst the new PTFE (Teflon™) foam improves this figure to around 1.5, providing for a 30% greater signal velocity and better signal integrity, particularly in the area of high frequency timing and stability.

The co-axial double shielding layers are an aluminium Mylar™ foil followed by OFC (Oxygen Free Copper) braiding after which the whole cable is protected by a PVC jacket damped with cotton yarn. With a termination impedance of almost exactly 75 Ohms at 1 MHz and a low conductor-to-conductor capacitance of around 50 pF per meter the Mavros BNC interconnect perfectly matches consumer digital audio equipment to ensure error-free transmission of high speed digital signals.

The result is evident in the timing and dynamic range of musical performances where the temporal ‘smearing’ of lesser cables is absent.



Features :

• Atlas BNC Plugs
• Ultra RCA Plugs
• OCC Copper Conductors
• PTFE Dielectric
• Co-ax Construction

Atlas BNC Plugs

The Atlas BNC connector is designed to maintain a true impedance of 75 Ohms from source to destination.

Ultra RCA Plug

The Ultra is a wide-band, OCC copper, constant impedance, self-cleaning, solder-free construction RCA plug.
In Atlas' cables, the conductor to plug interfaces are solder free, and the gold-plated conjugate brackets act as the return signal path, helping to reject RFI. Both conjugate brackets (these grip the cable without the adverse effects of compressing it, which can alter impedance) have two asymmetrical leaves which spring open on insertion and wipe clean the signal path. To maintain a clean signal path, simply remove and re-insert them periodically.

The Ultra RCA connectors utilise low-mass non-magnetic connectors to minimise the negative effect of excessive metal in the plug itself.

Ohno Continuous Casting Copper (OCC Copper)

The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor''s length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long!

The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment.

Copper Purity Comparison (0.3mm Diameter)
		TPC	OFC	OCC
Purity		>99.9%	>99.99%	>99.999%
Specific Gravity		8.75	8.926	8.938
Gas Impurities (ppm)
	O2	200~500	<10	<5
	H2	<0.5	<0.5	<0.3
Average Crystal Size (Metre)		0.007	0.02	125.00
Crystals Per Metre		150	50	0.008



PTFE Dielectric

PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.

Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon,) and the new and unique Atlas (PTFE).

Microporous PTFE (Teflon™) is a unique, low density dielectric material, phase stable at room temperature, which offers significant performance improvements over solid PTFE (Teflon™) dielectric designs.

The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.

Dielectric Material Comparison (0.3mm Diameter)
Property	Polyvinyl Chloride (PVC)	Foamed Polyethylene (PEF)	Polypropylene (P.P)	Teflon (FEP or PTFE)	PTFE
Dielectric Constant (@ 50 -106Hz)	4-8	2.3	2.25	2.1	1.3
Dielectric Strength (kV mm-1)	23-30	30-50	30-50	20-25	N/A
Loss Tangent (% @ 50 - 106Hz)	8-15	0.02-0.05	0.02-0.06 (@ 106Hz)	0.02-0.07	N/A
Volume Resistivity (Ohms.cm @ 20°C)	1012-15	>1017	6.5x1014	>1016	N/A
Tensile Strength (Kg mm-2)	1.0-2.5	1.0-2.0	3.0-4.0	1.9-2.2	1.0
Melting Point (°C)	-130	112-120	155-160	275	275
Max. Continuous Operating Temp. (°C)	60	75	90	200	260
Min. Operating Temp. (°C)	-15 to -40	<-60	-5 to -45	<-60	-250



Co-ax Construction

Central conductor (signal path) surrounded by dielectric material encased within a circular conducting screen which acts as the signal return path.

Contact Enhancer Option

To ensure the best possible connection between your system, Future Shop recommends the DeoxIT Gold G-Series contact enhancer.

DeoxIT Gold is carefully applied to the plug contacts of your cable and is a unique conditioning solution designed to improve conductivity and provide long-lasting protection on gold, base metals and other precious metal contacts and connections. DeoxIT Gold penetrates plated surfaces, molecularly bonding to the base metals to seal and protect both surfaces.

The benefits of applying DeoxIT gold are:

• Improved Conductivity
• Maintained optimum signal quality
• Reduced wear & abrasion
• Prevents fretting/dendrite corrosion
• Forms a protective anti-tarnishing coating
• Stabilises connections between similar and dissimilar metals
• Reduces arcing, RFI and intermittent connections

Please select this option from the above ‘Contact Enhancer’ drop-down menu and our engineers will apply the contact solution to your cable connectors prior to shipping.

Specification :

• Construction : Co-ax (1/0.7 Monofilament + 18/0.14)
• Material : OCC Copper
• Dielectric : Microporous PTFE (Teflon™)
• Screen : Braid OFC with Al Mylar™, 100%
• Capacitance : 54.35 pF/m
• Inductance : 0.230 µH/m
• Resistance : 0.065 Ohms/m
• Impedance : 77.43 Ohm at (1MHz)
• VOP : 0.81
• Outside Diameter : 8.5mm
