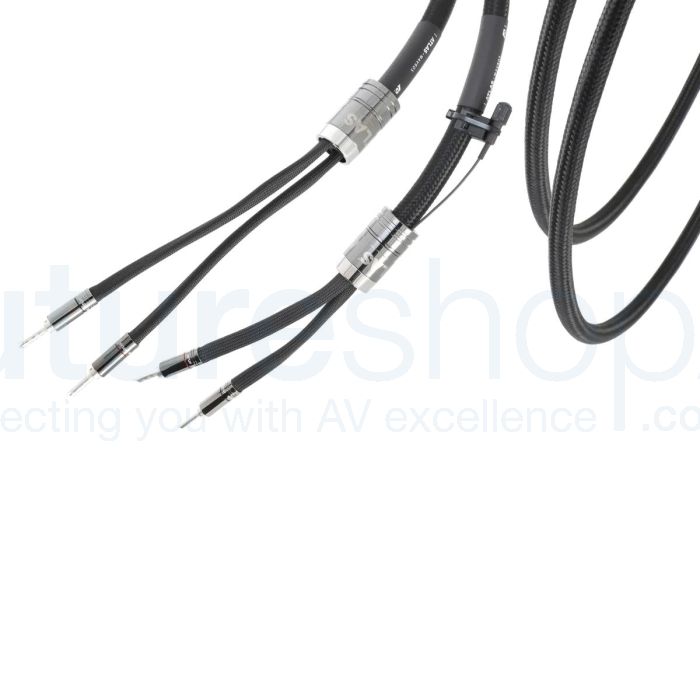

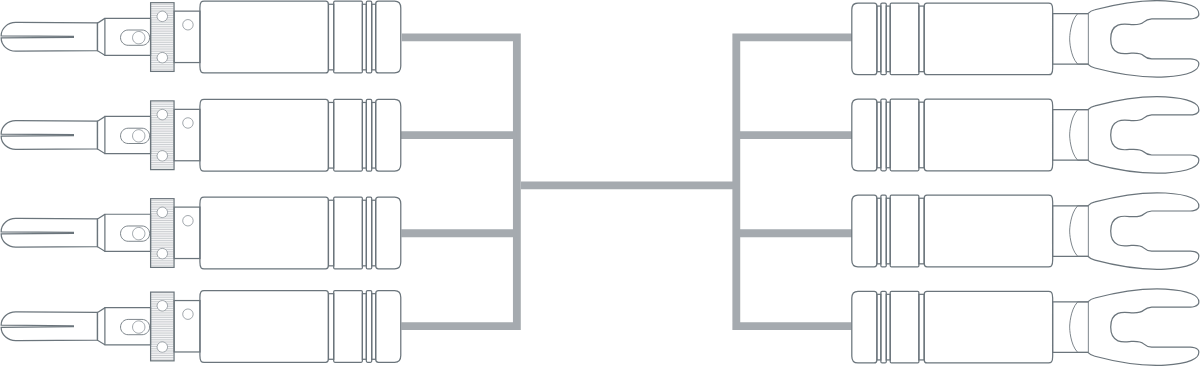

The Atlas Mavros Transpose Speaker Gold 4-4 Grun is the bi-wire version of the latest Mavros, the OCC copper speaker cable in Atlas's High End range. This 4-4 configuration has four connectors at each end, so it can run from an amplifier with two sets of outputs, or a bi-amped pair, to loudspeakers with separate bass and treble terminals. In the bi-wire build, a solid OCC conductor carries the mid and treble while stranded OCC conductors take the bass, with the same 2mm² total as the previous Mavros.

Atlas wrap the conductors in their microporous PTFE and now add a thin polyethylene liner, which keeps the geometry concentric during manufacture, then screen the cable with foil and braid using their Dual Drain arrangement. The cable is also Grun-enabled: a separate lead lets you connect the screen to a clean ground through the supplied spade tag adapters, an Eos Modular power block or a Grun mains adapter, lowering the noise floor without changing the tonal balance.

Termination uses the Transpose modular system. The connector bodies are cold-welded on in Atlas's factory and take threaded inserts, so you can move between Z-plugs, spades and expanding 4mm plugs later. Choose the plugs for each end from the options above. This listing is for a single cable, so please enter a quantity of 2 for a stereo pair.

What Atlas say about the Mavros Transpose Speaker Gold 4-4 Grun

In pursuit of ever-higher levels of performance, we‘ve revised our acclaimed Mavros speaker cable.

Mavros has been a mainstay of our product lineup for some considerable length of time and has proven to be a reliably successful choice for an extremely wide range of equipment.

Of course, given our policy of continuous improvement, it’s been progressively refined and finessed over the years, and this latest-generation Mavros offers substantial gains in sound quality.

The new design takes some cues from our remarkable Arran Speaker cable; in other areas it‘s a result of investigating how we could improve both the efficiency and overall build quality of the cable, both factors which we know yield audible benefits.

Firstly, the conductor topology has been refined; uniquely designed to be optimised for single wire, bi-wire and bi-amping use, we’ve retained its combination of solid and stranded cores (same overall 2mm² as its predecessor) but in a slightly different configuration. (In the Bi-wire version, a single solid conductor is allocated to HF/Mid use whereas the stranded conductors are allocated to LF).

Bi-wire cables can offer performance benefits when the two halves of the loudspeaker's crossover are electrically ‘separated’ to allow bi-wiring (and bi-amping, if so desired). Available in 2–4 and 4–4 connector configurations.

Next, a revision of the dielectric, with our customary, and exclusive, microporous PTFE composition, but now with improvements to geometric stability. Wrapped microporous PTFE has huge benefits in terms of open, natural and accurate sound, however increasing the amount to maintain the desired electrical parameters during manufacturing can affect the cable geometry, becoming non-concentric. The solution is to apply a thin but strong Polyethylene liner around the microporous PTFE during the manufacturing process.

Lastly, the precision of the final assembly; we’ve invested heavily in optimising our production process for consistency and efficiency, and it shows. The fit, finish and ‘feel’ of the cable in your hand are superb. Every cable is hand-made by a skilled Atlas technician, each of whom takes a great deal of pride in their work. An included signed certificate of authenticity identifies the person who built your cable.

This cable is fitted as standard with the Transpose Modular Termination System, which allows easy switching between Z (Gold or Silver 4mm Z-plug), S (Gold or Silver OCC spade) or E (Expanding plug versions as your requirements change. Expanding 4mm plugs are the standard configuration, please specify at time of purchase if you require an alternative connector. Alternative connector kits are available from your Atlas dealer.

Features:

• Transpose Modular Termination System: Z-plug, spade or expanding plug
• Cold-weld termination
• Grun Coherent Ground System
• OCC Copper Conductors, solid and stranded
• Microporous PTFE Dielectric with Polyethylene liner
• Foil/Braid Screen with Dual Drain
• Supplied with 2x Grun Cable 1:1 and 2x Grun Spade Adapter per pair

Transpose Modular Termination System

With our Transpose Modular Termination System, the cable is factory-terminated with cold-weld connectors which accept a range of threaded inserts (the actual connector part of the plug). This gives the user the option to change from, for example, expanding 4mm plugs to spades simply by purchasing a set of Transpose spade adapters.

The construction and finishing of our Transpose connectors is also vital to their performance.

Plug pins and contacts are deep gold or silver-plated* to prevent oxidisation, which affects performance, and visible tarnishing. The priority is to minimise contact resistance, which is critical to consistent performance.

* Silver is a more efficient conductor than gold, but is both more expensive and prone to tarnishing. We silver-plate our Transpose Expanding connectors, and provide a silver polishing cloth for cleaning.

The Superiority of Our Cold-Weld (Crimped) Connections

A soldered connection creates an undesirable material ‘barrier’ in the signal path, as well as potential inconsistencies. Screw terminations can distort or damage the conductor and/or dielectric, resulting in measurable deviations from the intended specification.

In a cold-weld (solder-free) connection, the metal of the connector plug and the wire are squeezed together under a calibrated pressure to form a robust, consistent, air-tight metal to metal contact with no deformation of the cable dielectric. The result is a smooth, uninterrupted signal path which behaves as one continuous entity.

OCC Copper

The Ohno continuous casting method re-heats the extrusion as the molten copper is forced out of the mould and very slowly and gradually draws the grain or crystal down the conductor's length, creating a ‘single crystal structure.’ Actually, because no copper is 100% pure, there will always be a few boundaries produced by impurities. The frequency of boundaries created are quite insignificant. A typical crystal in a copper conductor drawn to 0.3 mm diam. using the OCC process is 125.00 metres long! The benefits are obvious, with almost no crystal boundaries, the audio signal is no longer impeded down the copper wire and more information and detail is delivered faithfully to the receiving equipment.

PTFE Dielectric

PVC (Poly Vinyl Chloride) is cheap to produce and, as such, is the most commonly used insulation in AV cables. However, PVC is the worst quality insulation a Hi-Fi or AV signal can encounter as its high loss causes a significant reduction in signal velocity. PVC is better suited to power cables and should be avoided in Hi-Fi and AV signal cables.

Other dielectrics in common use are Polyethylene, Polypropylene and Polytetrafluoride Epoxy (better known as PTFE (Teflon™) or Teflon) and the new and unique Atlas (PTFE).

Microporous PTFE (Teflon™) is a unique, low density dielectric material, phase stable at room temperature, which offers significant performance improvements over solid PTFE (Teflon™) dielectric designs.

The table below shows the properties of a selection of dielectrics. Though not used as a dielectric in Atlas' cables, PVC is included for comparison purposes.

Atlas DD (Dual Drain) System

Normally screened cables suffer from screen distortion when they are prepared for production. (If you’ve ever wired a plug or connector which uses a screened cable, you've done this yourself, cutting back and probably twisting the screening braid for termination). This distortion of the screen has a measurable impact, effectively changing the impedance and therefore the performance of the cable.

Our ‘dd’ configuration is based on a simplified version of the techniques originally developed for our then top-of-the-range Mavros and Asimi interconnects. Twin symmetrical drain wires (each attached to 180° segments of the plug) are inserted between a 100% copper/Mylar™ foil and screen.

The unique dd system connects the screen effectively to the cable return/plug interface, meaning the cable can be terminated without distorting, twisting or mechanically stressing the precision-laid screen. The benefits are in maintaining a consistent low impedance load to the plug, and a total 360° screening against noise and signal loss caused by RFI (Radio Frequency Interference).

Grun Coherent Ground System

Speaker cables fitted with our Transpose speaker connectors are Grun-enabled as standard.

One of the biggest obstacles to achieving the performance levels our equipment is capable of is noise. Low levels of RFI (radio frequency) and EMI (electro-magnetic interference) and noise on the signal ground each subtly modulate and degrade the overall noise levels of the system.

Although our cables are all designed to minimise the invasion of external interference, it’s not possible to completely eliminate it.

But the audible benefits of substantially reducing it via our Grun products are considerable.

And the impact of Grun is cumulative. Adding additional Grun-enabled products reduces the impact of unwanted ‘noise’ still further.

Grounding critical components via the Grun system doesn’t alter the tonal balance or character of the system but audibly removes the effect of noise you probably didn’t realise was there.

The result typically reveals a greater level of fine detail, enhanced stereo soundstage and an improved ‘ease’ and naturalness.

Grun-enabled products are supplied with 1:1 or 1:2 adapters and a spade tag adapter for the simplest Grun connection. Additional adapters may be purchased separately.

Grun connections can be made via an Eos Modular power block and/or our Grun mains power adapters.

Contact Enhancer Option

Future Shop recommends the DeoxIT Gold G-Series contact enhancer to ensure the best possible connection between your systems.

DeoxIT Gold is carefully applied to the plug contacts of your cable and is a unique conditioning solution designed to improve conductivity and provide long-lasting protection on gold, base metals and other precious metal contacts and connections. DeoxIT Gold penetrates plated surfaces, molecularly bonding to the base metals to seal and protect both surfaces.

The benefits of applying DeoxIT gold are:

• Improved Conductivity
• Maintained optimum signal quality
• Reduced wear & abrasion
• Prevents fretting/dendrite corrosion
• Forms a protective anti-tarnishing coating
• Stabilises connections between similar and dissimilar metals
• Reduces arcing, RFI and intermittent connections

Please select this option from the above ‘Contact Enhancer’ drop-down menu, and our engineers will apply the contact solution to your cable connectors prior to shipping.

How to Order

Ordering your cable from Future Shop is simple. Follow these simple steps to customise and secure your purchase:

1. Length Selection: Begin by selecting the desired length of your cable from the dropdown menu provided. Choose the appropriate measurement that suits your specific setup requirements.
2. Plug Selection: Next, specify the type of plugs you need for both the 'Amplifier end' and the 'Speaker end' of the cable. Select the plugs that best match your equipment and connectivity preferences from the dropdown menus.
3. Burn-In Time: If you prefer your cable to undergo a burn-in process for optimal performance, indicate the desired duration from the dropdown menu. Unless otherwise specified, all cables are pre-burnt in for 96 hours.
4. Add to Basket: Once you have made all the necessary selections, click on the 'Add to Basket' button. This action adds your customised cable to your shopping basket, bringing you one step closer to completing your order.
5. Dispatch and Delivery: After placing your order, the manufacturer's engineers will promptly manufacture your cable according to your specifications. It will then undergo the specified burn-in process if chosen.

Please note: you need to enter a quantity of 2 for a pair of speaker cables, i.e. for the left speaker and right speaker.

Once these processes are complete and subject to Future Shop's Terms & Conditions and stock availability, your cable will be dispatched for delivery.

Please remember that the dispatch time may vary depending on the complexity of your custom cable and the stock availability. Future Shop is committed to ensuring a smooth ordering process and providing you with high-quality products that meet your audio needs.

Specifications

About Atlas Cables

Atlas Cables, a distinguished company headquartered in Scotland, embodies engineering excellence, showcasing an unwavering commitment to research, development, and quality manufacturing. The company's foundational ethos is rooted in an unyielding love for music, from which stems its innovative approach to designing and crafting audio cables and accessories.

What sets Atlas Cables apart from many other brands, often called 'assemblers,' is their control over the entire creation process. While many competitors settle for assembling products from 'off the shelf' components, Atlas delves deeper, ensuring that each element of their products - from core conductors to insulating materials and terminations - is precisely tailored to meet or exceed performance specifications. This control translates to consistency in assembly and a robust quality control system backed by a five-year guarantee.

Manufacturing primarily in Scotland, a region known for its longstanding tradition of engineering brilliance, Atlas Cables takes pride in building products unique to its brand. Their approach circumvents reliance on pre-existing components and instead focuses on original thinking and total control. This philosophy has led to the development of groundbreaking technologies like the low-mass/high-bandwidth Achromatic & Ultra RCA plugs and the more recent Metik connectors tailored for the personal audio market.

Atlas Cables' comprehensive in-house capabilities encompass everything from CAD concept drawings to listening room tests, ensuring synergy across their entire product range. This ability to innovate, paired with rigorous testing and attentive listening, is more than a business strategy; it's the company's unique 'DNA,' ensuring that every product reflects the love of music that fuels the brand.

In a market where others may settle for assembling existing parts, Atlas Cables continues to push boundaries, seeking better ways to design and build their products. Their insistence on originality and excellence allows them to offer advanced technology remarkably cost-effectively. The final result? A portfolio of cables, plugs, and accessories you'll not find elsewhere is truly unique to Atlas, reflecting a profound connection between engineering excellence and the deep love of music that inspired it all.
