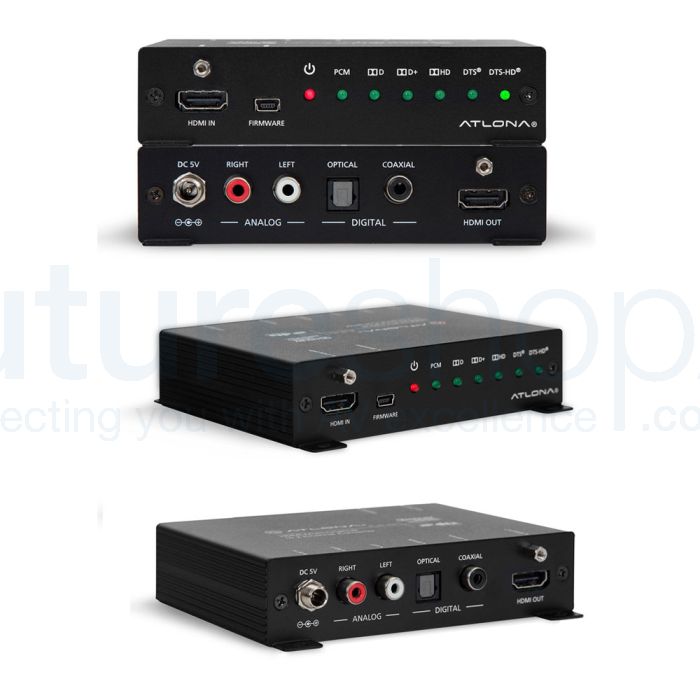

Atlona AT-HD-M2C HDMI Multichannel to Two-Channel Converter

£420.95 Special Price £294.67 £245.56
SKU
Atlona AT-HD-M2C
Free UK Delivery
10 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The Atlona HD-M2C is the ideal audio signal conversion solution for whole-home AV systems utilizing centralized matrix switching. Product Code - AT-HD-M2C.

Atlona AT-HD-M2C HDMI Multichannel to Two-Channel Converter



Please Note: This product is discontinued, once our stock is gone, it's gone!!



HDMI Multichannel to Two-Channel Converter Comprehensive Audio Signal Format Conversion & Compatibility

Audio signals come in many formats, yet many displays and legacy receivers have limited audio capabilties. The Atlona HD-M2C is engineered to be compatible with virtually all digital audio formats including lossless and lossy (compressed/uncompressed) formats. With its plug and play capabilities, requiring no programming, the M2C is unique to the market and perfect for any residential system. The HD-M2C is a true powerhouse in a small package that converts/down-mixes multichannel HD audio formats like Dolby® Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS-HD Master Audio™, and DTS:X™ to two channels. The M2C is designed to integrate seamlessly with all Atlona HDMI switchers including the H2H, PRO2HD, PRO3HD, and UHD-PRO3 Series, as well as many other matrix switchers available.

Application Challenge

Sharing common sources in mixed two-channel and multi-channel zones results in a degraded home theater audio experience. The multichannel zone, a 5.1 home theater for example, is forced to accept the compatible low performance audio stream required for a two-channel zone such as a flat panel TV.

Solution

The HD-M2C solves this dilemma by allowing the distribution of full audio to each zone and seamlessly down mixing from sources such as lossless HD audio. No audio compromises required, enjoy the best HD audio for your home theater and simultaneously enjoy two-channel audio in the kitchen or bedroom.



Atlona Advantage

  • 7.1/5.1 multi-channel to two-channel audio conversion and down-mixing to all outputs
  • Comprehensive audio format signal compatibility: Dolby® Digital, Dolby® Digital Plus, Dolby® TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X™
  • Atlona’s Intelligent EDID Management guarantees the best audio performance
  • Digital Coaxial and Optical plus analog stereo audio outputs for connection to legacy AVRs and systems without HDMI support
  • Plug and play functionality and simplicity eliminates the need for any setup, programming or configuration
  • Reduces system complexity and costs by eliminating the need for separate, dedicated sources for each zone
  • Fully HDCP compliant allowing any protected content to be transmitted
  • LED status indicators automatically detect and display incoming digital audio signal format type
  • Mini USB port for easy firmware updates
  • CEC pass through support



Optional Upgrade:

HD-M2C Multi-channel HDMI output

Firmware version 2.1.0 modifies the standard HD-M2C HDMI output behavior from two-channel down-mix to multi-channel pass through. A Blu-Ray player 7.1 DTS HD-Master Audio stream will simply output the HD-M2C completely intact. This allows a multi-channel signal to be transmitted to an AVR and a two-channel analog signal to a multi-zone audio amplifier simultaneously. Note: Win8 and Win10 machines cannot be used for the firmware update, please use WinXP/Vista/7″



Specifications:

Resolution

  • Video: 480i@60Hz, 480p@59.94/60Hz, 576i@50Hz, 576p@50Hz, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
  • VESA: 800×600@60/75Hz, 1024×768@60/75Hz, 1280×768@60/75Hz, 1280×800@60Hz, 1280×1024@60/75Hz, 1366×768@60Hz, 1440×900@60/75Hz, 1440×1050@60Hz, 1600×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1200@60Hz
  • Colourspace: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Colour depth 8-bit, 10-bit, 12-bit

Audio:

  • Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Sample Rate: 44.1kHz, 48kHz, 96kHz, 192kHz
  • Total Harmonic Distortion: 0.0025% (-92dB, sample frequency: 48kHz)
  • Signal/Noise Ratio: 106dB
  • Gain: 0
  • Frequency Range: 20Hz to 20kHz

Distance:

  • HDMI: up to 10 meters

Signal:

  • Bandwidth: 6.75 Gbps
  • CEC: Pass through
  • HDCP: Compliant

Temperature:

  • Operating: 0°C to 40°C
  • Storage: -20°C to 60°C
  • Humidity: 20 to 90% non-condensing

Power:

  • Consumption: 2.6W
  • Supply Input: AC100~240V 50/60Hz
  • Supply Output: DC 5V/2.6A

Dimension:

  • HxWxD: 30mm x 125mm x 110mm

Weight:

  • Unit: 0.26kg
  • Shipping: 0.67kg

Certification:

  • Power Supply: CE, FCC, cULus

Ports HDMI IN

  • Features: 3D, 1080p, 1920×1200, Dolby TrueHD, DTS-HD Master Audio

HDMI OUT

  • Features 3D, 1080p, 1920×1200, PCM 2Ch @ 48kHz (up to Dolby TrueHD/DTS-HD Master Audio using firmware V2.1.0)

Optical OUT

  • Audio: PCM 2Ch @ 48kHz

Coaxial OUT

  • Audio: PCM 2Ch @ 48kHz

Analog OUT

  • Audio: 2Ch (L/R) @ 48kHz

Mini USB

  • Use: Firmware updating



Box Contains:

  • AT-HD-M2C
  • Locking 5V DC Adaptor
  • User manual



About Atlona

Atlona Technologies is a dynamic solutions based manufacturer poised on the bleeding edge of Audio Video technology. Their product line has grown to cover almost every conceivable solution in the Audio Video industry with new innovative products in development continuously. Atlona has been consistently first to market without sacrificing quality or using the field to test new products.

 Atlona has only continued to grow nationally with some of the largest names in retail including Costco, Walmart, Fry’s Electronics, with many more in development. Our innovative product line has contributed to the developing relationships with high caliber companies such as NASA and Lockheed Martin. Whether your application is for professional broadcast, or a home theater installation, Atlona Technologies has you covered.

Specifications:

Resolution

  • Video: 480i@60Hz, 480p@59.94/60Hz, 576i@50Hz, 576p@50Hz, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
  • VESA: 800×600@60/75Hz, 1024×768@60/75Hz, 1280×768@60/75Hz, 1280×800@60Hz, 1280×1024@60/75Hz, 1366×768@60Hz, 1440×900@60/75Hz, 1440×1050@60Hz, 1600×900@60Hz, 1600×1200@60Hz, 1680×1050@60Hz, 1920×1200@60Hz
  • Colourspace: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Colour depth 8-bit, 10-bit, 12-bit

Audio:

  • Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Sample Rate: 44.1kHz, 48kHz, 96kHz, 192kHz
  • Total Harmonic Distortion: 0.0025% (-92dB, sample frequency: 48kHz)
  • Signal/Noise Ratio: 106dB
  • Gain: 0
  • Frequency Range: 20Hz to 20kHz

Distance:

  • HDMI: up to 10 meters

Signal:

  • Bandwidth: 6.75 Gbps
  • CEC: Pass through
  • HDCP: Compliant

Temperature:

  • Operating: 0°C to 40°C
  • Storage: -20°C to 60°C
  • Humidity: 20 to 90% non-condensing

Power:

  • Consumption: 2.6W
  • Supply Input: AC100~240V 50/60Hz
  • Supply Output: DC 5V/2.6A

Dimension:

  • HxWxD: 30mm x 125mm x 110mm

Weight:

  • Unit: 0.26kg
  • Shipping: 0.67kg

Certification:

  • Power Supply: CE, FCC, cULus

Ports HDMI IN

  • Features: 3D, 1080p, 1920×1200, Dolby TrueHD, DTS-HD Master Audio

HDMI OUT

  • Features 3D, 1080p, 1920×1200, PCM 2Ch @ 48kHz (up to Dolby TrueHD/DTS-HD Master Audio using firmware V2.1.0)

Optical OUT

  • Audio: PCM 2Ch @ 48kHz

Coaxial OUT

  • Audio: PCM 2Ch @ 48kHz

Analog OUT

  • Audio: 2Ch (L/R) @ 48kHz

Mini USB

  • Use: Firmware updating
