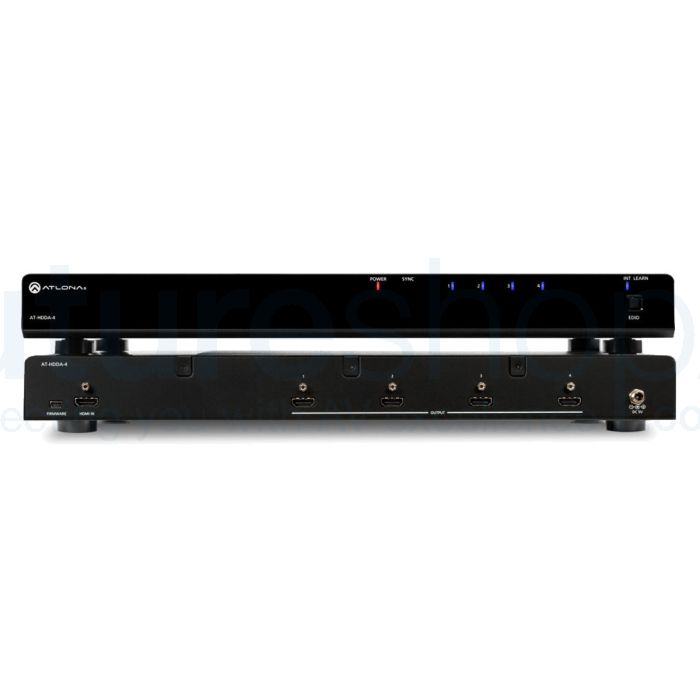

Atlona AT-HDDA-4 1×4 HDMI to HDMI Distribution Amplifier

£326.21 £271.84
SKU
AT-HDDA-4-1
Free UK Delivery
10 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Please Note: This product is discontinued, once our stock has gone, it's gone!!

The Atlona AT-HDDA-4 is a 1×4 HDMI to HDMI distribution amplifier supporting 4K/UHD signals. 4 zones with advanced EDID management, ideal for displays using cutting-edge Ultra HD resolution.

Atlona AT-HDDA-4 1×4 HDMI to HDMI Distribution Amplifier



Please Note: This product is discontinued, once our stock has gone, it's gone!!

The Atlona AT-HDDA-4 is a 1×4 HDMI to HDMI distribution amplifier supporting 4K/UHD signals. 4 zones with advanced EDID management, ideal for displays using cutting-edge Ultra HD resolution.



Features

  • HDDA-4 passes 4K/UHD, the highest currently available resolution, plus Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X, and 3D up to 12-bit deep color.
  • HDCP 1.4 compliant
  • Allows protected content stream to pass between devices
  • Advanced EDID Management
  • Learns reference EDID from first connected output display and mirrors to all outputs ensuring a reliable and uninterrupted AV signal
  • Supports cascading up to 8x @4K/UHD
  • Link status LED for source and outputs
  • Field-updatable via USB port
  • Supports pass through of all 3D formats
  • Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X™
  • Locking HDMI port
  • Includes dual purpose wall/rack mount ears



Specification

Resolution
Video: 480i@60Hz, 480p@59.94/60Hz, 576i@50Hz, 576p@50Hz, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 3840×2160@24/25/30/50*/60Hz*, 4096×2160@24/25/30/50*/60Hz*
VESA: 640×480@60Hz, 800×600@60/75Hz, 1024×768@60/75Hz, 1280×768@60/75Hz, 1280×800@60Hz, 1280×1024@60/75Hz, 1366×768@60Hz, 1440×900@60/75Hz, 1400×1050@60Hz, 1600×1200@60Hz, 1600×900@60Hz, 1680×1050@60Hz, 1920×1200@60Hz

Colorspace: RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color depth: 8-bit, 10-bit, 12-bit

Audio
Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Distance
HDMI IN: up to 15 meters (@1080p 8-bit) / up to 50 feet
HDMI OUT: up to 15 meters (@1080p 12-bit) / up to 50 feet
4K: up to 5 meters / up to 15 feet

Signal
Bandwidth: 10.2 Gbps
CEC: No
HDCP: Compliant

Temperature
Operating: 0°C to 40°C / 32°F to 104°F
Storage: -20°C to 60°C / -4°F to 140°F
Humidity: 20 to 90% non-condensing

Power
Consumption: 5W
Supply

Input: AC100~240V 50/60Hz
Output: DC 5V/2.6A

Dimension
H x W x D: 44 x 433.8 x 255 (mm) 1.73 x 17.08 x 10.04 (inch)
w/feet: 55.15 x 433.8 x 255 (mm) 2.17 x 17.08 x 10.04 (inch)

Rack Unit: 1

Weight

Device: 2.61kg 5.75lbs
Shipping: 4.20kg 9.25lbs


Certification
Power Supply: CE, FCC, cULus

Ports
HDMI IN
Features: 3D, 4K, 1920×1200, Dolby TrueHD, DTS-HD Master Audio

HDMI OUT
Features: 3D, 4K, 1920×1200, Dolby TrueHD, DTS-HD Master Audio

Mini USB
Use: Firmware updating

Package Contents
1 AT-HDDA-4
1 5V DC power supply adaptor
1 Pair of wall/rack mount ears
1 User manual

* 4096×2160@50/60Hz & 3840×2160@50/60Hz supported @ Chroma subsampling 4:2:0 8-bit only
