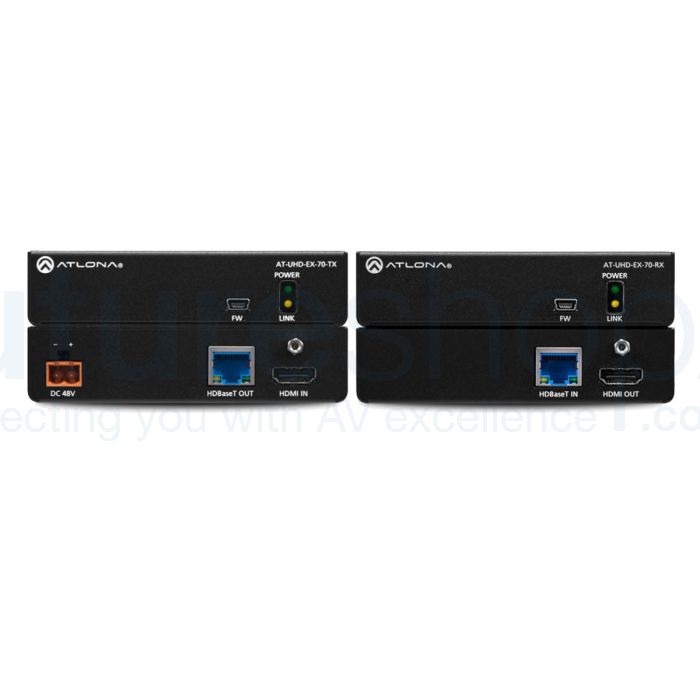

Atlona AT-UHD-EX-70-KIT 4K/UHD HDMI over HDBaseT Transmitter/Receiver Kit

£367.55 £306.29
SKU
AT-UHD-EX-70-KIT
Free UK Delivery
10 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Please Note: This product is now discontinued so once our stock is gone, it's gone!!

The Atlona AT-UHD-EX-70-KIT is a 4K/UHD HDMI over HDBaseT transmitter/receiver kit for HDMI transmission up to 230 feet (70 meters) over category cable with Power over Ethernet capability.

Atlona AT-UHD-EX-70-KIT 4K/UHD HDMI over HDBaseT Transmitter/Receiver Kit



Please Note: This product is now discontinued so once our stock is gone, it's gone!!

The Atlona AT-UHD-EX-70-KIT is a 4K/UHD HDMI over HDBaseT transmitter/receiver kit for HDMI transmission up to 230 feet (70 meters) over category cable with Power over Ethernet capability. The kit transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. The kit is HDCP 2.2 compliant and supports EDID communication. Both transmitter and receiver feature quarter rack width metal enclosures for easy rack mounting with rear panel I/O ports for uncluttered wire management.

The AT-UHD-EX-70-KIT provides integrator-friendly features including: IEEE standards-based PoE transmission for safety and compatibility; compliant with HDCP 2.2 to meet the latest copy protection requirements; an easy-to-install form factor with rear panel HDBaseT, HDMI, and power connections; a rackmountable form factor that allows for four transmitters to share a single, 1U rack tray; power chaining to allow multiple sets to be powered from one power supply; and a front mounted USB port for easy firmware updates.



Features

4K/UHD capability

  • Compatible with Ultra High Definition sources and displays
  • Full support of 4K/UHD streaming services and playback devices

HDCP 2.2 compliant

  • Adheres to latest specification for High-bandwidth Content Protection
  • Allows protected content stream to pass between devices

Supports 4K HDR10 @ 24 Hz

  • Extends 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)

Remote-powered receiver

  • Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
  • Saves time and integration costs

Long distance HDMI extension

  • Transmits HDMI signals up to 230ft (70m) @ 1080P and 130 ft (40m) @ 4K/UHD using CAT6a/7 cable
  • Uses easy-to-integrate category cable for low-cost, reliable system installation

Rear panel I/O connectors

  • Placement of ports on rear panel simplifies wire management
  • Saves installation time and eliminates clutter

Field updatable firmware

  • Front panel USB port provides an easy means for kit upgrades
  • Ensures long term system return on investment

Multi-channel audio compliant

  • Supports PCM, Dolby Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos®, DTS Digital Surround™, DTS-HD Master Audio™, and DTS:X™
  • Allows any multi-channel audio stream to be used within a professional audio system

Front panel Power and Link status LEDs

  • LED indicators provide power and HDBaseT link status information
  • Provides easy setup and troubleshooting

Power chaining

  • Included power supply provides ample power for up to three Atlona HDBaseT extenders
  • Four Atlona HDBaseT extenders can be powered using the optional AT-PS-483125-C power supply
  • Reduces clutter from multiple power supplies in equipment racks

Low-profile, 1 inch (25 mm) high quarter rack-width enclosure

  • Easy installation into system racks and confined spaces behind displays
  • Keeps devices out-of-sight when placed in public spaces

Included accessories

  • User guide, desktop power supply for transmitter, detachable power cable, mounting brackets



Specification

Resolution
Video

4096×2160@24/25/30/50*/60Hz*, 3840×2160@24/25/30/50*/60Hz*, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i

VESA

2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480

Colorspace

RGB, YCbCr

Color Depth

8-bit, 10-bit, 12-bit

HDR

4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit color
(Source signal delivered from Ultra HD Blu-ray as 4K @ 24Hz 4:2:2. Not compatible with HDR10 @ 60Hz.)


Audio
Formats

PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

Sample Rate

32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Bit Rate

Up to 24-bit

Distance

CAT5e/6 @ $K

  • up to 35 meters / up to 115 feet

CAT6a/7 @ 4K

  • up to 40 meters / up to 130 feet

CAT5e/6 @ 1080p

  • up to 60 meters up to 197 feet

CAT6a/7 @ 1080p

  • up to 70 meters up to 230 feet

HDMI IN/OUT @ 4K

  • up to 5 meters up to 15 feet

HDMI IN/OUT @ 1080p

  • up to 10 meters up to 30 feet



Signal
Bandwidth

10.2 Gbps

CEC

Pass through

HDCP

Supports up to 2.2



Connector

Firmware

  • Mini-B USB

HDBase4T

  • RJ45 (8P8C)

HDMI

  • Type A

Power

  • 2-pin, 48V captive screw

Temperature
Operating

0°C to 50°C / 32°F to 122°F

Storage

-20°C to 60°C / -4°F to 140°F

Humidity

20 to 90% non-condensing

Power

Consumption

  • 12W

Supply

  • Input: AC100~240V 50/60Hz
  • Output: DC 48V/0.83A

Dimensions

Unit

  • 0.98 x 4.29 x 3.50inches / 25 x 109 x 89mm

Unit w/feet/ears

  • 1.06 x 4.69 x 3.50inches / 27 x 119 x 89mm

Power Supply

  • 1.42 x 1.81 x 4.41inches / 36 x 46 x 112mm

Weight

TX Unit

  • 0.29kg / 0.64lbs

RX Unit

  • 0.27kg / 0.59lbs

Certification

Power Supply

  • CE, FCC, RoHS, cULus, RCM, CCC

Product

  • CE, FCC



What you should know about Atlona

Atlona Technologies is a dynamic solutions based manufacturer poised on the bleeding edge of Audio Video technology. Their product line has grown to cover almost every conceivable solution in the Audio Video industry with new innovative products in development continuously. Atlona has been consistently first to market without sacrificing quality or using the field to test new products.

 Atlona has only continued to grow nationally with some of the largest names in retail including Costco, Walmart, Fry’s Electronics, with many more in development. Our innovative product line has contributed to the developing relationships with high caliber companies such as NASA and Lockheed Martin. Whether your application is for professional broadcast, or a home theater installation, Atlona Technologies has you covered.
