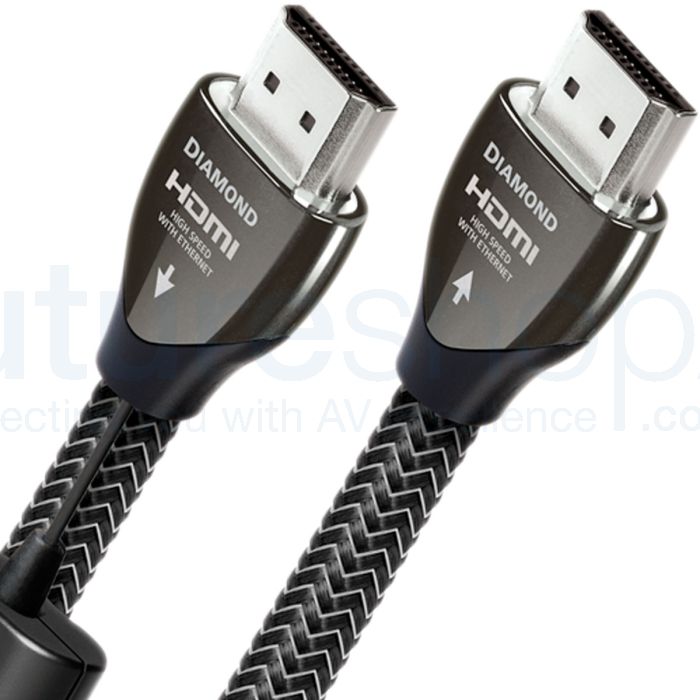

AudioQuest Diamond HDMI Cable

AudioQuest Diamond HDMI Cable

Diamond HDMI incorporates AudioQuest’s highest-performance, lowest-distortion Perfect-Surface Silver conductors. Silver is known for its high conductivity and its “colorless” sonic presentation.

All AudioQuest HDMI cables up to 8 meters meet or exceed the 18 Gbps maximum data rate for HDMI and are approved High Speed with Ethernet cables. This means that all AudioQuest cables up to 8 meters are capable of transmitting 100% of the data required for all of HDMI’s current audio/video features including multichannel high-resolution audio, 1080p and 4K video, and 3D video from Blu-ray. All AudioQuest HDMI cables will deliver 100% of the data required for 120Hz/240Hz/600Hz displays.

For a complete lossless point to point connection, we recommend the AudioQuest Cherry Cola AOC HDMI Cable which is capable of passive 18Gbps from lengths of 5m up to 30m. For more information click here.

Features :

• Solid 100% Perfect-Surface Silver Conductors
• Foamed-Polyethylene Insulation
• Carbon-Based 3-Layer Noise-Dissipation System
• Dielectric-Bias System
• Directionality
• HDMI 4K-8K Compatibility

Solid 100% Perfect-Surface Silver Conductors

Perfect-Surface Technology applied to extreme-purity silver provides unprecedented clarity and dynamic contrast. Solid conductors prevent strand interaction, a major source of cable distortion. Extremely high-purity Perfect-Surface Silver minimizes distortion caused by the grain boundaries that exist within any metal conductor, nearly eliminating harshness and greatly increasing clarity compared to OFHC, OCC, 8N and other coppers.

Foamed-Polyethylene Insulation

Any solid material adjacent to a conductor is actually part of an imperfect circuit. Wire insulation and circuit board materials all absorb energy (loss). Some of this energy is stored and then released as distortion. Diamond HDMI uses air-filled Foamed-Polyethylene Insulation because air absorbs next to no energy and Polyethylene is low-loss and has a benign distortion profile. Thanks to all the air in Foamed-PE, it causes much less of the out-of-focus effect common to other materials.

Carbon-Based 3-Layer Noise-Dissipation System

100% shield coverage is easy. Preventing captured RF Interference from modulating the equipment’s ground reference requires AQ’s Noise-Dissipation System. Metal and Carbon-Loaded synthetics prevent most RFI from reaching the equipment’s ground plane.

Dielectric-Bias System

All insulation slows down the signal on the conductor inside. When insulation is unbiased, it slows down parts of the signal differently, a big problem for very time-sensitive multi-octave audio. AudioQuest’s DBS creates a strong, stable electrostatic field which saturates and polarizes (organizes) the molecules of the insulation. This minimizes both energy storage in the insulation and the multiple nonlinear time-delays that occur. Sound appears from a surprisingly black background with unexpected detail and dynamic contrast. The DBS battery packs will last for years. A test button and LED allow for the occasional battery check.

Directionality

All audio cables are directional. The correct direction is determined by listening to every batch of metal conductors used in every AudioQuest audio cable. All signal conductors controlled for digital-audio direction in AudioQuest HDMI cables, and care is even taken to run the conductors used in the Audio Return Channel in the opposite direction to ensure the best performance for that application. Arrows are clearly marked on the connectors to ensure superior sound quality.

HDMI 4K-8K Compatibility

Just as 4K technology and content have matured, customers are now seeing 8K TVs in stores and the eventual transition from HDMI 2.0 to HDMI 2.1. Naturally, questions arise. First and foremost, are AudioQuest HDMI cables compatible with 8K and the new features potentiated by HDMI 2.1?

All AudioQuest 18Gbps High Speed HDMI are guaranteed to have the 18Gbps bandwidth required for compelling features like 8K/30, HDR (High Dynamic Range) and eARC (enhanced Audio Return Channel).

In addition, AudioQuest’s HDMI Active Pearl, Forest and Cinnamon cables employ active frequency-equalization to enable full 18Gbps performance at lengths up to 49.2ft (15 meters). Cherry Cola is a Hybrid Active Optical HDMI model that offers full 18Gbps performance at lengths up to 100 feet (30.48 meters).

Video Up to 8K/30

AudioQuest 18Gbps High Speed HDMI cables have the bandwidth required for video up to 8K/30 (8-bit, 4:2:0), which is 7680 x 4320 resolution (over 33 million pixels) at up to 30 frames-per-second (fps). 24 and 30 fps are the frame rates for almost all movies and many TV shows. Currently, there is no widely available 8K content, nor are there any widely available 8K source components, so up-conversion in the TV is the likeliest scenario for 8K early adopters.

HDR (High Dynamic Range)

AudioQuest 18Gbps High Speed HDMI cables support High Dynamic Range (HDR) and Dynamic HDR. HDR content expands the contrast of the image for blacker blacks and brighter whites/highlights as well as greater color saturation and brightness. In addition, 4K Ultra-HD content allows for a wider color range.

This combination of technologies results in more realistic HDR images with greater perceived depth. Dynamic HDR (HDR 10+ and Dolby Vision for example) enables frame-by-frame HDR optimization rather than HDR settings that are fixed for the entire program. The most prominent current HDR formats are HDR10, HDR10+ and Dolby Vision. AudioQuest 18Gbps High Speed HDMI cables are compatible with all these flavors of HDR, which can be found on Ultra-HD Blu-ray, iTunes, Vudu and more.

eARC (Enhanced Audio Return Channel)

HDMI hardware’s previous ARC capabilities max out at lossy (compressed) 5.1-channel surround sound. Not only do all generations of AudioQuest HDMI cables “with Ethernet” support ARC, in order to ensure superior audio performance, the ARC-channel conductor-pair is internally controlled for direction, running in the opposite direction from the 4 pairs that carry information to the TV.

Upcoming HDMI 2.1 hardware support Enhanced Audio Return Channel (eARC), which increases the digital bandwidth dramatically to support uncompressed and lossless high-resolution multichannel audio, including Dolby TrueHD and Atmos, and DTS-HD Master Audio and DTS: X. All AudioQuest HDMI cables “with Ethernet” have the conductors and bandwidth required for eARC’s enhanced sonic capabilities.

Specification :

• High definition 2.0, 3D TV compatible cable
• Jacket Colours: 0.6m - 3m Black w/PVC strips, 5m - 20m White PVC CL3/FT4 rated
• 0.6m - 8m High Speed HDMI w/Ethernet Connection, 12m Standard Speed HDMI w/Ethernet Connection
• Up to 8m exceeds 18Gbps requirement for 4k UltraHD, HDR, HDCP 2.2, Blu-ray UltraHD, 3D, 4.4.4 Colour, etc.
• 72V Dielectric-Bias System (DBS) saturates and polarizes insulation, greatly reducing digital-audio distortion
• Metal : Solid 100% PSS Silver conductors eliminate inter-strand distortion and reduce jitter
• Dielectric : Hard-Cell Foam
• Noise-Dissipation System : Carbon-Based 3-Layer Noise Dissipation System
• Fifth twisted-pair for Ethernet and to enable additional Audio Return Channel options
• All signal conductors controlled for digital-audio direction. “To” for main signal, “From” for Audio Return Channel (audio from TV to AV receiver)
• 'Standard Speed' HDMI cable will at-minimum transfer 1080i, 720p, 1080p/30Hz source material
• 'High Speed' HDMI cable will in addition transfer 1080p/120Hz, 4K, 3D video
• “With Ethernet” HDMI cable (with HEC) includes conductors for bi-directional Ethernet communication. Ethernet capability is independent of “Speed” capability
