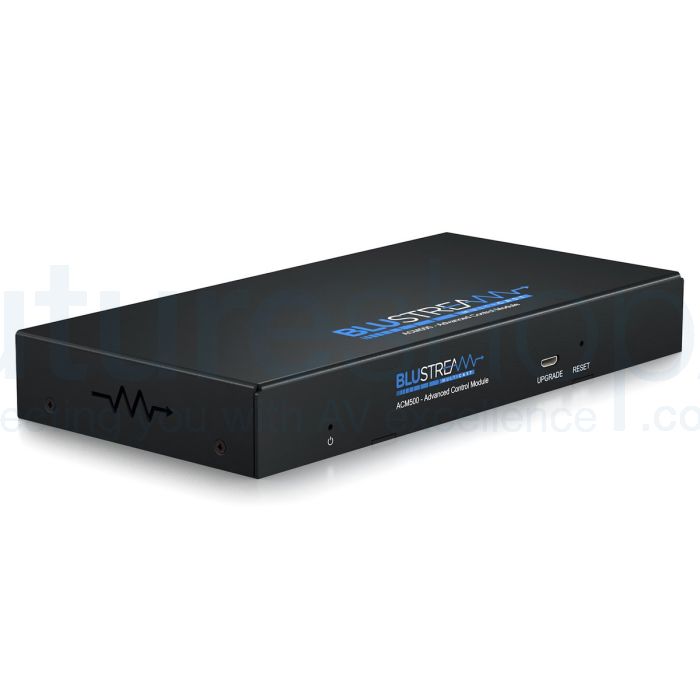

Blustream ACM500 Multicast Advanced Control Module

Need help choosing?

Our Hi-Fi specialists give free, honest advice — no commission, ever. Contact us by email or phone and we'll help you find the right cable for your system.

Item code: ACM500

Our UHD SDVoE Multicast distribution platform allows distribution of the highest-quality, un-compromised 4K with zero latency Audio/Video over copper or optical fibre 10GbE networks. The ACM500 Control Module features advanced third party control …
£519.00
£432.50
✓ Save %

Lowest price in the last 30 days:

New 5 Years warranty 30-day returns
Outside the UK? VAT removed automatically at checkout. Pre-paid duties available for selected destinations.
Qty:

SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

£432.50 ex. VAT
Available — built to order, dispatches in 48 Hours
Delivery: Royal Mail Tracked 24 FREE  ·  DPD Next Day from £8.95  ·  DPD Saturday from £12.95
Order before 4pm (Mon–Fri) for same-day dispatch
Our promise: 30-day returns · Free burn-in · Built in our UK workshop · 5 Years warranty · Expert support on every order
promotional_banner_4

Blustream ACM500 Multicast Advanced Control Module for TCP/IP, RS-232 and IR control of Blustream SDVoE 10GbE Multicast Systems with Web-GUI



The Blustream ACM500 Multicast Advanced Control Module takes control and configuration of your Blustream SDVoE 10GbE Multicast System to the next level. Designed to provide seamless and efficient control, this module offers TCP/IP, RS-232, and IR control options and a user-friendly web interface module for easy configuration.

Blustream's UHD SDVoE Multicast distribution platform ensures the transmission of uncompromised, high-quality 4K audio and video over copper or optical fibre 10GbE networks. With the ACM500 Control Module, you can harness the full potential of this distribution system and enjoy the benefits of advanced third-party control.

The ACM500 features an intuitive web interface module that allows you to configure and control the Blustream SDVoE 10GbE Multicast system effortlessly. With its 'drag and drop' source selection and video preview feature, you can actively monitor the system's status and make informed routing decisions. The module enables independent routing of IR, RS-232, USB/KVM, audio, and video signals, providing you with precise control over every aspect of your system.

One of the standout features of the ACM500 is its ability to simplify installation and eliminate the need for a deep understanding of complex network infrastructures. Pre-built Blustream product drivers come included, ensuring smooth integration of the Multicast system and simplifying the setup process.

The ACM500 offers a range of connectivity options to suit your needs. It features two RJ45 LAN connections that bridge your existing network to the Multicast video distribution network. This separation of network traffic results in better system performance and eliminates the need for advanced network configurations. Each LAN connection has an independent IP address, enabling simplified TCP/IP control of the Multicast system.

For seamless control integration, the ACM500 provides dual RS-232 ports. These ports can control the Multicast system directly or pass control to remote third-party devices. The module also supports 5V/12V IR integration, allowing you to control the Multicast system effortlessly.

Power over Ethernet (PoE) capability ensures a convenient power supply for the Blustream product directly from a PoE switch, reducing clutter and simplifying installation. If your Ethernet switch does not support PoE, a local 12V power supply option is available.

The ACM500 offers broad compatibility and convenience. It supports iOS and Android App control, allowing you to manage your system using your preferred mobile device. Additionally, 3rd-party drivers are available for all major control brands, ensuring seamless integration into your existing control ecosystem.

Elevate your control experience with the Blustream ACM500 Multicast Advanced Control Module. Its advanced features, user-friendly interface, and broad compatibility make it the ideal choice for effortless control and configuration of your Blustream SDVoE 10GbE Multicast System. Simplify your setup, enhance system performance, and take command of your audio/video distribution with the ACM500.



Features

  • Web interface module for configuration and control of the Blustream SDVoE 10GbE Multicast system
  • Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
  • Advance signal management for independent routing of IR, RS-232, USB/KVM, audio and video
  • Auto system configuration
  • 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
    • Better system performance as network traffic is separated
    • No advanced network setup required
    • Independent IP address per LAN connection
    • Allows simplified TCP/IP control of Multicast system
  • Dual RS-232 ports for control of the Multicast system, or pass-through of control to remote third party devices
  • 5V/12V IR integration for control of Multicast system
  • PoE (Power over Ethernet) to power Blustream product from PoE switch
  • Local 12V power supply (optional) should Ethernet switch not support PoE
  • Support for iOS and Android App control
  • 3rd Party drivers available for all major control brands



Specification

  • Ethernet Port: 2 x 1Gb LAN RJ45 connector (1x PoE support)
  • RS-232 Serial Port: 2 x 3-Pin Phoenix connector
  • I/O Port: 1 x 6-Pin Phoenix connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • PoE draw: 7.9W (typical), 8.4W (max load)
  • Product Upgrade: 1 x Micro USB, female
  • Dimensions (W x D x H): 190.4mm x 93mm x 25mm
  • Shipping Weight (Kit): 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: PoE or 12V/1A DC

Box Contents

  • 1 x ACM500
  • 1 x IR Control Cable - 3.5mm to 3.5mm Cable
  • 4 x Rubber Feet
  • 1 x Mounting Kit



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



About Blustream

Australian-founded maker of HDMI matrices, HDBaseT extenders and AV distribution products for home and commercial installs.

Blustream started in Melbourne, Australia, and now has offices in the UK and the United States as well. It specialises in HDBaseT matrices and extenders, and its range also covers HDMI switching, audio converters, Dante audio, amplifiers and video over IP. You can use it to route sources to screens across a building.

Read more about BlustreamShow less

HDMI matrices and switches route your sources

Blustream's HDMI matrices and switches let you send several sources to several displays. The range includes 4x4 matrices such as the MX44AB-V2 and smaller switches such as the SW21AB-V2 and SW41AB-V2. A presentation switch, the MFP112, suits meeting rooms. Check the specification for the inputs and outputs.

HDBaseT extenders carry signals over distance

HDBaseT sends video, audio and control over a single network cable, which lets you place a display well away from its source. Blustream lists receivers such as the RX70AMP, which includes an amplifier, and extender sets such as the HEX100HDVGA-KIT.

Converters and cables fill the gaps

Audio extractors and converters, including the CAT100AU, DAC12AU, HD11AU, ADC11AU and DIG11AU, let you pull audio out of an HDMI signal or convert its format. Micro HDMI cables are also available, which helps when a source has only a micro connector.

Shop all Blustream →



  • Ethernet Port: 2 x 1Gb LAN RJ45 connector (1x PoE support)
  • RS-232 Serial Port: 2 x 3-Pin Phoenix connector
  • I/O Port: 1 x 6-Pin Phoenix connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • PoE draw: 7.9W (typical), 8.4W (max load)
  • Product Upgrade: 1 x Micro USB, female
  • Dimensions (W x D x H): 190.4mm x 93mm x 25mm
  • Shipping Weight (Kit): 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: PoE or 12V/1A DC

Box Contents

  • 1 x ACM500
  • 1 x IR Control Cable - 3.5mm to 3.5mm Cable
  • 4 x Rubber Feet
  • 1 x Mounting Kit
