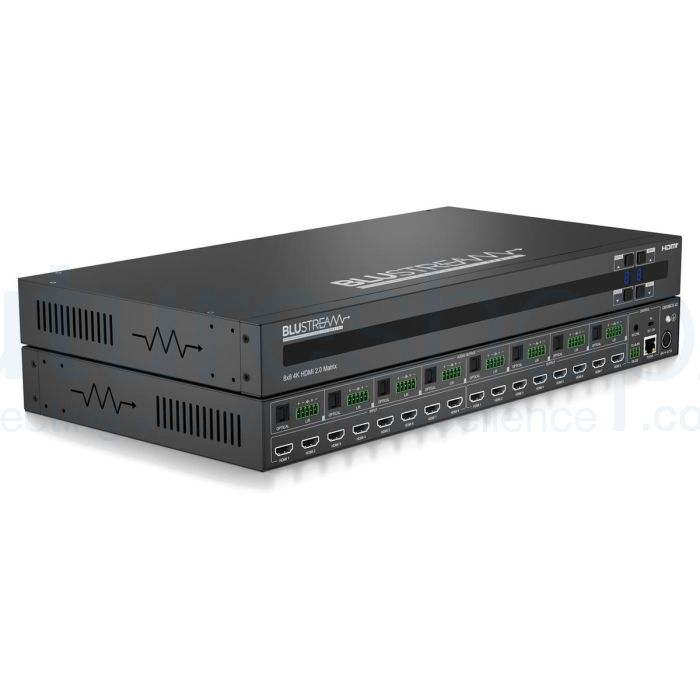

Blustream CMX88CS-V2 8x8 4K HDMI 2.0 Matrix
The Blustream CMX88CS-V2 is an 8x8 4K HDMI 2.0 matrix switcher from Blustream's Contractor Series, built for custom installers and professional integrators who need to share eight sources across eight independent displays. Any input can be routed to any output, so a single rack of satellite boxes, streamers, games consoles and Blu-ray players can serve every room or screen in a home, bar, office or meeting space. The CMX88CS-V2 is the second generation of the CMX88CS, keeping the same 8x8 HDMI 2.0 core while reworking the audio, control and power connections around a 1U, 19-inch rack-mount chassis.
The CMX88CS-V2 supports the full HDMI 2.0 18Gbps specification, passing video up to 4K UHD 60Hz 4:4:4 with HDR, and is HDCP 2.2 compliant for protected 4K content. Mixed display estates are handled by per-output down-conversion: a screen limited to 4K 60Hz 4:2:0 or 1080p receives a version it can show, while every other output continues to display the original full-resolution 4K signal. Advanced EDID management can be set per source input, from a library of preset EDIDs, two user-uploaded EDID files or a copy taken from a connected display, which helps sources settle on the right format quickly and keeps switching reliable. Multichannel surround sound, including object-based audio formats, is passed through as a bitstream in line with HDMI specifications.
For distributed audio, each of the eight HDMI zones can be broken out simultaneously to balanced or unbalanced analogue stereo on 5-pin Phoenix connectors and to optical digital (S/PDIF), ready for zone amplifiers or soundbars. Control is available from the front panel, the supplied IR remote, RS-232, TCP/IP and a built-in web interface with eight recallable presets, CEC control and individual user permissions, and third-party drivers are available for the major control platforms. A rear-panel IR control port with a selectable 5V or 12V IR setting allows the matrix to be controlled from a remote location. Power comes from a 24V 2.71A DC supply with a locking 4-pin DIN connector, and the casing measures 437mm wide, 226mm deep and 44mm high, with a rack-mounting kit supplied.
What Blustream say about the CMX88CS-V2
The Contractor Series CMX88CS-V2 4K 8x8 HDMI Matrix delivers outstanding performance and exceptional value for the Pro and Custom installation markets.
Supporting HDMI 2.0 and HDCP 2.2, the CMX88CS-V2 enables seamless distribution of up to eight HDMI 2.0 sources across eight independent displays, providing complete flexibility to route any source to any screen within a true matrix configuration.
Designed to handle today's demanding AV environments, the unit supports all HDMI video resolutions up to 4K 60Hz 4:4:4, with intelligent automatic downscaling to ensure compatibility with mixed display systems. The matrix also features integrated audio breakout, alongside advanced EDID management per source input, allowing installers to optimise performance and maintain reliable system operation across every installation.
Key Features
- Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
- HDMI zone audio breakout to balanced/unbalanced analogue L/R audio and optical digital outputs concurrently
- Control via front panel, IR, RS-232, TCP/IP and web GUI
- 3rd party drivers available for major control brands
- Advanced EDID management
- HDCP2.2 compliant
- 1U design for 19" rack mount integration - mounting kit included
Specifications
General
- Brand: Blustream
- Model: CMX88CS-V2
- Series: Contractor Series
- Product Type: 8x8 4K HDMI 2.0 Matrix
- Configuration: 8 HDMI inputs, independently routable to 8 HDMI outputs
- Form Factor: 1U, 19" rack mount (mounting kit included)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Video
- HDMI Specification: HDMI 2.0, 18Gbps
- Maximum Resolution: 4K UHD 60Hz 4:4:4
- HDR: Supported
- HDCP: HDCP 2.2 compliant
- Supported Resolutions: All industry standard resolutions including VGA-WUXGA and 480i-4K
- Down-Conversion: Per output, to 4K 60Hz 4:2:0 or 1080p for lower-resolution displays, while other outputs keep the original 4K signal
- Output Scaling Modes: Bypass, Force 1080p, Match TV
- EDID Management: Advanced, per source input (preset EDIDs, 2 user EDID slots, copy from connected display)
Audio
- HDMI Audio: Bitstream passthrough of multichannel surround sound, including object-based audio formats, in line with HDMI specifications
- Audio Breakout: HDMI zone audio to balanced/unbalanced analogue L/R and optical digital outputs concurrently
- Audio Breakout Control: Enable/disable per output
Control
- Control Methods: Front panel, IR, RS-232, TCP/IP and web GUI
- TCP/IP Control: Telnet, SSH
- Presets: 8 custom presets
- CEC: Advanced CEC control
- Web GUI: Multiple user accounts with individual permissions
- Third-Party Integration: Drivers available for major control brands
Connectivity
- Video Inputs: 8 x HDMI Type A, 19-pin, female
- Video Outputs: 8 x HDMI Type A, 19-pin, female
- Audio Outputs: 8 x Optical Digital (S/PDIF), 8 x 5-pin Phoenix (2ch balanced/unbalanced analogue audio)
- RS-232: 1 x 3-pin Phoenix
- TCP/IP: 1 x RJ45
- IR Control: 1 x 3.5mm jack, 5V or 12V selectable
Power
- Power Supply: 24V 2.71A DC, 4-pin DIN (PS242.71)
Weight and Dimensions
- Casing Dimensions (W x D x H): 437mm x 226mm x 44mm
- Dimensions Including Connections & Feet (W x D x H): 437mm x 226mm x 54mm
In the Box
- 1 x CMX88CS-V2
- 1 x 24V 2.71A DC power supply
- 1 x Remote control
- 1 x Rack mounting kit
- 1 x Quick Reference Card
About Blustream
Australian-founded maker of HDMI matrices, HDBaseT extenders and AV distribution products for home and commercial installs.
Blustream started in Melbourne, Australia, and now has offices in the UK and the United States as well. It specialises in HDBaseT matrices and extenders, and its range also covers HDMI switching, audio converters, Dante audio, amplifiers and video over IP. You can use it to route sources to screens across a building.
Read more about BlustreamShow less
HDMI matrices and switches route your sources
Blustream's HDMI matrices and switches let you send several sources to several displays. The range includes 4x4 matrices such as the MX44AB-V2 and smaller switches such as the SW21AB-V2 and SW41AB-V2. A presentation switch, the MFP112, suits meeting rooms. Check the specification for the inputs and outputs.
HDBaseT extenders carry signals over distance
HDBaseT sends video, audio and control over a single network cable, which lets you place a display well away from its source. Blustream lists receivers such as the RX70AMP, which includes an amplifier, and extender sets such as the HEX100HDVGA-KIT.
Converters and cables fill the gaps
Audio extractors and converters, including the CAT100AU, DAC12AU, HD11AU, ADC11AU and DIG11AU, let you pull audio out of an HDMI signal or convert its format. Micro HDMI cables are also available, which helps when a source has only a micro connector.
Specifications
General
- Brand: Blustream
- Model: CMX88CS-V2
- Series: Contractor Series
- Product Type: 8x8 4K HDMI 2.0 Matrix
- Configuration: 8 HDMI inputs, independently routable to 8 HDMI outputs
- Form Factor: 1U, 19" rack mount (mounting kit included)
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Video
- HDMI Specification: HDMI 2.0, 18Gbps
- Maximum Resolution: 4K UHD 60Hz 4:4:4
- HDR: Supported
- HDCP: HDCP 2.2 compliant
- Supported Resolutions: All industry standard resolutions including VGA-WUXGA and 480i-4K
- Down-Conversion: Per output, to 4K 60Hz 4:2:0 or 1080p for lower-resolution displays, while other outputs keep the original 4K signal
- Output Scaling Modes: Bypass, Force 1080p, Match TV
- EDID Management: Advanced, per source input (preset EDIDs, 2 user EDID slots, copy from connected display)
Audio
- HDMI Audio: Bitstream passthrough of multichannel surround sound, including object-based audio formats, in line with HDMI specifications
- Audio Breakout: HDMI zone audio to balanced/unbalanced analogue L/R and optical digital outputs concurrently
- Audio Breakout Control: Enable/disable per output
Control
- Control Methods: Front panel, IR, RS-232, TCP/IP and web GUI
- TCP/IP Control: Telnet, SSH
- Presets: 8 custom presets
- CEC: Advanced CEC control
- Web GUI: Multiple user accounts with individual permissions
- Third-Party Integration: Drivers available for major control brands
Connectivity
- Video Inputs: 8 x HDMI Type A, 19-pin, female
- Video Outputs: 8 x HDMI Type A, 19-pin, female
- Audio Outputs: 8 x Optical Digital (S/PDIF), 8 x 5-pin Phoenix (2ch balanced/unbalanced analogue audio)
- RS-232: 1 x 3-pin Phoenix
- TCP/IP: 1 x RJ45
- IR Control: 1 x 3.5mm jack, 5V or 12V selectable
Power
- Power Supply: 24V 2.71A DC, 4-pin DIN (PS242.71)
Weight and Dimensions
- Casing Dimensions (W x D x H): 437mm x 226mm x 44mm
- Dimensions Including Connections & Feet (W x D x H): 437mm x 226mm x 54mm
In the Box
- 1 x CMX88CS-V2
- 1 x 24V 2.71A DC power supply
- 1 x Remote control
- 1 x Rack mounting kit
- 1 x Quick Reference Card
