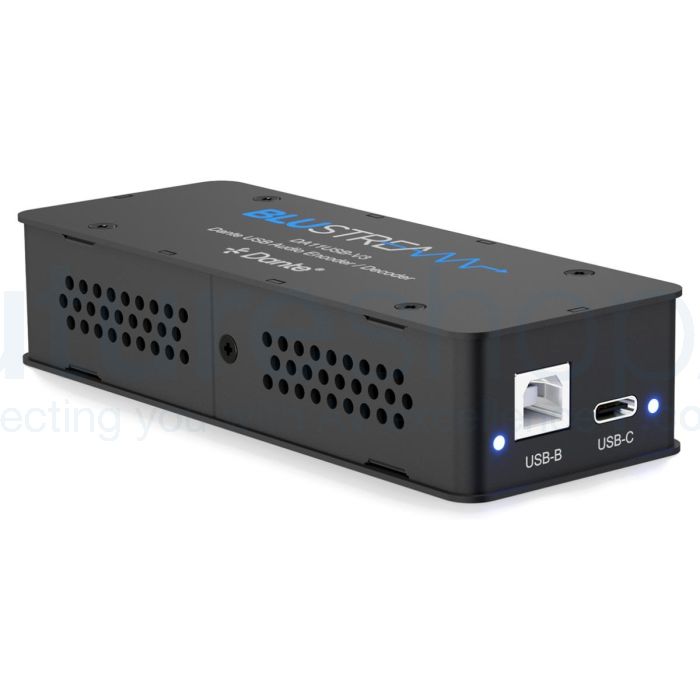

Blustream DA11USB-V3 USB Dante® Audio Encoder / Decoder

Item code: DA11USB-V3

The Blustream DA11USB-V3 is a USB Dante® audio encoder and decoder that links a computer to a Dante audio network in both directions. Built on Audinate's DEP platform, it sends two channels of USB audio onto the network and returns two Dante channels…
£213.60
£178.00
✓ Save %

Lowest price in the last 30 days:

New 12 Months warranty 30-day returns
Outside the UK? VAT removed automatically at checkout. Pre-paid duties available for selected destinations.
Qty:

SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

£178.00 ex. VAT
Available — built to order, dispatches in 3 - 5 Days
Delivery: Royal Mail Tracked 24 FREE  ·  DPD Next Day from £8.95  ·  DPD Saturday from £12.95
Order before 4pm (Mon–Fri) for same-day dispatch
Our promise: 30-day returns · Free burn-in · Built in our UK workshop · 12 Months warranty · Expert support on every order

Blustream DA11USB-V3 USB Dante® Audio Encoder / Decoder



The Blustream DA11USB-V3 is a compact USB Dante® audio encoder and decoder that connects a computer, laptop or other USB audio host directly to a Dante audio network. Working in both directions at once, the DA11USB-V3 takes two channels of USB audio and places them onto the network as a Dante stream, while returning two channels from the network to the USB host at the same time. That makes it a straightforward way to bring playback software, conferencing applications, background music or a recording workstation into a networked audio installation, whether in a meeting room, a venue, a studio or a larger residential system. This third-generation model is built on an upgraded board design, which Blustream says delivers improved digital conversion and signal clarity.

At the heart of the DA11USB-V3 is Audinate's DEP (Dante Embedded Platform), which also allows direct API control of the unit through its Dante network interface. Dante audio runs at 44.1kHz, 48kHz, 88.2kHz or 96kHz at 24-bit, and device latency can be set to 2, 3, 4, 5 or 10ms in Dante Controller to balance timing against network size and complexity. Support for AES67 RTP audio transport lets the DA11USB-V3 exchange audio with AES67-compatible equipment as well as Dante devices, widening its place in mixed audio networks. Blustream describes the unit as plug-and-play: it presents itself to the connected computer as a standard USB audio device compliant with the USB Audio Device Class specification.

Two USB connections are fitted, a USB Type-B and a USB-C port, and both a USB-A to USB-B cable and a USB-C to USB-C cable (1m each) are supplied, so almost any computer can be connected without an adaptor. The active USB port is chosen with the SELECT button on the side panel, through the built-in web interface or by API command, and the web interface offers manual, port lock and input sensing modes for fixed installations. A single RJ45 socket carries the 100Mbps Dante connection and also powers the DA11USB-V3 by IEEE 802.3af PoE from a PoE network switch; where the switch does not provide PoE, the unit can draw 5V power from the USB host instead. The black casing measures 120mm wide, 26mm high and 47mm deep without feet, small enough to sit behind a desk, on a rack shelf or beside a PC.



What Blustream say about the DA11USB-V3

Our DA11USB-V3 delivers enhanced audio performance through an upgraded board design, offering improved digital conversion and exceptional signal clarity. It simultaneously encodes two channels of USB audio into a Dante® digital signal and decodes Dante® back to two channels of USB audio using advanced DEP (Dante Embedded Platform) technology. The result is superior audio reproduction and reliable distribution for a wide range of professional applications.

Designed for flexibility, the DA11USB-V3 includes both USB Type-B and USB-C connections, selectable via a side-panel button or API command. This plug-and-play device can be powered via PoE or 5V USB and also supports AES67 RTP audio transport, ensuring broad interoperability across modern audio networks.

Key Features

  • Encodes 2ch USB audio to Dante® digital signal
  • Decodes a Dante® digital signal to 2ch USB audio
  • Selectable USB audio between USB Type-B and USB-C inputs
  • Utilises DEP (Dante® Embedded Platform) technology for direct API control via Dante network interface
  • Compliant with USB Audio Device Class Specification V1.0
  • Supports 44.1, 48, 88.2 & 96 KHz sample rates @ 24 Bit
  • Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
  • Supports AES67 RTP audio transport
  • Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
  • Supports power via 5V USB for when network switch does not support PoE

Specifications

General
  • Brand: Blustream
  • Model: DA11USB-V3
  • Product Type: USB Dante® Audio Encoder / Decoder
  • Colour: Black
  • Dante Platform: DEP (Dante® Embedded Platform), direct API control via the Dante network interface
  • Configuration: Dante Controller and built-in web GUI (network, Telnet and mDNS settings, users and permissions, firmware updates)
  • USB Port Selection: SELECT button on side panel, web GUI or API command
  • Port Select Modes: Manual, Port Lock, Input Sensing
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Regulatory: FCC Part 15 Class B, CAN ICES-003 (B)/NMB-003(B)
Audio
  • Encoding: 2ch USB audio to Dante® digital signal
  • Decoding: Dante® digital signal to 2ch USB audio
  • Dante Sample Rates: 44.1kHz, 48kHz, 88.2kHz and 96kHz at 24-bit
  • Dante Latency: 2, 3, 4, 5 or 10ms (configurable in Dante® Controller)
  • AES67: RTP audio transport supported
  • USB Audio: USB Audio Device Class compliant, plug-and-play
Connectivity
  • Dante Network: 1 x RJ45, female (100Mbps Dante® network, PoE)
  • USB: 1 x USB Type-B, female
  • USB: 1 x USB Type-C, female
  • Controls: SELECT button (USB port), Reset button
Power
  • Power Supply: Class 0 IEEE 802.3af PoE, or 5V USB from the host
Weight and Dimensions
  • Casing Dimensions (W x H x D): 120mm x 26mm x 47mm (without feet)
  • Shipping Weight: 0.3 kg
In the Box
  • 1 x DA11USB-V3
  • 1 x USB-A to USB-B 1m cable
  • 1 x USB-C to USB-C 1m cable
  • 1 x Quick Reference Card

About Blustream

Australian-founded maker of HDMI matrices, HDBaseT extenders and AV distribution products for home and commercial installs.

Blustream started in Melbourne, Australia, and now has offices in the UK and the United States as well. It specialises in HDBaseT matrices and extenders, and its range also covers HDMI switching, audio converters, Dante audio, amplifiers and video over IP. You can use it to route sources to screens across a building.

Read more about BlustreamShow less

HDMI matrices and switches route your sources

Blustream's HDMI matrices and switches let you send several sources to several displays. The range includes 4x4 matrices such as the MX44AB-V2 and smaller switches such as the SW21AB-V2 and SW41AB-V2. A presentation switch, the MFP112, suits meeting rooms. Check the specification for the inputs and outputs.

HDBaseT extenders carry signals over distance

HDBaseT sends video, audio and control over a single network cable, which lets you place a display well away from its source. Blustream lists receivers such as the RX70AMP, which includes an amplifier, and extender sets such as the HEX100HDVGA-KIT.

Converters and cables fill the gaps

Audio extractors and converters, including the CAT100AU, DAC12AU, HD11AU, ADC11AU and DIG11AU, let you pull audio out of an HDMI signal or convert its format. Micro HDMI cables are also available, which helps when a source has only a micro connector.

Shop all Blustream →

Specifications

General
  • Brand: Blustream
  • Model: DA11USB-V3
  • Product Type: USB Dante® Audio Encoder / Decoder
  • Colour: Black
  • Dante Platform: DEP (Dante® Embedded Platform), direct API control via the Dante network interface
  • Configuration: Dante Controller and built-in web GUI (network, Telnet and mDNS settings, users and permissions, firmware updates)
  • USB Port Selection: SELECT button on side panel, web GUI or API command
  • Port Select Modes: Manual, Port Lock, Input Sensing
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Regulatory: FCC Part 15 Class B, CAN ICES-003 (B)/NMB-003(B)
Audio
  • Encoding: 2ch USB audio to Dante® digital signal
  • Decoding: Dante® digital signal to 2ch USB audio
  • Dante Sample Rates: 44.1kHz, 48kHz, 88.2kHz and 96kHz at 24-bit
  • Dante Latency: 2, 3, 4, 5 or 10ms (configurable in Dante® Controller)
  • AES67: RTP audio transport supported
  • USB Audio: USB Audio Device Class compliant, plug-and-play
Connectivity
  • Dante Network: 1 x RJ45, female (100Mbps Dante® network, PoE)
  • USB: 1 x USB Type-B, female
  • USB: 1 x USB Type-C, female
  • Controls: SELECT button (USB port), Reset button
Power
  • Power Supply: Class 0 IEEE 802.3af PoE, or 5V USB from the host
Weight and Dimensions
  • Casing Dimensions (W x H x D): 120mm x 26mm x 47mm (without feet)
  • Shipping Weight: 0.3 kg
In the Box
  • 1 x DA11USB-V3
  • 1 x USB-A to USB-B 1m cable
  • 1 x USB-C to USB-C 1m cable
  • 1 x Quick Reference Card
