Blustream HEX150CS-KIT HDBaseT™ CSC Extender Set Supporting HDMI2.0 4K60Hz 4:4:4 up to 100m (1080p up to 150m)
£661.00 £550.83
SKU
HEX150CS-KIT
Free UK Delivery
5 Years
New
24 hours
Blustream's Platinum Range of HDBaseT™ products offer the very best in performance and flexibility. The HEX150CS-KIT extender set is an industry leading HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilising CSC technology with video down conversion. The HEX150CS-KIT supports HDMI, bi-directional IR, RS-232 and PoH (PoE) up to lengths of 150m over a single CAT cable. The HEX150CS-KIT also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet pass through.
Blustream HEX150CS-KIT HDBaseT™ CSC Extender Set Supporting HDMI2.0 4K60Hz 4:4:4 up to 100m (1080p up to 150m)
Blustream HEX150CS-KIT HDBaseT™ CSC Extender Set is a remarkable addition to Blustream's Platinum Range of HDBaseT™ products, offering exceptional performance and versatility. This extender set delivers cutting-edge HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution with CSC technology and video down conversion. With its impressive capabilities, the HEX150CS-KIT allows for extended transmission distances of up to 150m over a single CAT cable while maintaining high-quality audio and video signals.
One of the standout features of the HEX150CS-KIT is its Advanced Colour Space Conversion (CSC) technology, which supports the HDMI2.0 18Gbps specification, including HDR. This ensures that your content is delivered with stunning clarity and colour accuracy. Moreover, the video down-conversion on outputs allows displays with lower resolution capabilities to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showcasing the maximum original 4K UHD resolution on the remaining video outputs.
The HEX150CS-KIT provides extensive compatibility with various video resolutions, ranging from VGA-WUXGA to 480i-4K, ensuring seamless integration with a wide range of display devices. It supports 4K 60Hz 4:4:4 UHD video transmission up to 100m, making it an ideal solution for large-scale installations. Additionally, the extender set allows for HDMI 1080p video extension up to an impressive 150m in HDBaseT™ long-reach mode.
This extender set supports all known digital HDMI audio formats, including Dolby TrueHD, Atmos, DTS-HD Master Audio, and DTS:X transmissions, delivering an immersive audio experience that complements the exceptional video quality. With HDMI re-clocking on the HDBaseT™ Receiver, the HEX150CS-KIT helps resolve common HDMI issues related to HDCP, compatibility, and handshaking.
For added flexibility, the extender set offers HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently, allowing you to connect easily to various audio systems. It also supports bi-directional 10/100BaseT Ethernet pass-through, enabling network connectivity for compatible devices. Bi-directional RS-232 and IR pass-through capabilities further enhance the control options for your audiovisual setup.
The HEX150CS-KIT is supplied with a Blustream 5V IR receiver and emitter, ensuring convenient installation and setup. It supports bi-directional PoH (Power over HDBaseT™), allowing the extender set to be powered from either the transmitter or receiver end, eliminating the need for additional power sources.
Advanced EDID management is included, ensuring optimal compatibility and resolution settings for connected displays. The extender set is also HDCP2.2 compliant, ensuring secure and reliable transmission of copyright-protected content.
In conclusion, the Blustream HEX150CS-KIT HDBaseT™ CSC Extender Set is a cutting-edge solution that combines performance, flexibility, and advanced features. With its impressive transmission distances, comprehensive audio and video support, and convenient control options, it is an ideal choice for professional installations where high-quality signal distribution is paramount. Upgrade your audiovisual setup with the HEX150CS-KIT and experience the next level of visual and auditory excellence.
Features
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
- Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports 4K 60Hz 4:4:4 UHD video up to 100m
- Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
- HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
- HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
- Supports bi-directional 10/100BaseT Ethernet pass through
- Supports bi-directional RS-232 pass through
- Supports bi-directional IR pass through
- Supplied with Blustream 5V IR receiver and emitter
- Bi-directional PoH (Power over HDBaseT™) to power extenders from either transmitter or receiver end
- Advanced EDID management
- HDCP2.2 compliant
Specification
- HEX150CS-TX transmitter
- Video Input Connectors: 1x HDMI Type A, female
- Video Output Connectors: 1x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
- RS-232 serial port: 1x DB-9 female
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- EDID DIP switch: 4-pin

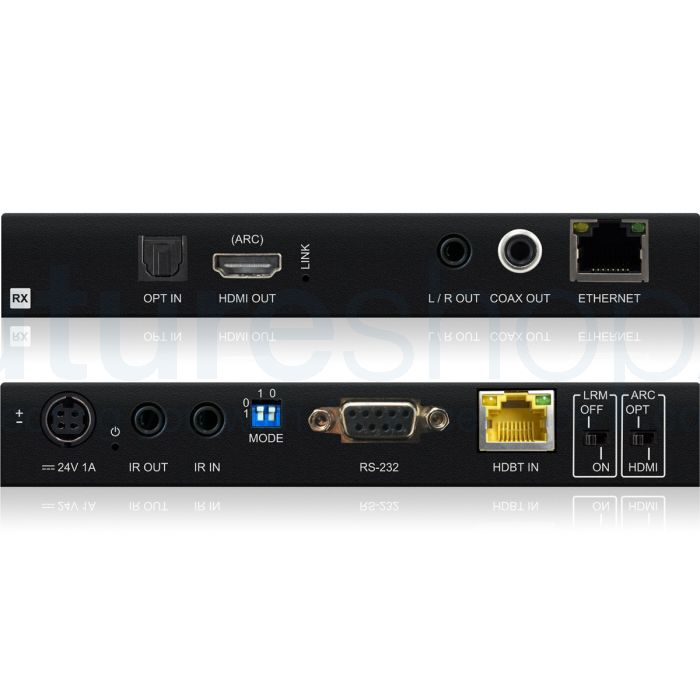

- HEX150CS-RX receiver
- Video Input Connectors: 1x HDBaseT™ RJ45 connector
- Video Output Connectors: 1x HDMI Type A, female
- RS-232 serial port: 1x DB-9 female
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right)
- Power Supply: 24V / 1A DC, screw type connector
- Power Consumption: 12.7W
- Transmitter Dimensions (WxDxH): 156 x 123 x 23mm (without connections)
- Transmitter Dimensions (WxDxH): 156 x 135 x 23mm (with connections)
- Receiver Dimensions (WxDxH): 148 x 134 x 22mm (without connections)
- Receiver Dimensions (WxDxH): 148 x 153 x 22mm (with connections)
- Shipping Weight: 1.6kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Mounting kits included
Contents
- 1x HEX150CS-TX
- 1x HEX150CS-RX
- 2x Mounting brackets
- 1x 24V / 1A power supply
- 1x IR emitter
- 1x IR receiver
- 1x Quick Reference Guide
 |
 |
 |
 |
 |
 |
 |
 |
About Blustream
Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.
Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.
Specification
- HEX150CS-TX transmitter
- Video Input Connectors: 1x HDMI Type A, female
- Video Output Connectors: 1x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
- RS-232 serial port: 1x DB-9 female
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- EDID DIP switch: 4-pin
- HEX150CS-RX receiver
- Video Input Connectors: 1x HDBaseT™ RJ45 connector
- Video Output Connectors: 1x HDMI Type A, female
- RS-232 serial port: 1x DB-9 female
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right)
- Power Supply: 24V / 1A DC, screw type connector
- Power Consumption: 12.7W
- Transmitter Dimensions (WxDxH): 156 x 123 x 23mm (without connections)
- Transmitter Dimensions (WxDxH): 156 x 135 x 23mm (with connections)
- Receiver Dimensions (WxDxH): 148 x 134 x 22mm (without connections)
- Receiver Dimensions (WxDxH): 148 x 153 x 22mm (with connections)
- Shipping Weight: 1.6kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Mounting kits included
Contents
- 1x HEX150CS-TX
- 1x HEX150CS-RX
- 2x Mounting brackets
- 1x 24V / 1A power supply
- 1x IR emitter
- 1x IR receiver
- 1x Quick Reference Guide
