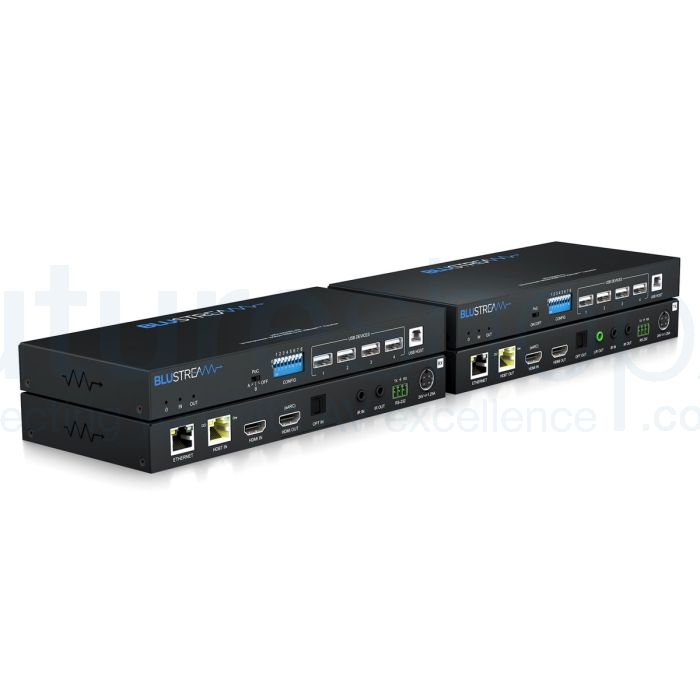

Blustream HEX18GARC-KIT Advanced HDBaseT™ Extender Set
£810.00 £675.00
SKU
HEX18GARC-KIT
Free UK Delivery
5 Years
New
48 Hours
The HEX18GARC-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.
The HEX18GARC-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.
Blustream HEX18GARC-KIT Advanced HDBaseT™ Extender Set supporting Uncompressed and Unconverted HDMI 2.0 4K 60Hz 4:4:4 up to 100m, eARC / ARC / Optical Audio Return, 1Gb LAN, USB/KVM, Bi-directional IR / RS-232, HDCP 2.3
Introducing the Blustream HEX18GARC-KIT Advanced HDBaseT™ Extender Set, a cutting-edge solution that takes HDMI distribution to new heights. This industry-leading extender set utilizes the latest HDBaseT™ technology to provide uncompressed and unconverted HDMI 2.0 4K 60Hz 4:4:4 video and audio transmission up to 100 meters.
Immerse yourself in the ultimate picture quality with support for the latest HDR resolutions, including HDR10/10+ and Dolby Vision. Experience breathtaking visuals with vibrant colours, enhanced contrast, and stunning detail, making it perfect for critical viewing areas where image fidelity is paramount.
The HEX18GARC-KIT goes beyond traditional extenders by offering a range of enhanced features. It supports bi-directional IR and RS-232 control, allowing seamless interaction with your AV devices. With Power over Cable (PoC) capability, you can conveniently power the extenders from either the transmitter or receiver end, reducing clutter and simplifying installation.
This advanced extender set also incorporates KVM (Keyboard, Video, Mouse) functionality, enabling you to control your remote devices effortlessly. The inclusion of eARC (Enhanced Audio Return Channel) and ARC (Audio Return Channel) support ensures optimal audio connectivity, allowing for audio return via HDMI or optical (S/PDIF) outputs.
In addition to its exceptional video and audio capabilities, the HEX18GARC-KIT provides a 1Gb Ethernet pass-through, allowing you to extend your network connection alongside your HDMI signal. This feature ensures seamless integration of network-enabled devices, providing convenient access to online content and IP-based services.
The HEX18GARC-KIT is engineered for versatility and compatibility. It supports all industry-standard video resolutions, including VGA-WUXGA and 480i-4K, accommodating a wide range of display devices. With HDMI re-clocking on the HDBaseT™ Receiver, compatibility issues and handshaking problems are minimized, delivering a stable and reliable signal transmission.
Blustream takes pride in delivering state-of-the-art products that meet the highest standards. The HEX18GARC-KIT features robust construction and exceptional build quality, ensuring long-term reliability and performance. It is HDCP 2.3, HDCP 2.2, and HDCP 1.4 compliant, providing compatibility with a wide range of content sources.
Unlock the full potential of your AV system with the Blustream HEX18GARC-KIT Advanced HDBaseT™ Extender Set. Experience unparalleled HDMI distribution enhanced audio connectivity, and versatile control options. Trust Blustream to deliver the ultimate AV solution for your demanding applications.
*Please note that the transmission distance is subject to video format, cable type, and installation environment. We recommend using a minimum of CAT6A cabling for optimal performance.
Features
- Advanced uncompressed, unconverted, HDMI over HDBaseT™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
- Supports HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video
- Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
- Supports HDMI video distribution up to 100m*
- Features 1x HDMI loop-out on HEX18GARC-TX for integrating local displays or cascading to multiple devices
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility, and handshaking issues
- Supports eARC (Enhanced Audio Return Channel) from display via HDMI, and standard ARC from HDMI and Optical (S/PDIF) digital inputs
- Supports audio return to HDMI (eARC compatible), optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCM only)
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmissions
- Features USB 2.0 for KVM with speeds of up to 350Mbps
- Bi-directional Ethernet (1Gb), IR, & RS-232 pass through
- Supplied with Blustream IR receiver and emitter
- Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
- Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4
- *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
Specification
HEX18GARC-TX
- Video Input Connectors: 1 x HDMI Type A, female
- Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
- Audio Output Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (S/PDIF)
- Ethernet port: 1 x RJ45 connector
- RS-232 serial port: 1 x 3-pin Phoenix connector
- USB/KVM Port: 1 x USB Type-B, 4 x USB Type-A
- IR Input ports: 1 x 3.5mm stereo jack
- IR Output ports: 1 x 3.5mm mono jack
- CTRL: 8-PIN DIP switch
HEX18GARC-RX
- Video Input Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
- Video Output Connectors: 1 x HDMI Type A, female (reserved for future use)
- Audio Input Connectors: 1 x Optical (S/PDIF)
- Ethernet port: 1 x RJ45 connector
- RS-232 serial port: 1 x 3-pin Phoenix connector
- USB/KVM Port: 1 x USB Type-B, 4 x USB Type-A
- IR Input ports: 1 x 3.5mm stereo jack
- IR Output ports: 1 x 3.5mm mono jack
- CTRL: 8-PIN DIP switch
- Casing Dimensions (W x D x H ): 220mm x 100mm x 25mm (TX/RX)
- Shipping Weight (kit): 1.8kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Mounting kits included
- Power Supply: 1 x 24V/1.25A DC
About Blustream
Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.
Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.
HEX18GARC-TX
- Video Input Connectors: 1 x HDMI Type A, female
- Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
- Audio Output Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1x Optical (S/PDIF)
- Ethernet port: 1 x RJ45 connector
- RS-232 serial port: 1 x 3-pin Phoenix connector
- USB/KVM Port: 1 x USB Type-B, 4 x USB Type-A
- IR Input ports: 1 x 3.5mm stereo jack
- IR Output ports: 1 x 3.5mm mono jack
- CTRL: 8-PIN DIP switch
HEX18GARC-RX
- Video Input Connectors: 1 x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
- Video Output Connectors: 1 x HDMI Type A, female (reserved for future use)
- Audio Input Connectors: 1 x Optical (S/PDIF)
- Ethernet port: 1 x RJ45 connector
- RS-232 serial port: 1 x 3-pin Phoenix connector
- USB/KVM Port: 1 x USB Type-B, 4 x USB Type-A
- IR Input ports: 1 x 3.5mm stereo jack
- IR Output ports: 1 x 3.5mm mono jack
- CTRL: 8-PIN DIP switch
- Casing Dimensions (W x D x H ): 220mm x 100mm x 25mm (TX/RX)
- Shipping Weight (kit): 1.8kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Mounting kits included
- Power Supply: 1 x 24V/1.25A DC
