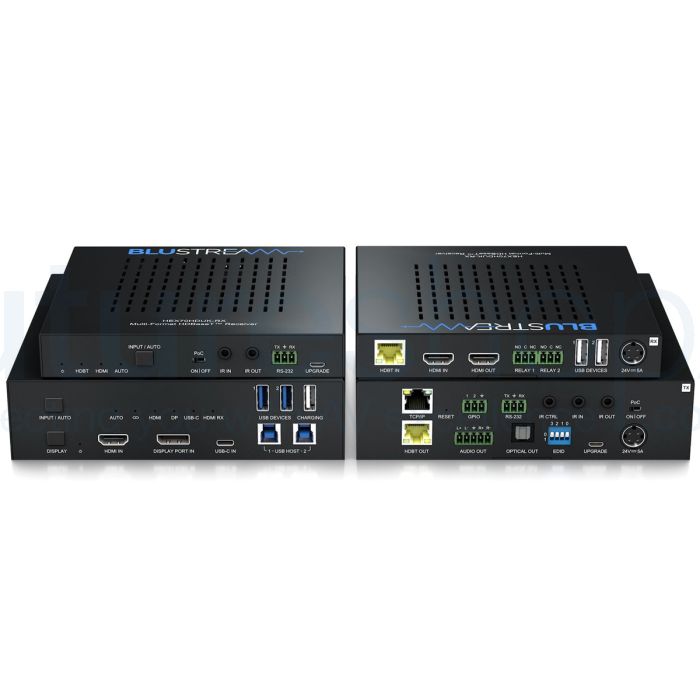

Blustream HEX70HDUK-KIT Multi Format HDBaseT™ Extender Set Supporting 4K up to 40m (1080p up to 70m) - Switchable HDMI, DisplayPort™ and USB-C Inputs with Auto Signal Sensing / Switching, Local HDMI Input on RX, Bi-directional IR, IP & RS-232 Control
The Blustream HEX70HDUK-KIT Multi Format HDBaseT™ Extender Set is a cutting-edge solution for high-quality video and audio distribution. This advanced extender set supports 4K resolution up to 40 meters and 1080p resolution up to an impressive 70 meters, making it perfect for a wide range of applications.
One of the standout features of the HEX70HDUK-KIT is its multi-format capability. It supports various input options, including HDMI, DisplayPort™, and USB-C, allowing you to connect different sources effortlessly. The extender set also features auto signal sensing and switching, which means it intelligently detects the active input source and automatically switches to it, eliminating the need for manual intervention.
Equipped with the latest HDCP2.2 technology and CSC (Colour Space Conversion) technology, the HEX70HDUK-KIT ensures exceptional video quality. The Colour Space Conversion technology is particularly notable as it enables the transmission of 4K HDR signals over the limited infrastructure of HDBaseT™. By converting the colour space while maintaining the native resolution and frame rate, this technology optimizes the signal for smooth and accurate transmission.
In addition to its impressive video capabilities, the HEX70HDUK-KIT offers a range of enhanced features. It provides a USB 2.0 extension, allowing you to extend USB devices and peripherals over the same CAT cable. The HDBaseT™ Receiver even includes a local HDMI input, enabling you to connect a source device directly to the display without the need for additional cables.
Controlling and configuring the extender set is a breeze with the web-GUI interface module. You can easily manage the settings and make adjustments according to your requirements. The HEX70HDUK-KIT also supports control via the front panel, IR, RS-232, and TCP/IP, offering flexibility in how you interact with the system. The PoC (Power over Cable) feature eliminates the need for separate power supplies, simplifying installation and reducing cable clutter.
Advanced EDID and HDCP management ensure compatibility and seamless operation with different sources and displays. The extender set supports a wide range of audio formats, including Dolby TrueHD, Atmos, and DTS-HD Master Audio, ensuring an immersive audio experience to complement the stunning video quality.
With its robust and feature-rich design, the HEX70HDUK-KIT is an ideal choice for professional AV installations, home theatres, conference rooms, and other environments where high-quality video and audio distribution is essential. Its advanced technology, easy control options, and reliable performance make it a standout solution for demanding applications.
Please note that the HEX70HDUK-KIT does not support HDR10+ or the dynamic variation of Dolby Vision due to the specific encoding requirements of these formats. However, it provides exceptional performance with other HDR formats, delivering vivid and lifelike visuals. The analogue audio breakout feature supports 2-channel PCM audio and provides options for analogue L/R audio and Coaxial digital (S/PDIF) outputs.
Experience the future of AV distribution with the Blustream HEX70HDUK-KIT Multi Format HDBaseT™ Extender Set. Transform your entertainment or professional setup into a visually stunning and immersive experience with this feature-packed solution.
Colour Space Conversion (CSC) Technology in HDBaseT™
Due to the data rate of HDBaseT™ technology being capped at 10.2Gbps, it is unable to pass the latest native 4K UHD resolutions of 4K 60Hz 4:4:4. There is now a requirement to integrate video resolutions with data speeds up to 18Gbps across a multi-zone AV environment. Blustream have implemented CSC (Colour Space Conversion) technology into our latest products to ensure 4K HDR signals can now be supported over the limited infrastructure of HDBaseT™. Colour Space Conversion reduces the data rate of the HDMI signal by converting the colour space from 4:4:4 or 4:2:2 to a lower format. Within Colour Space Conversion technology the native resolution and frame rate remain constant from end to end. The only part of the signal that is converted during transmission is the colour. Blustream CSC products do not support HDR10+ or the dynamic variation of Dolby Vision due to the way these specific variations of dynamic HDR (dHDR) are encoded. These codecs transmit repeated metadata packets throughout the transmission of any media making it impossible at this stage to convert in the same way using CSC technology.
Features
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
- Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ transmitter with manual or auto source selection
- Features 1 x local HDMI input on the HDBaseT™ receiver for connection of a source local to the display
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Extends HDMI 1080p up to a distance of 70m over single CAT cable
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)
- Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4, 4K 30Hz 4:4:4 DP1.2
- Features 2 x USB-Type A devices (RX - peripherals), 2 x USB-Type A devices (TX - peripherals) and 2 x USB Type-B (TX - host source specific) that support a combined data transmission bandwidth of up to 480Mbps
- USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device
- Independent USB Type-A connection to support charging only of devices up to 5V 2A
- Audio breakout to analogue L/R audio and Coaxial digital (S/PDIF) outputs concurrently**
- Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
- Bi-directional IR pass-through
- Auto display on / off feature allowing control of display at the HDBaseT™ receiver via CEC or RS-232
- Web interface module for control and configuration of HEX70HDU-KIT
- Control via front panel, IR, RS-232 or TCP/IP
- Advanced EDID and HDCP management
*USB-C video support is limited to 4K 60Hz 4:2:0 when charging feature is activated by the source device
**Analogue audio breakout supports 2ch PCM only
Specification
HEX70HDUK-TX:
- Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort™
- Video Output Connectors: 1 x HDBaseT™ RJ45 connector
- RS-232 Serial Port: 1 x 3-Pin Phoenix connector
- TCP/IP Control: 1 x RJ45, female
- IR Input Ports: 2 x 3.5mm stereo jack
- IR Output Ports: 1 x 3.5mm mono jack
- USB Ports: 3 x USB Type-A (1 x for charging only), 2 x USB Type-B
- EDID: 4-pin DIP switch
- Product Upgrade: 1 x Micro USB, female
- Local Power Input: 1 x 24V/5A 4-pin DIN connector
- Casing Dimensions (W x H x D): 183mm x 44mm x 173mm
HEX70HDU-RX:
- Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector
- Video Output Connectors: 1 x HDMI Type A, 19-pin, female
- RS-232 Serial Port: 1 x 3-pin Phoenix connector
- Relay Control: 2 x 3-pin Phoenix connector
- IR Input Ports: 1 x 3.5mm stereo jack
- IR Output Ports: 1 x 3.5mm mono jack
- USB Ports: 2 x USB Type-A
- EDID: 4-pin DIP switch
- Product Upgrade: 1 x Micro USB, female
- Local Power Input: 1 x 24V/5A 4-pin DIN connector
- Casing Dimensions (W x H x D): 155mm x 24mm x 155mm
- Shipping Weight: 4kg
- Power Supply: 24V/5A 4-pin DIN connector
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature: -4°F to 140°F (-25°C to +70°C)
About Blustream
Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.
Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.
