Blustream HMXL66ARC 6x6 HDBaseT™ CSC ARC Matrix - 70m (4K 60Hz 4:4:4 up to 40m)

Blustream HMXL66ARC 6x6 HDBaseT™ CSC ARC Matrix - 70m (4K 60Hz 4:4:4 up to 40m)

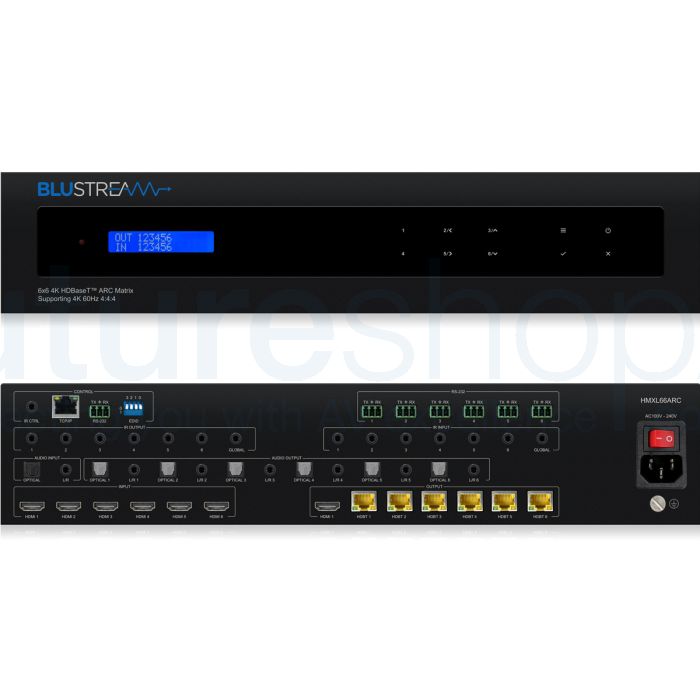

The Blustream HMXL66ARC 6x6 HDBaseT™ CSC ARC Matrix sets a new standard for advanced audio integration within our Essential range of 4K video matrix solutions. Engineered to perfection, the HMXL66ARC is a 6x6 HDMI 2.0 4K 60Hz 4:4:4 matrix that employs Colour Space Conversion (CSC) technology to transmit 18Gbps HDMI signals over distances of up to 40m (1080p up to 70m).

One of the standout features of the HMXL66ARC is its enhanced audio routing capabilities, made possible by the integrated 20x6 audio matrix. This allows seamless embedding and routing of audio from both displays and sources, giving users complete control over their audio experience.

The matrix offers versatile connectivity options with 6 HDMI inputs that can be independently routed to 6 HDBaseT™ outputs. Output 1 even provides simultaneous HDMI and HDBaseT™ output for added convenience. With video smart scaling on the HDBaseT™ outputs, displays that support lower video resolutions can still receive impeccable 4K 60Hz 4:4:4 content while maintaining the maximum original 4K UHD resolution on other video outputs.

Supporting 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m, the HMXL66ARC ensures impeccable visual quality and optimal signal transmission. The extensive audio matrix offers various audio source inputs, including audio breakout from HDMI source inputs, audio breakout from zone outputs, ARC from zone outputs, as well as optical and analog audio inputs. It supports popular HDMI audio formats such as Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio, delivering an immersive and captivating sound experience.

Configuration and control of the matrix are made effortless with the built-in web browser interface, allowing seamless integration into your existing setup. The HMXL66ARC also supports bi-directional IR and RS-232 on all HDBaseT™ outputs, ensuring smooth communication and integration with third-party control systems. Control options include front panel, IR, iOS/Android App, RS-232, and TCP/IP.

Furthermore, the matrix supports 24V Power over Cable (PoC) to power compatible Blustream RX70CS receivers, eliminating the need for additional power supplies. It comes with Blustream IR receivers and emitters, offering convenience and ease of use.

Equipped with advanced EDID management and HDCP 2.2 compliance, the HMXL66ARC guarantees seamless and secure transmission of high-quality content.

Experience the pinnacle of audio integration and seamless video distribution with the Blustream HMXL66ARC 6x6 HDBaseT™ CSC ARC Matrix. Elevate your audiovisual experience and enjoy unparalleled control and flexibility for your professional installations.

Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*
• Features 6 x HDMI inputs which can be independently routed to 6 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m and 1080p video up to 70m
• 26x6 Audio Matrix independently controllable from video. Audio source inputs include:
• 6 x audio breakout from HDMI source inputs
• 6 x audio breakout from zone outputs
• 6 x ARC from zone outputs*
• 1 x Optical and 1 x Analogue audio input
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports 24V PoC (Power over Cable) to power compatible Blustream RX70CS receivers
• Supplied with Blustream IR receivers and emitters
• Advanced EDID management and HDCP 2.2 compliant

*ARC feature supports HDMI ARC or Optical ARC *PoC, CSC, and ARC feature compatible with RX70CS only

Colour Space Conversion (CSC) Technology in HDBaseT™

Due to the data rate of HDBaseT™ technology being capped at 10.2Gbps, it is unable to pass the latest native 4K UHD resolutions of 4K 60Hz 4:4:4. There is now a requirement to integrate video resolutions with data speeds up to 18Gbps across a multi-zone AV environment. Blustream have implemented CSC (Colour Space Conversion) technology into our latest products to ensure 4K HDR signals can now be supported over the limited infrastructure of HDBaseT™. Colour Space Conversion reduces the data rate of the HDMI signal by converting the colour space from 4:4:4 or 4:2:2 to a lower format. Within Colour Space Conversion technology the native resolution and frame rate remain constant from end to end. The only part of the signal that is converted during transmission is the colour. Blustream CSC products do not support HDR10+ or the dynamic variation of Dolby Vision due to the way these specific variations of dynamic HDR (dHDR) are encoded. These codecs transmit repeated metadata packets throughout the transmission of any media making it impossible at this stage to convert in the same way using CSC technology.

Specification

• Video Input Connectors: 6 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connector, used with RX70CS receiver
• Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo jack), 1 x Optical (S/PDIF)
• Audio Output Connectors: 6 x Analogue audio L/R (3.5mm stereo jack), 6 x Optical (S/PDIF)
• RS-232 Serial Ports: 7 x 3-pin Phoenix connector
• TCP/IP Control: 1 x RJ45, female
• IR Input Ports: 7 x 3.5mm stereo jack
• IR Output Ports: 7 x 3.5mm mono jack
• Rack Mountable: 2U rack height, rack ears included
• Casing Dimensions (WxDxH): 436mm x 400mm x 88mm (without feet)
• Shipping Weight: 10.5kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: Internal 100-240V AC

Box Contents

• 1 x HMXL66ARC
• 1 x Rack Mounting Kit
• 1 x Remote Control
• 6 x IR Emitters
• 7 x IR Receivers
• 1 x Serial Cable - DB9 to 3-pin Phoenix Connector
• 1 x IR Control Cable - 3.5mm-3.5mm Cable
• IEC Power Cable(s)
• 1 x Quick Reference Guide
