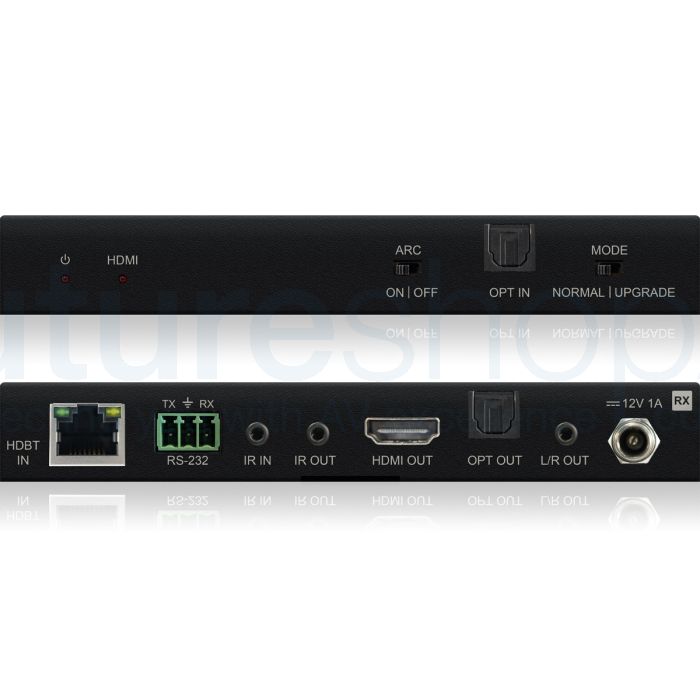

Blustream RX70CS HDBaseT™ CSC Receiver - 4K 60Hz 4:4:4 up to 40m (1080p up to 70m)

£255.00 £212.50
SKU
RX70CS
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Blustream's RX70CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver offers market leading features and outstanding value utilising CSC technology.

Blustream RX70CS HDBaseT™ CSC Receiver - 4K 60Hz 4:4:4 up to 40m (1080p up to 70m)



Introducing the Blustream RX70CS HDBaseT™ CSC Receiver, a powerhouse of features and exceptional value. Designed with HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC technology, this receiver sets a new standard in the market.

The RX70CS Receiver extends HDMI, bi-directional IR, and RS-232 signals over impressive distances. Support for lengths of up to 70m at 1080p and 40m for 4K 18Gbps ensures seamless connectivity and reliable performance.

One of the standout features of the RX70CS Receiver is its support for ARC (Audio Return Channel). When used with compatible Blustream hardware, you can enjoy ARC functionality, enabling audio to be returned from the connected display via HDMI or Optical Toslink inputs. This feature opens up possibilities for immersive audio experiences.

The RX70CS Receiver exceeds expectations with its simultaneous analogue stereo and Optical Toslink audio breakout. This ensures flexibility in audio connectivity, allowing you to integrate the receiver seamlessly into your audio system.

Experience the power of advanced HDBaseT™ technology as the RX70CS Receiver effortlessly distributes video and audio over a single CAT cable. The advanced Colour Space Conversion (CSC) feature supports HDMI 2.0 18Gbps specifications, including HDR, ensuring stunning visual quality.

Whether you're dealing with standard video resolutions like VGA-WUXGA or pushing boundaries with 480i-4K, the RX70CS Receiver has you covered. It extends HDMI 1080p signals up to an impressive 70m over a single CAT cable. Furthermore, it supports 4K 60Hz 4:4:4 UHD video up to 40m, providing uncompromised image quality.

Enjoy seamless integration and control with the RX70CS Receiver. It supports automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p, ensuring compatibility with a wide range of display devices. You have complete control at your fingertips with bi-directional RS-232 pass-through and bi-directional IR pass-through to compatible HDBaseT™ devices.

The RX70CS Receiver is designed with convenience in mind. It supports PoC (Power over Cable) from Blustream matrix or transmitter products, eliminating the need for additional power connections. This streamlines installation and ensures a tidy setup.

Rest assured, knowing that the RX70CS Receiver is HDCP 2.2 compliant, guaranteeing seamless content protection and compatibility. It is the recommended receiver for Blustream AMF42AU, C66CS, and C88CS matrix products, providing optimal performance and compatibility with these systems.

Experience the future of audiovisual connectivity with the Blustream RX70CS HDBaseT™ CSC Receiver. Unlock the full potential of your audiovisual setup and enjoy market-leading features and exceptional value in one reliable device.



Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p
  • Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream transmitter / matrix)
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Bi-directional RS-232 pass-through
  • Supports bi-directional IR pass-through to compatible HDBaseT™ device
  • Supports PoC (Power over Cable) from Blustream matrix or transmitter products
  • HDCP 2.2 support
  • Recommended receiver for the Blustream AMF42AU, C66CS and C88CS matrix products



Specification

  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector,
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female
  • Audio Input Connectors: 1 x Toslink (S/PDIF) - for Optical Audio Return only
  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio - for audio breakout of HDBaseT™ input signal only
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • Mounting Kit: Included
  • Casing Dimensions (without connections) (W x D x H): 140mm x 84mm x 18mm
  • Casing Dimensions (with connections) (W x D x H): 140mm x 98mm x 18mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 1 x 12V/1A DC, screw connector

Contents

  • 1 x RX70CS
  • 1 x Mounting Kit
  • 1 x Quick Reference Guide



Blustream 4K60Hz 4:4:4 Feature Icon Blustream HDBaseT Feature Icon Blustream HD Audio Feature Icon
Blustream 3D Feature Icon Blustream EDID Feature Icon Blustream PoE Feature Icon
Blustream CSC Feature Icon Blustream HDCP2.2 Feature Icon



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specification

  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector,
  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female
  • Audio Input Connectors: 1 x Toslink (S/PDIF) - for Optical Audio Return only
  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio - for audio breakout of HDBaseT™ input signal only
  • RS-232 Serial Port: 1 x 3-pin Phoenix connector
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • Mounting Kit: Included
  • Casing Dimensions (without connections) (W x D x H): 140mm x 84mm x 18mm
  • Casing Dimensions (with connections) (W x D x H): 140mm x 98mm x 18mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)
  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 1 x 12V/1A DC, screw connector

Contents

  • 1 x RX70CS
  • 1 x Mounting Kit
  • 1 x Quick Reference Guide
