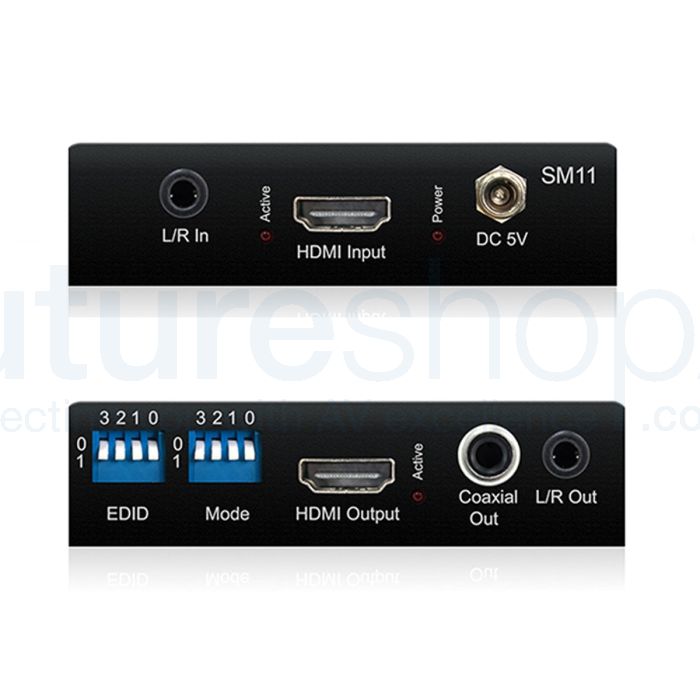

Blustream SM11 Advanced HDMI 2.0 HDCP 2.2 Signal Manager with Audio Embedder / De-Embedder

£205.00 £170.83
SKU
SM11
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Our SM11 HDMI signal manager has been designed to help solve HDMI compatibility, HDCP2.2, clock stretching, EDID and handshaking issues that are becoming common problems when distributing HDMI signals especially 4K.

Blustream Advanced HDMI 2.0 HDCP 2.2 Signal Manager with Audio Embedder / De-Embedder



The Blustream Advanced HDMI 2.0 HDCP 2.2 Signal Manager with Audio Embedder / De-Embedder is a powerful and versatile device that can help solve various HDMI-related issues. It has been designed to help solve HDMI compatibility, HDCP2.2, clock stretching, EDID and handshaking issues that are becoming common problems when distributing HDMI signals, especially 4K. The SM11 also features de-embedding or embedding audio within the HDMI signal path, allowing you to breakout up to 7.1 audio signalsThis signal manager is designed to support full HDMI 2.0 specification 4K UHD video, including 4K @60Hz 4:4:4, and HDCP 2.2 support. It also supports all industry standard video resolutions, including VGA-WUXGA and 480i-4K.

In addition to video, this signal manager also supports pass-through of HDMI audio formats, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master. It can be configured to work as either a HDMI audio de-embedder or an audio embedder, depending on your specific needs. The HDMI audio can be de-embedded to both analogue L/R audio and coaxial digital outputs concurrently (analogue audio supports 2CH PCM only), while the analogue L/R 2CH audio input can be embedded into HDMI output.

With the Blustream Advanced HDMI 2.0 HDCP 2.2 Signal Manager with Audio Embedder / De-Embedder, you can extract audio with or without an actual display connected, as it can act as an HDMI end-point. This device is an ideal solution for those who are experiencing EDID, HDCP, compatibility and handshaking issues, as it is designed to help solve most HDMI-related problems. The Blustream Advanced HDMI 2.0 HDCP 2.2 Signal Manager with Audio Embedder / De-Embedder is a powerful and versatile device that can help take your audio and video experience to the next level.





Features:

  • Can help to solve most HDMI EDID, HDCP, compatibility and handshaking issues
  • Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)
  • HDCP 2.2 support
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports pass-through of HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master
  • Can be configured to work as either a HDMI audio de-embedder or audio embedder
  • HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently (analogue audio supports 2CH PCM only)
  • Embed analogue L/R 2CH audio input onto HDMI output
  • Extract audio with or without an actual display connected (SM11 acts as HDMI end-point)

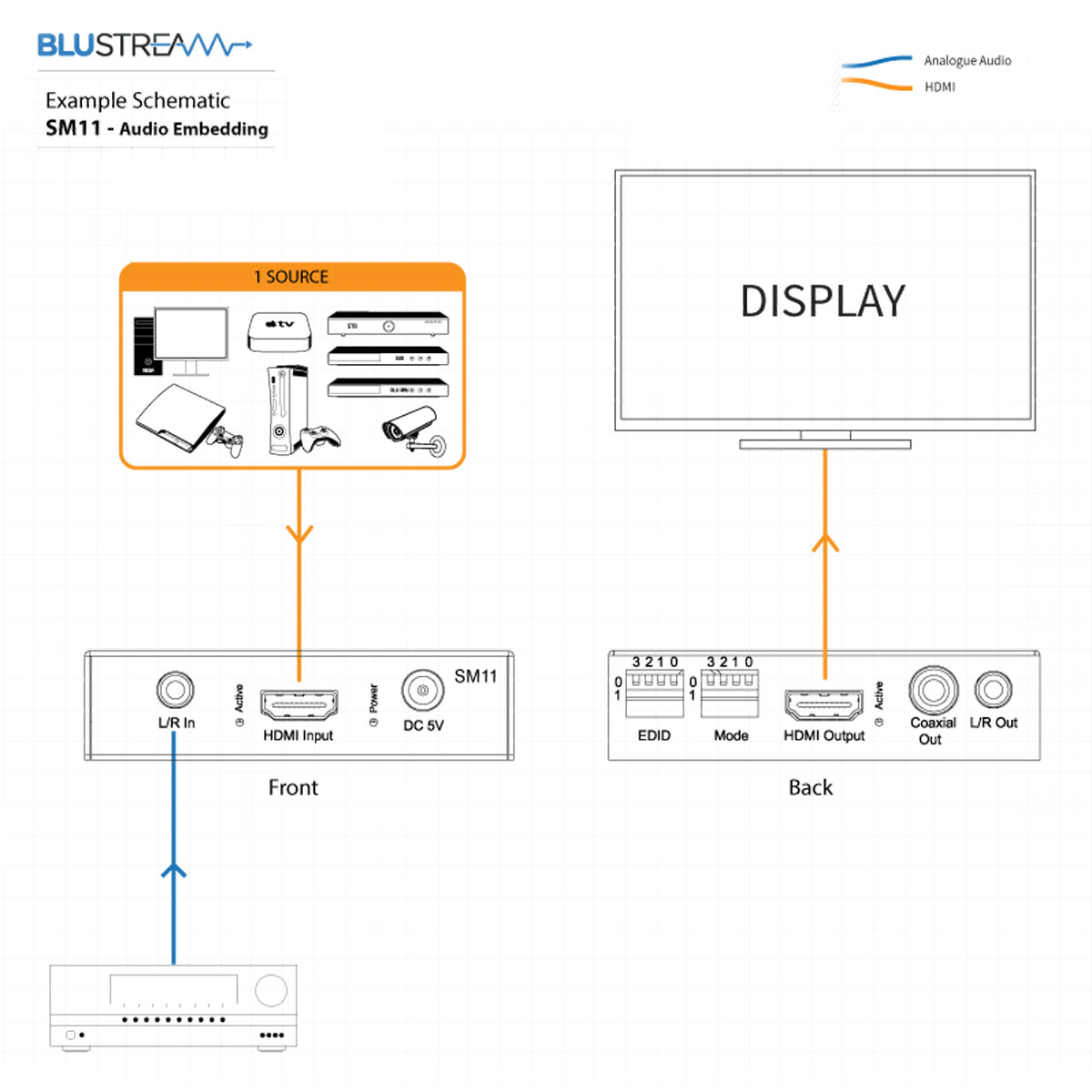

SChematics

Specifications:

  • Audio input connectors: 1x analogue left/right audio (3.5mm stereo jack)
  • Audio output connectors: 1x RCA (SPDIF) & 1x analogue left/right audio (3.5mm stereo jack)
  • Video input connectors: 1x HDMI Type A, 19-pin, female
  • Video output connectors: 1x HDMI Type A, 19-pin, female
  • Casing dimensions (W x H x D): 105mm x 23mm x 87mm
  • Dimensions including connections (W x H x D): 114mm x 23mm x 87mm
  • Shipping weight: 0.5kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/1A DC



Box Contains:

  • 1 x SM11
  • 1 x 5V/1A DC power supply
  • 1 x Mounting kit
  • 1 x User manual



About Blustream

Blustream is a leading provider of advanced HDMI distribution solutions in the audio-visual industry. With over 30 years of experience, the company's products are designed and engineered by a global team of AV specialists. Blustream's research revealed the need for an AV distribution brand that delivers industry-leading performance and reliability. To address this, the company has developed a range of HDBaseT, Video over IP, and HDMI solutions that provide seamless AV integration within any installation environment.

Blustream is an official adopter and alliance member of HDBaseT, positioning the company at the forefront of this advanced technology. Blustream's engineers have created the world's most innovative range of AV distribution products by integrating the latest pioneering chipsets. The company's dedication to quality and innovation has earned it numerous awards in the audio-visual industry, making Blustream the go-to option for advanced HDMI distribution.



Specifications:

  • Audio input connectors: 1x analogue left/right audio (3.5mm stereo jack)
  • Audio output connectors: 1x RCA (SPDIF) & 1x analogue left/right audio (3.5mm stereo jack)
  • Video input connectors: 1x HDMI Type A, 19-pin, female
  • Video output connectors: 1x HDMI Type A, 19-pin, female
  • Casing dimensions (W x H x D): 105mm x 23mm x 87mm
  • Dimensions including connections (W x H x D): 114mm x 23mm x 87mm
  • Shipping weight: 0.5kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/1A DC
