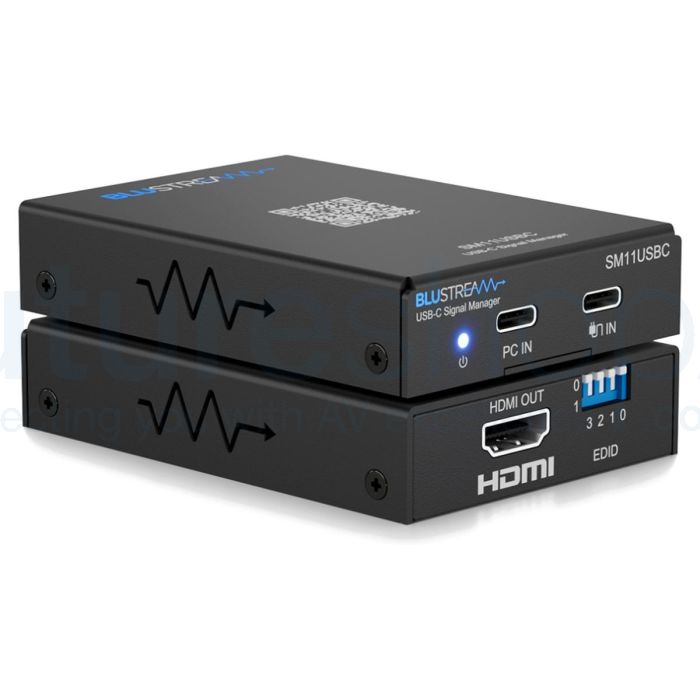

Blustream SM11USBC USB-C Signal Manager with HDMI Conversion and EDID Management
The Blustream SM11USBC takes the video from the USB-C port of a laptop, tablet or PC and turns it into an HDMI signal for a TV, monitor, projector or AV system. The host's USB-C port needs to support DisplayPort Alternate Mode. From there the SM11USBC outputs HDMI 2.0 at up to 4K 60Hz 4:4:4 with HDR, and it also handles wide 2560x1440, ultra-wide 3440x1440 and super ultra-wide 3840x1080 screens. There are no drivers to install, and multichannel bitstream audio, object-based formats included, travels with the picture over the HDMI connection.
What sets it apart from a basic USB-C adaptor is EDID management. Four DIP switches beside the HDMI output select one of fifteen fixed EDID settings, from 1080p60 stereo up to 4K60 HDR with 7.1 audio, or copy the EDID straight from the connected display. Locking the format in this way avoids the handshake, HDCP and resolution problems that can appear when a converted signal passes through receivers and distribution equipment. The second USB-C socket takes the host's own USB-C charger and passes up to 100W of Power Delivery back through the same cable, so a single-port laptop or tablet charges while it drives the screen, without a docking station (the source must support USB-C Power Delivery to accept it). The SM11USBC itself is powered from the host connection, and a mounting kit and a 0.5m USB-A to USB-C cable, for charging only, are in the box.
The SM11USBC sits alongside two Blustream signal managers we already sell, and the main difference is the input. The Blustream SM11ARC and the Blustream SM11EARC-8K both work in an HDMI-to-HDMI path and add audio tools: the SM11ARC breaks HDMI and ARC audio out to optical and 3.5mm analogue outputs and can embed analogue audio onto its HDMI output, while the SM11EARC-8K moves up to HDMI 2.1 with 8K 60Hz and 4K 120Hz video and adds an audio-only HDMI output for ARC and eARC breakout. The SM11USBC has no separate audio outputs. Choose it when the source is a USB-C laptop, tablet or PC rather than an HDMI device, and you want a stable HDMI feed and charging from one cable.
What Blustream say about the SM11USBC
The SM11USBC effortlessly converts USB-C (DP Alt Mode) to HDMI, delivering stunning 4K 60Hz 4:4:4 visuals with zero hassle. Whether working in standard, wide, ultra-wide, or super ultra-wide formats, this plug and play converter adapts instantly to your setup, requiring no drivers or complicated configuration - simply connect and go.
Full EDID management intelligently handles EDID from the host device, eliminating common HDMI, EDID, HDCP, and handshaking compatibility issues commonly associated with conversion and distribution of these signals. Full audio pass-through guarantees synchronised, high-quality audio alongside video without needing a separate cable, and a dedicated USB-C power input lets the host device's PSU be directly to the SM11USBC, delivering up to 100W of power through the single Type-C connection.

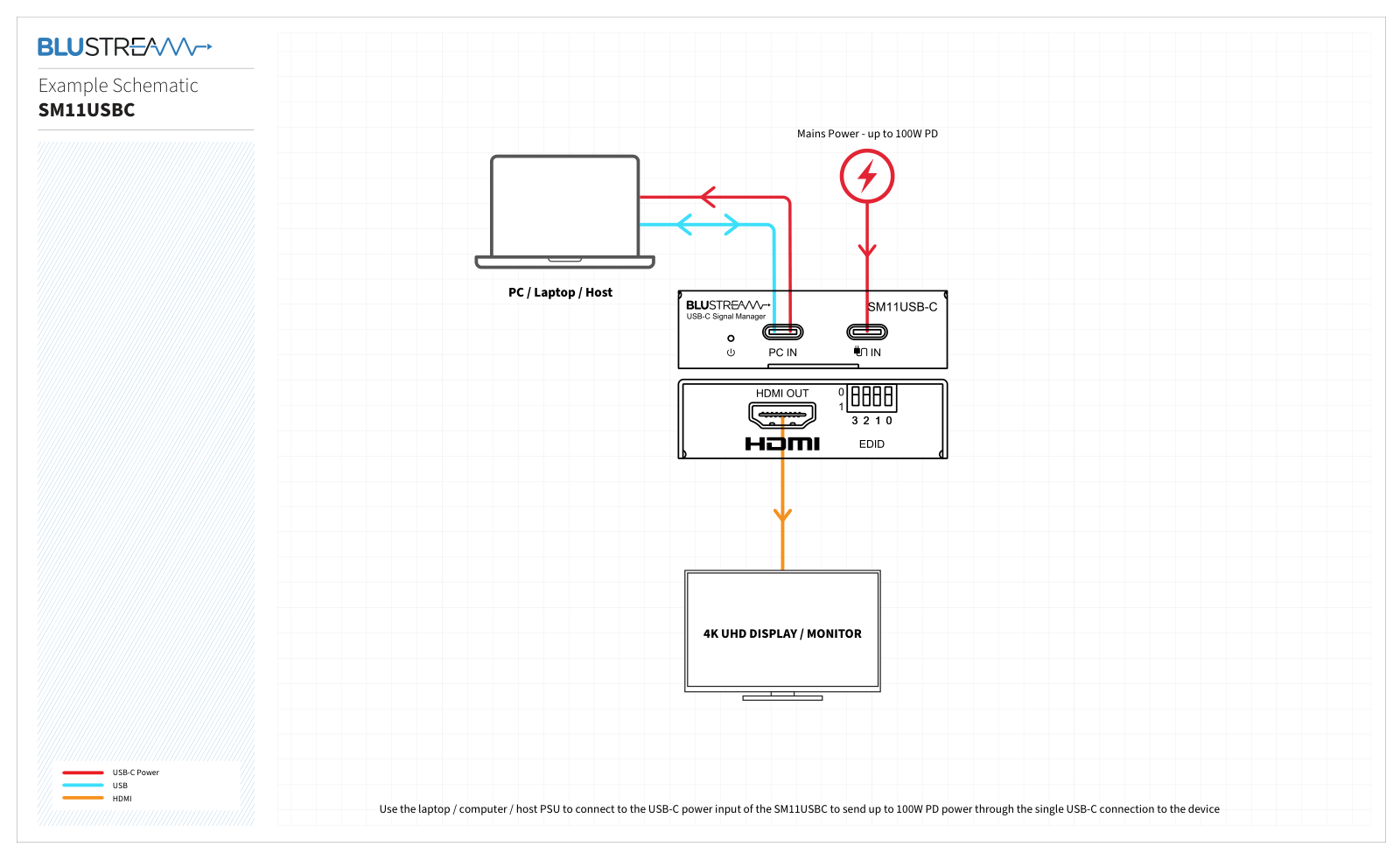

Designed with single-port laptops and tablets in mind, the SM11USBC solves the everyday challenge of needing both power and video through one connector, letting you charge and display simultaneously without a docking station, and without additional cables cluttering the set-up.
Simple, powerful, and reliable, the SM11USBC turns a single USB-C port into a complete display and power solution.
Key Features
- Supports full HDMI 2.0 specification with HDR pass-through
- Converts video from USB-C (DP Alt Mode) up to 4K UHD / DCI 60Hz 4:4:4, with support for wide (2560x1440), ultra-wide (3440x1440), and super ultra-wide (3840x1080) resolutions
- Helps to solve most HDMI, EDID, HDCP, compatibility, and handshaking issues
- HDCP 2.2 compliant
- Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
- Advanced EDID management
- USB-C host PD power pass-through (up to 100W)
- Powered from USB-C host device connection
- No software drivers required - plug and play
Specifications
General
- Brand: Blustream
- Model: SM11USBC
- Product Type: USB-C Signal Manager with HDMI Conversion and EDID Management
- Colour: Black
- Drivers: None required, plug and play
- Operating Temperature: -5°C to +55°C
- Storage Temperature: -25°C to +70°C
- Regulatory: CAN ICES-003(B) / NMB-003(B)
Video
- Input: USB-C (DisplayPort Alt Mode)
- Output: HDMI 2.0 with HDR pass-through
- Maximum Resolution: 4K UHD / DCI 60Hz 4:4:4
- Wide Formats: 2560x1440 (wide), 3440x1440 (ultra-wide), 3840x1080 (super ultra-wide)
- HDCP: 2.2 compliant
Audio
- HDMI Audio: bitstream pass-through of multichannel surround sound, including object-based audio formats, in line with HDMI specifications
Connectivity
- Video Input: 1 x USB Type-C, female (PC IN)
- Video Output: 1 x HDMI Type A, 19-pin, female
- PD Power Insertion (pass-through): 1 x USB Type-C, female
- EDID: 4-way DIP switch on the rear panel
- Indicator: Power LED
Power
- Unit Power: from the USB-C host device connection
- USB-C PD Pass-Through: up to 100W, from the host's own USB-C power supply
- Note: the source must support USB-C Power Delivery to receive power through the PC IN port
EDID Settings (DIP switches)
- 1080p60 4:4:4 8bit 2ch
- 1080p60 4:4:4 8bit 7.1
- 4K30 4:4:4 8bit 2ch
- 4K30 4:4:4 8bit 7.1
- 4K60 4:2:0 8bit 2ch
- 4K60 4:2:0 8bit 7.1
- 3840 x 1080 @ 60Hz 4:4:4 8bit 2ch
- 2560 x 1440 @ 60Hz 4:4:4 8bit 2ch
- 4K60 4:4:4 8bit 2ch
- 4K60 4:4:4 8bit 7.1
- 3440 x 1440 @ 60Hz 4:4:4 8bit 2ch
- 4K60 4:2:2 12bit 7.1
- 4K60 4:2:2 10bit HDR 2ch
- 4K60 4:2:2 10bit HDR 7.1
- 2560 x 1440 @ 120Hz 4:4:4 10bit 2ch HDR
- Copy EDID from the connected display (sink)
Weight and Dimensions

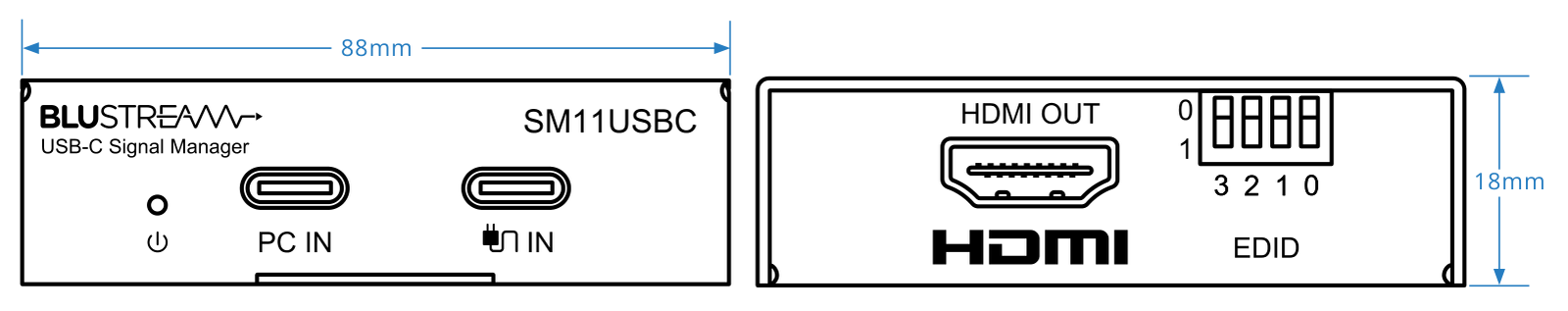

- Dimensions (W x D x H): 88mm x 62mm x 18mm
- Product Weight: 0.12 kg
- Shipping Weight: 0.8 kg
In the Box
- 1 x SM11USBC
- 1 x USB-A to USB-C cable (0.5m), charging only
- 1 x Mounting kit
About Blustream
Australian-founded maker of HDMI matrices, HDBaseT extenders and AV distribution products for home and commercial installs.
Blustream started in Melbourne, Australia, and now has offices in the UK and the United States as well. It specialises in HDBaseT matrices and extenders, and its range also covers HDMI switching, audio converters, Dante audio, amplifiers and video over IP. You can use it to route sources to screens across a building.
Read more about BlustreamShow less
HDMI matrices and switches route your sources
Blustream's HDMI matrices and switches let you send several sources to several displays. The range includes 4x4 matrices such as the MX44AB-V2 and smaller switches such as the SW21AB-V2 and SW41AB-V2. A presentation switch, the MFP112, suits meeting rooms. Check the specification for the inputs and outputs.
HDBaseT extenders carry signals over distance
HDBaseT sends video, audio and control over a single network cable, which lets you place a display well away from its source. Blustream lists receivers such as the RX70AMP, which includes an amplifier, and extender sets such as the HEX100HDVGA-KIT.
Converters and cables fill the gaps
Audio extractors and converters, including the CAT100AU, DAC12AU, HD11AU, ADC11AU and DIG11AU, let you pull audio out of an HDMI signal or convert its format. Micro HDMI cables are also available, which helps when a source has only a micro connector.
