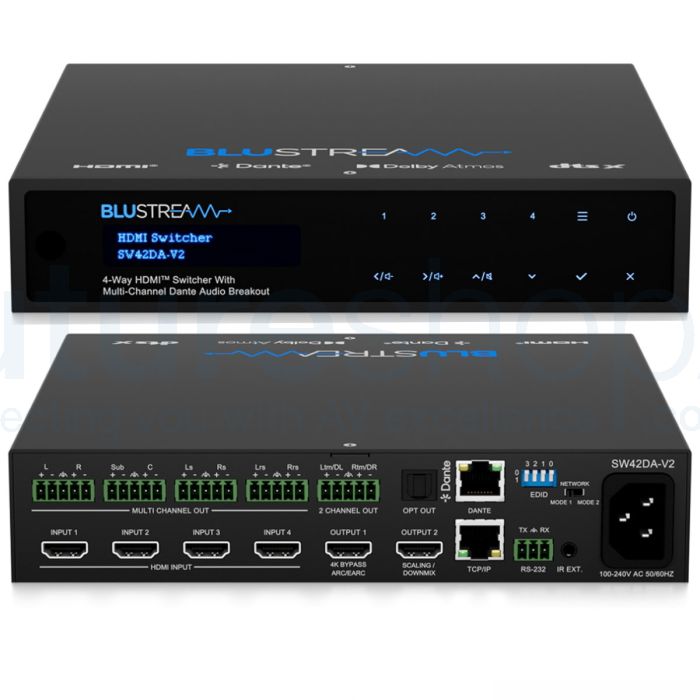

Blustream SW42DA-V2 4-Way HDMI Switcher with Multi-Channel Dante Audio Breakout
The Blustream SW42DA-V2 is a 4-way HDMI switcher built specifically for installations where multi-channel audio needs to be extracted, converted, and distributed alongside 4K video across a Dante networked system. Four HDMI inputs switch to two independent HDMI outputs, with output 1 passing the native signal at up to 4K 60Hz 4:4:4 with full 7.1.2ch Dolby Atmos and DTS-HD audio intact, and output 2 offering optional video down-scaling to 1080p with either the native multichannel audio or a 2ch downmix, depending on the requirements of the connected display or zone. HDR10, HDR10+, and Dolby Vision are all supported, and HDCP 2.3 compliance with advanced EDID management ensures compatibility across a wide range of source and display combinations.
The audio breakout capability is where the SW42DA-V2 earns its place in a serious installation. Dolby Atmos and DTS-HD can be broken out to up to 7.1ch of Dante audio with an independent 2ch downmixed Dante output, or configured for up to 9.1ch Dante distribution in 7.1.2 or 5.1.4 formats. Individual 7.1ch balanced and unbalanced analogue outputs are provided alongside a 2ch balanced and unbalanced downmix, and optical S/PDIF breakout handles either 2ch or 5.1ch as required. ARC and eARC are both supported with full breakout to 7.1ch and 2ch downmixed analogue and Dante outputs. Audio sample rates up to 96kHz at 24-bit are supported, Dante device latency is configurable via Dante Controller, and AES67 RTP audio transport is included for broader network audio compatibility.
Control is available via front panel, TCP/IP, web-GUI, RS-232, and IR, with manual or automatic source selection to suit the demands of the installation. The SW42DA-V2 is supplied with a 19-inch rack mounting kit, remote control, IR receiver, and IEC power cable, and runs from an internal universal power supply covering 100 to 240V AC.
Here is what Blustream say about the SW42DA
The Blustream SW42DA-V2 is a 4-Way HDMI switch that has been designed to breakout, convert, and downmix embedded Dolby Audio or DTS Audio within a HDMI switching environment.
The SW42DA-V2 will pass native video with the embedded multi-channel audio to compatible equipment on output 1, with a second HDMI output featuring optional video down-scaling from 4K 60Hz 4:4:4 or 4:2:0, video down to 1080p, with the native embedded audio, or down-mixed 2ch audio as required.
- Features 4 x HDMI inputs which can be switched to the dual HDMI outputs
- Supports HDMI 2.0b 18Gbps specification including 4K 60Hz 4:4:4 UHD video
- Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
- HDMI output 1 replicates the HDMI input signal up to 4K 60Hz 4:4:4 ands 7.1.2ch Dolby Atmos and DTS-HD audio
- HDMI output 2 features 4K video down-scaler and 7.1.2ch to 2ch Dolby Atmos and DTS-HD audio downmix
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- HDMI audio breakout of Dolby Atmos and DTS-HD to up to 8 channels of Dante audio (7.1ch) and independent 2 down-mixed channels of Dante audio
- HDMI audio breakout of Dolby Atmos and DTS-HD to up to 10 channels of Dante audio (7.1.2ch / 5.1.4ch)*
- HDMI audio breakout to 7.1ch balanced and unbalanced analogue audio outputs
- HDMI Dolby Atmos and DTS-HD 7.1 down-mixing to 2ch balanced and unbalanced audio ouputs
- Supports ARC/eARC including breakout to 7.1ch and 2ch downmixed analogue and Dante audio
- Supports: 44.1, 48, 88.2 & 96kHz sample rates @ 24-bit
- Configurable Dante® device latency using Dante® Controller
- Supports AES67 RTP audio transport
- Control via front panel, TCP/IP, web-GUI, RS-232 and IR
- HDCP 2.3 compliant with advanced EDID management
- Dante 2ch down-mix channels are re-allocated to additional 7.1.2/5.1.4 use
Specifications
Video
- Video Inputs: 4x HDMI Type A, 19-pin (female)
- Video Outputs: 2x HDMI Type A, 19-pin (female)
- HDMI Specification: HDMI 2.0b, 18Gbps
- Output 1: Up to 4K 60Hz 4:4:4 with native embedded audio
- Output 2: 4K video down-scaler (4K 60Hz 4:4:4 or 4:2:0 down to 1080p) with native or down-mixed 2ch audio
- HDR Support: HDR10, HDR10+ and Dolby Vision
- HDCP: 2.3 compliant with advanced EDID management
- EDID: 4-pin DIP switch
Audio
- Supported Formats: Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS-HD Master Audio
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz @ 24-bit
- ARC/eARC: Supported, with breakout to 7.1ch and 2ch downmixed analogue and Dante audio
- Dante Output:
- Up to 8 channels (7.1ch) plus independent 2ch down-mixed Dante output
- Up to 10 channels (7.1.2ch / 5.1.4ch)*
- AES67 RTP audio transport supported
- Configurable device latency via Dante Controller
- Analogue Output: 7.1ch balanced and unbalanced via 5x 5-pin Phoenix connectors (8ch + 2ch)
- 2ch Down-mix: Balanced and unbalanced analogue output
- Optical Output: 1x Toslink (2ch or 5.1ch)
- Dante Network: 1x RJ45 female (100Mbps)
Connectivity
- TCP/IP Control: 1x RJ45 female
- RS-232: 1x 3-pin Phoenix connector
- IR Input: 1x 3.5mm stereo jack
Control
- Front panel buttons
- TCP/IP
- Web GUI
- RS-232
- IR
- Manual or auto source selection
Power and Environment
- Power Supply: Internal 100-240V AC
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Weight and Dimensions
- Dimensions: 220 x 45 x 214mm (W x H x D, excluding feet and connections)
In the Box
- SW42DA-V2 x1
- Remote Control x1
- IR Receiver x1
- 19 inch Rack Mounting Kit x1
- Mounting Feet x4
- Quick Reference Card x1
- IEC Power Cable x1
Regulatory Compliance
- CE, UKCA, FCC
- RoHS Compliant
- CAN ICES-003(B) / NMB-003(B)
