CYP DS-MSC Digital Signage Multi-Screen Controller

£340.40 Special Price £290.40 £242.00
SKU
CYP DS-MSC
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The DS-MSC is designed to manage audio and video signals to emulate a video wall when using third-party screens. Product Code - DS-MSC.

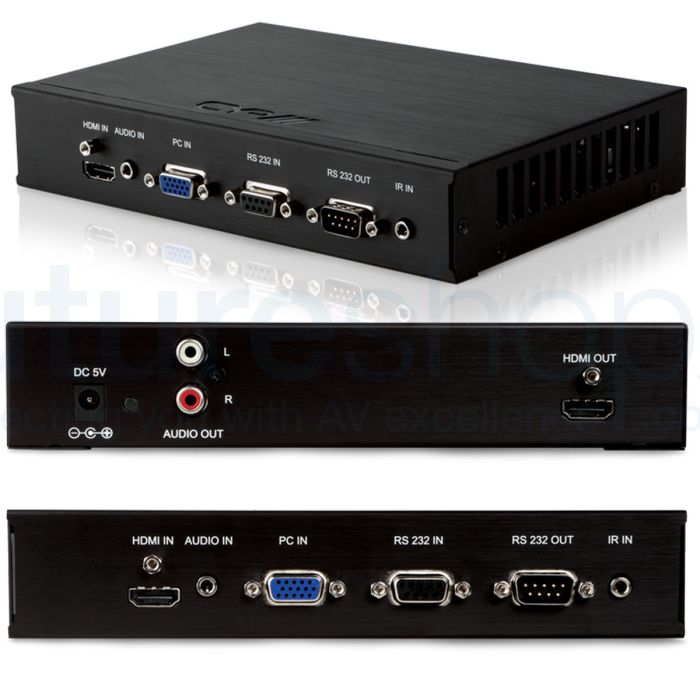

CYP DS-MSC Digital Signage Multi-Screen Controller



The DS-MSC is designed to manage audio and video signals to emulate a video wall when using third-party screens. This controller will control the digital signage content for each screen on a video wall system using up to 25 screens. One controller is required per screen. If the user has only one HDMI or VGA source, then an appropriate Distribution Amplifier (Splitter) will be required to split the source signal to each of the Multi-Screen Controllers feeding the screens.



Features:

  • Product Code - DS-MSC
  • Supports many Horizontal and Vertical video wall screen combinations : 2x2(four screens), 3x2(six screens), 3x3(nine screens), 4x3(12 screens), 4x4(16 screens) and 5x5 (25 screens)
  • Supports both HDMI and PC (with audio) input sources
  • Resolution support up to full HD at 1080p
  • Simple RS-232 control via cascaded RS-232 cable between each video wall controller
  • Supports external IR receiver for IR remote control
  • Note: Requires HDMI or PC (with audio) signal splitter to distribute video / audio signal to each connected DS-MSC controller
  • 2 Years Warranty

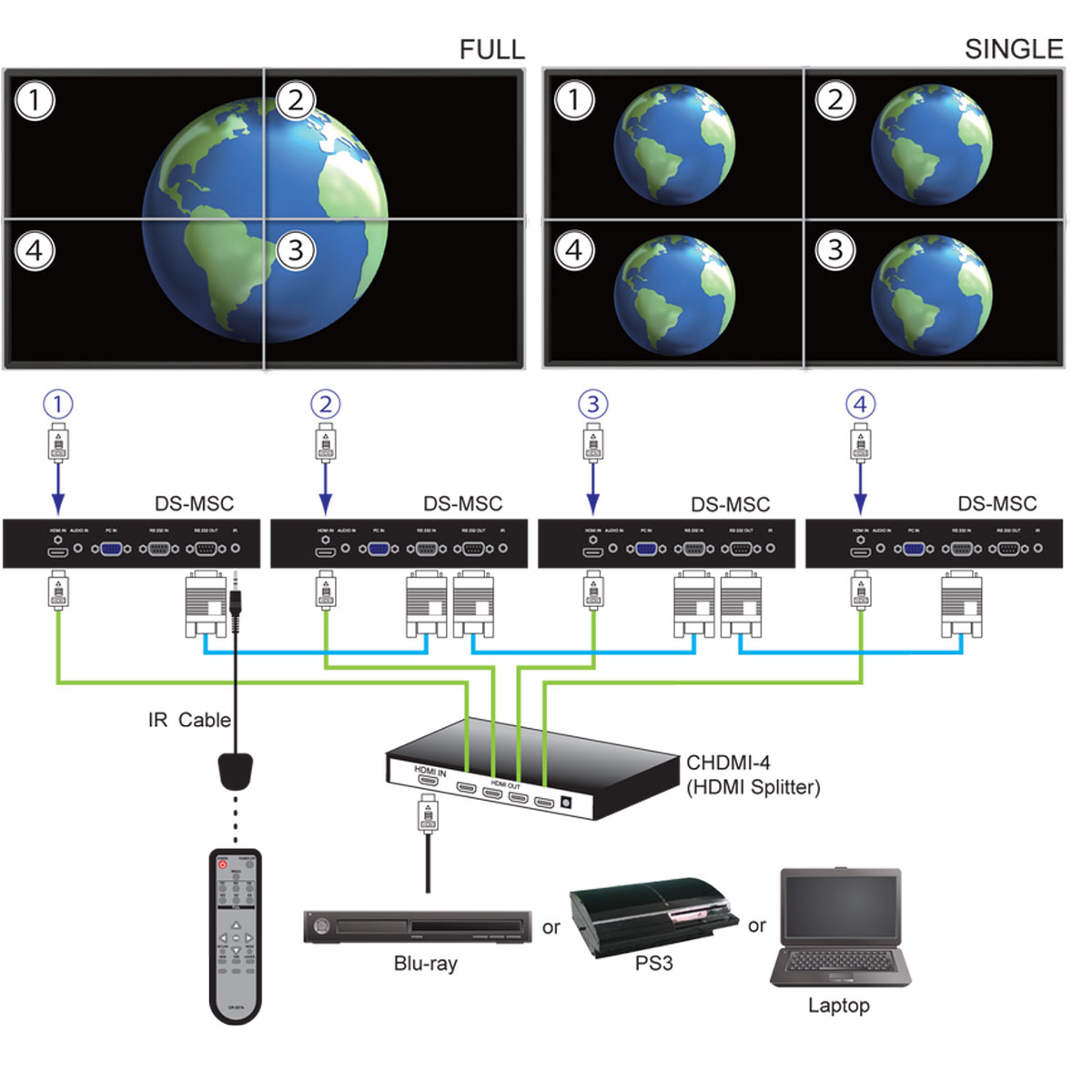

Schematics



Specifications:

  • Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)], 1x 15pin Dsub [1x RGBHV], 1x 9pin Dsub [1x RS-232 Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
  • Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 2x RCA [1x Analogue Stereo (L/R)], 1x 9pin Dsub [1x RS-232 Data]
  • PSU: 5V/3A
  • Dimensions (WxDxH): 250mm x 150mm x 50mm
  • Net Weight: 740g
  • Gross Weight: 880g



HDMI



Box Contents:

  • CYP Digital Signage Multi-Screen Controller
  • Power Supply
  • User's Manual



Specifications:

  • Inputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)], 1x 15pin Dsub [1x RGBHV], 1x 9pin Dsub [1x RS-232 Data], 1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
  • Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data], 2x RCA [1x Analogue Stereo (L/R)], 1x 9pin Dsub [1x RS-232 Data]
  • PSU: 5V/3A
  • Dimensions (WxDxH): 250mm x 150mm x 50mm
  • Net Weight: 740g
  • Gross Weight: 880g
