CYP DS-VWC2-4K22 – 4K dual input HDMI Video Wall Processor with Warping and Rotation
The CYP DS-VWC2-4K22 HDMI Video Wall Rotation Processor is a versatile solution designed for customised video display arrangements in commercial retail displays, control rooms, and classrooms. Supporting HDMI inputs and output resolutions up to 4K60Hz 4:4:4 with LPCM audio, the device excels in Rotation Mode, offering precise scaling and rotation with minimal 1 to 2 frames of video latency.
In Scaler Mode, it can scale to various output resolutions, including 4K@60Hz, and apply mirror, flip, and freeze effects. Multiple units can be combined for large video wall applications, enabling the creation of distinct and eye-catching displays.
Configuration is simplified through the Video Wall PC application, providing a graphical interface with pre-set arrangements, while control options include front panel controls, OSD, Telnet, RS-232, or the dedicated software, making it a powerful and flexible solution for dynamic visual presentations.
Features
- HDMI 2.0 and DVI 1.0 compliant
- HDCP 1.x and 2.2 compliant
- 2 HDMI inputs and 1 HDMI output
- Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
- Only 1 to 2 frames of video latency
- Supports horizontal/vertical video warping with zooming in/out and 360 degree display rotation in 1° increments (Warping mode)
- Supports up to two simultaneous, freely scalable, PiP windows in multiwindowing modes (Scaling mode)
- Seamless switching (no loss of sync to display) when switching sources with optional crossfade transition (Scaling mode)
- Each window can have a border with a selectable colour (Scaling mode)
- Per-input video cropping and chroma key overlay (Scaling mode)
- Wide variety of video adjustments, including: contrast, brightness, hue, sharpness, aspect ratio
- Supports the ability to store a multi-window or warping arrangement as a preset that can be recalled later
- Independent audio source selection and routing in all modes
- Uploadable and freely positionable graphic logo support
- Per-input EDID management with internal or external EDID options
- Control of the unit is accomplished by use of front panel buttons with OSD menu, Telnet, RS-232 or dedicated Video Wall PC software

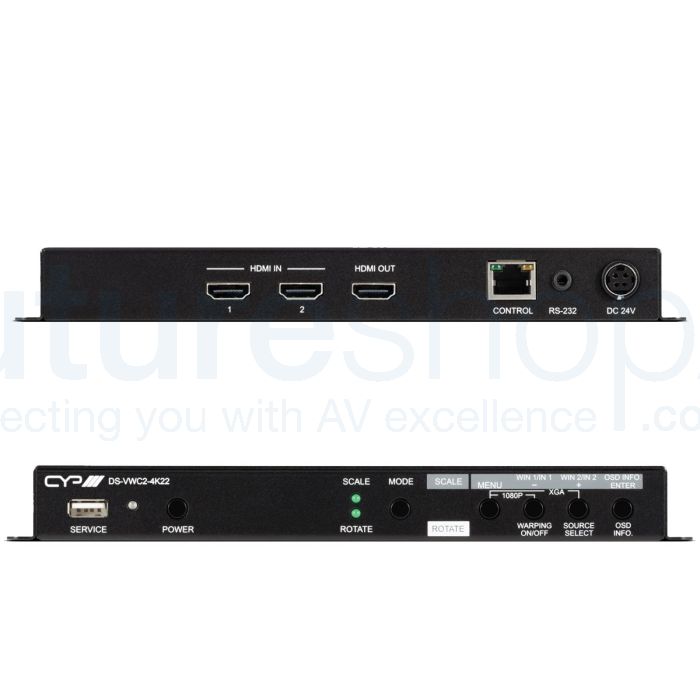

Specification
- Inputs:
- 2x HDMI [2x HDMI Uncompressed AV and Data]
- 1x 3.5mm Stereo mini-jack [1x RS-232]
- 1x RJ45 [1x IP Control]
- 1x USB Type A [1x Service Port Propriety Data]
- Outputs: 1x HDMI [1x HDMI Uncompressed AV and Data]
- PSU: 24V/2.7A
- Dimensions: 231mm [W] x 158mm [D] x 25mm [H]
- Net Weight: 900g
- Gross Weight: 1850g
About CYP
CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.
The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.
From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.
