CYP HDMI-AOC Fiber AOC HDMI Cable

As low as £329.72 £274.77
SKU
CYP HDMI-AOC
24 Months
New
24 hours
what's this?

Select the desired length for your cable from the drop-down menu.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

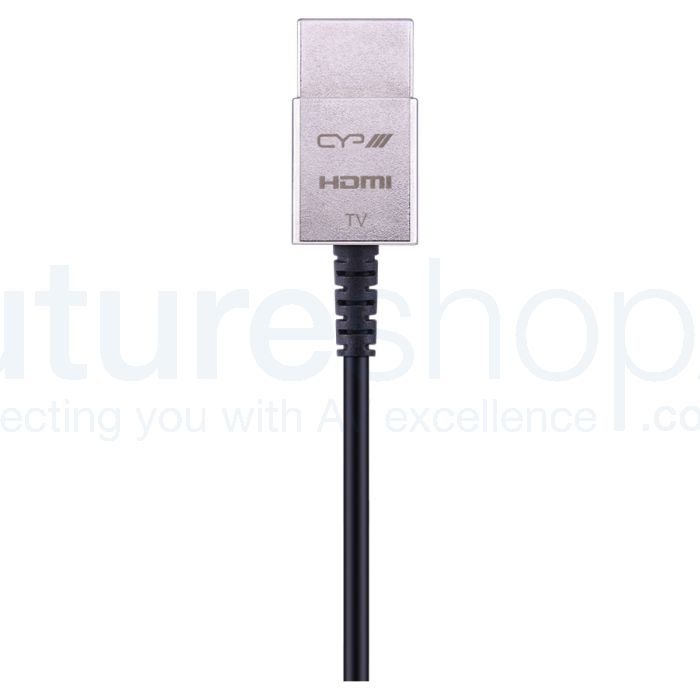

Introducing the latest in HDMI cable technology, the CYP HDMI-AOC fiber cable. AOC (Active Optical Cable) allows full 4K UHD resolution support (2160p @ 60hz) to be transmitted over 10 or 20 metres. This technology accepts the same electrical inputs as a traditional copper HDMI cable, but uses optical fiber between the connectors.

CYP HDMI-AOC Fiber AOC HDMI Cable, 18Gbps (6G) 4KHDR (HDR10+Dolby Vision)



What CYP say



​Introducing the latest in HDMI cable technology, the CYP HDMI-AOC fiber cable. AOC (Active Optical Cable) allows full 4K UHD resolution support (2160p @ 60hz) to be transmitted over 10 or 20 metres. This technology accepts the same electrical inputs as a traditional copper HDMI cable, but uses optical fiber between the connectors. AOC uses electrical-to-optical conversion over the directional cable connectors to improve distance performance, without sacrificing any signal integrity.

The low profile cast connectors allow for easy installation of the HDMI cable and offer a secure connection to the connected source and display. The cable also offers increased flexibility and durability with its slimline narrow rubber cord. Taking its power from the 5V pin of the connected source, the HDMI-AOC doesn't require an additional power supply to operate.

***Please note - The HDMI-AOC-10M is a directional cable and needs to be installed following the labelled 'TV' & 'Source' connectors in the correct position***



Features



  • Full 4k / UHD resolution support (2160p @ 60Hz 4:4:4)
  • HDR (High Dynamic Range) support
  • High quality low profile cast metal connectors with precision 24k gold plated termination
  • Clearly labelled 'Source' & 'Display' connectors for providing power to the cable
  • High Frame Rate (600MHz)
  • High Bandwidth (full 18 Gbps)
  • BT.2020 Colorimetry (10/12 bit / 4:4:4)
  • ARC (Audio Return Channel) support
  • CEC (Consumer Electronic Control) support
  • 32 Channel Audio (Dolby Atmos and DTS:X) support
  • Full High Definition 3D support
  • HDCP2.2 compliant



Specification



  • Inputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • Outputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • Dimensions- 10000m / 20000mm [W] x 14mm [D] x 6mm [H]
  • Net Weight- 150g / 200g
  • Gross Weight- 460g / 600g



About CYP

CYP's vision is simple, to deliver market-leading connectivity solutions that enhance the capability of Audio Visual products in any installation environment. Continued dedication and focus has made CYP a market leader in connectivity solutions for both systems integrators and professional AV installers throughout Europe. They have a range of over 350 tried and tested products that offer a standard of performance and reliability that cannot be matched.

The key to building such a successful range lies with the ability to continuously develop new products that drive innovation. Within AV distribution this requires an excellent market understanding and the very best R&D engineers. CYP have a continuous new product roadmap containing over 30 projects at any one time, this ensures that they can always provide their partners with innovative application of the very latest technology.

From their European headquarters in Shepperton (UK), they support distributors, systems integrators and installers throughout Europe, the Middle East and Africa. From initial specification of projects through to industry-leading after-sales support and training, they provide their partners with complete confidence in the AV solutions they deliver. Behind this support is a dedicated team of product managers and engineers who all have the skills and experience to deliver practical help at every stage of the CYP journey. It is this passion for the industry and pride in their products that makes them the perfect manufacturer partner.





  • Inputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • Outputs-
    • 1x HDMI [1x HDMI Uncompressed AV and Data]
  • Dimensions- 10000m / 20000mm [W] x 14mm [D] x 6mm [H]
  • Net Weight- 150g / 200g
  • Gross Weight- 460g / 600g
