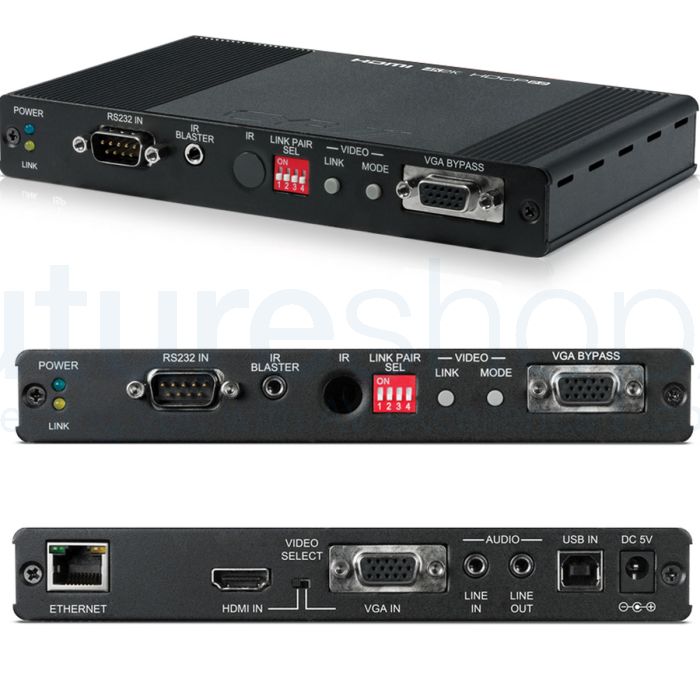

CYP IP-6000TX HDMI or VGA over IP Receiver with USB support (4K, HDCP2.2)

£520.37 Special Price £498.69 £415.57
SKU
CYP IP-6000TX
Free UK Delivery
24 Months
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

​The PU-IP6000TX transmitter allows you to transmit HDMI or VGA signals over CAT5e/6/7 network cable. This extender is multi-function transmitter that supports the transmission of Ultra High-Definition signals (up to 4K2K@30Hz, YUV444) for distances up to 100m. This system is perfect for both residential and commercial installation environments.

CYP IP-6000TX HDMI or VGA over IP Receiver with USB support (4K, HDCP2.2)



The PU-IP6000TX transmitter allows you to transmit HDMI or VGA signals over CAT5e/6/7 network cable. This extender is multi-function transmitter that supports the transmission of Ultra High-Definition signals (up to 4K2K@30Hz, YUV444) for distances up to 100m. This system is perfect for both residential and commercial installation environments.


The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches and supports Gigabit networks.

This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input provide the user with variety of audio options. The USB function allows the system to act like USB hub which, when combined with the VGA input/Output feature, it allows the system to be used as a KVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss or introducing delay. Control is via On-screen Display (OSD), Telnet, IR Remote, WebGUI and RS-232 commands.



Features:

  • HDCP 2.2, HDMI and DVI compatible
  • Supports HDMI and VGA inputs and outputs
  • Supports video transmission over IP up to 100m
  • Supports HDTV resolutions up to 4K2K@30Hz (YUV444) or 4K2K@60Hz (YUV420)
  • Supports pass-through of HD audio formats (PCM 2CH)
  • Supports audio line in for audio input to the transmitter and line output to an amplifier or AV Receiver
  • Supports microphone input on the receiver unit
  • >Supports USB keyboard and mouse
  • Control via OSD, Telnet, WebGUI, IR remote and RS-232

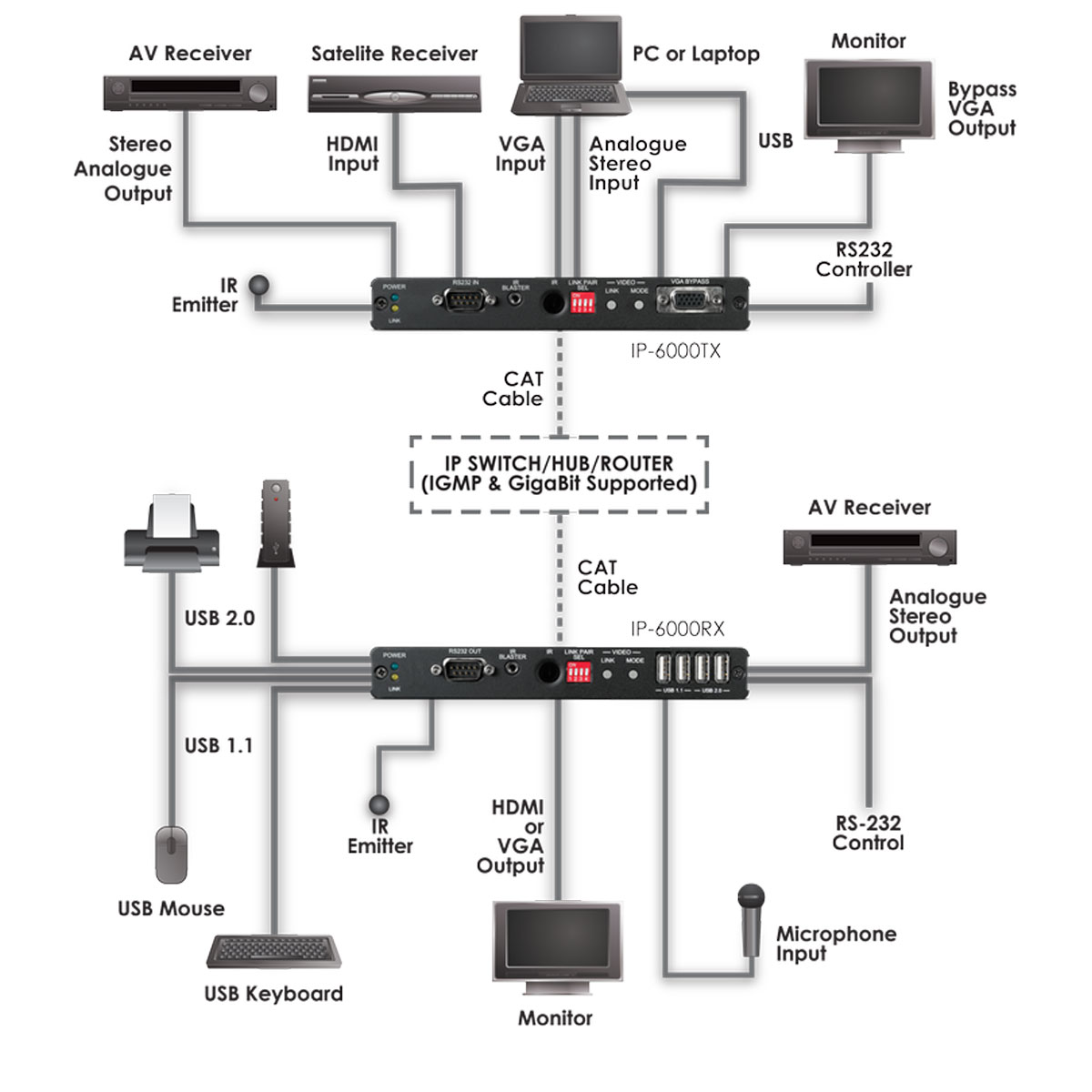

Schematics



Specification:

  • Inputs: 1xRJ45 1xIP
  • Outsputs: 1x HDMI, 1x 15pin Dsub, 1x9pin Dsub, 1x 3.5mm Stero Mini-Jack, 2x USB 2.0 Type A, 2x USB USB 1.1 Type A
  • PSU: 5V/2.6A
  • Dimensions: 182mm[W] x 280mm [D] x 71mm [H]
  • Net Weight: 865g
  • Gross Weight: 1020g



8bit 10bit 12bit 3d3 USB 4k-2k 4KUD HDMI



Box Contains:

  • 1x IP-6000TX
  • 1x Manual

Specification:

  • Inputs: 1xRJ45 1xIP
  • Outsputs: 1x HDMI, 1x 15pin Dsub, 1x9pin Dsub, 1x 3.5mm Stero Mini-Jack, 2x USB 2.0 Type A, 2x USB USB 1.1 Type A
  • PSU: 5V/2.6A
  • Dimensions: 182mm[W] x 280mm [D] x 71mm [H]
  • Net Weight: 865g
  • Gross Weight: 1020g
