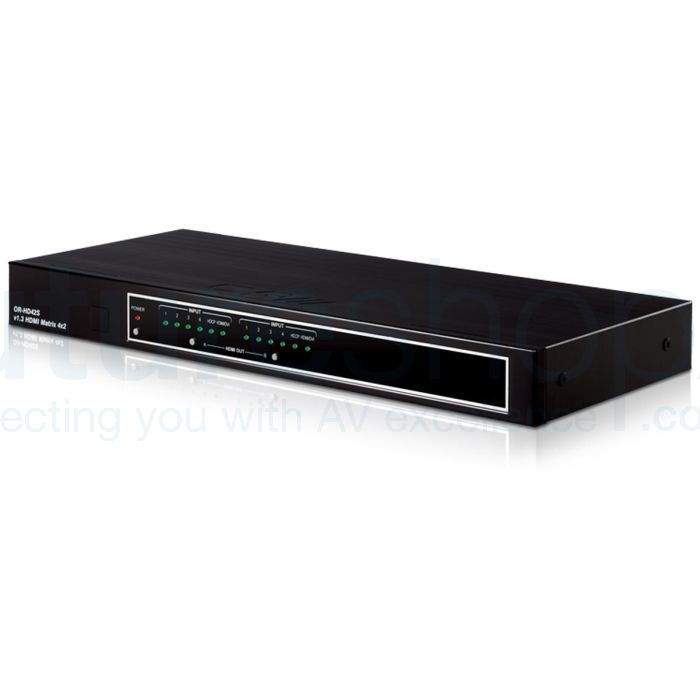

CYP OR-HD42S 4 x 2 HDMI Matrix Switcher

Need help choosing?

Our Hi-Fi specialists give free, honest advice — no commission, ever. Contact us by email or phone and we'll help you find the right cable for your system.

Item code: OR-HD42S

The OR-HD42S Matrix Switcher connects four HDMI sources to two displays allowing any source to be independently displayed on any screen. This matrix switcher can be controlled via the supplied remote control, RS-232, or by using the input switching b…
£639.99
£319.99
✓ Save %

Lowest price in the last 30 days:

New 24 Months warranty 60-day returns
Outside the UK? VAT removed automatically at checkout. Pre-paid duties available for selected destinations.
Qty:

SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

£319.99 inc. VAT
Available — built to order, dispatches in 24 hours
Delivery: Royal Mail Tracked 24 FREE  ·  DPD Next Day from £8.95  ·  DPD Saturday from £12.95
Order before 4pm (Mon–Fri) for same-day dispatch
Our promise: 60-day returns · Free burn-in · Built in our UK workshop · 24 Months warranty · Expert support on every order

CYP OR-HD42S 4 x 2 HDMI Matrix Switcher



The OR-HD42S Matrix Switcher connects four HDMI sources to two displays allowing any source to be independently displayed on any screen. This matrix switcher can be controlled via the supplied remote control, RS-232, or by using the input switching buttons on the front of the device. This device is compatible to v1.3 HDMI specifications, supporting ‘Deep Colour’, High Definition Audio, and 3D signal compatibility.

Features:

  • HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
  • Supports digital video formats in Deep Color 12bit and new lossless digital audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio).
  • The HDMI input is compensated, clock / phase adjusted and jitter eliminated so the output is a brand new standard HDMI signal.
  • LEDs on each output illuminate to indicate which input is selected.
  • Compatible with all HDMI sources and displays.
  • Supports a wide range of PC and HDTV resolutions, from VGA to UXGA and 480i to 1080p including 1080p24fps.
  • Supports RS-232 control.
  • Supports IR remote control and IR extender.
  • Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate).
  • Supports LPCM 7.1 channel audio from each independent HDMI output.
  • At 1080p/8bit resolution, source to input cable length can be up to 10m, output to display cable length can be up to 10m.
  • At 1080p/12bit, the source to input cable length can be up to 10m, Output to display cable can run up to 6 metres.

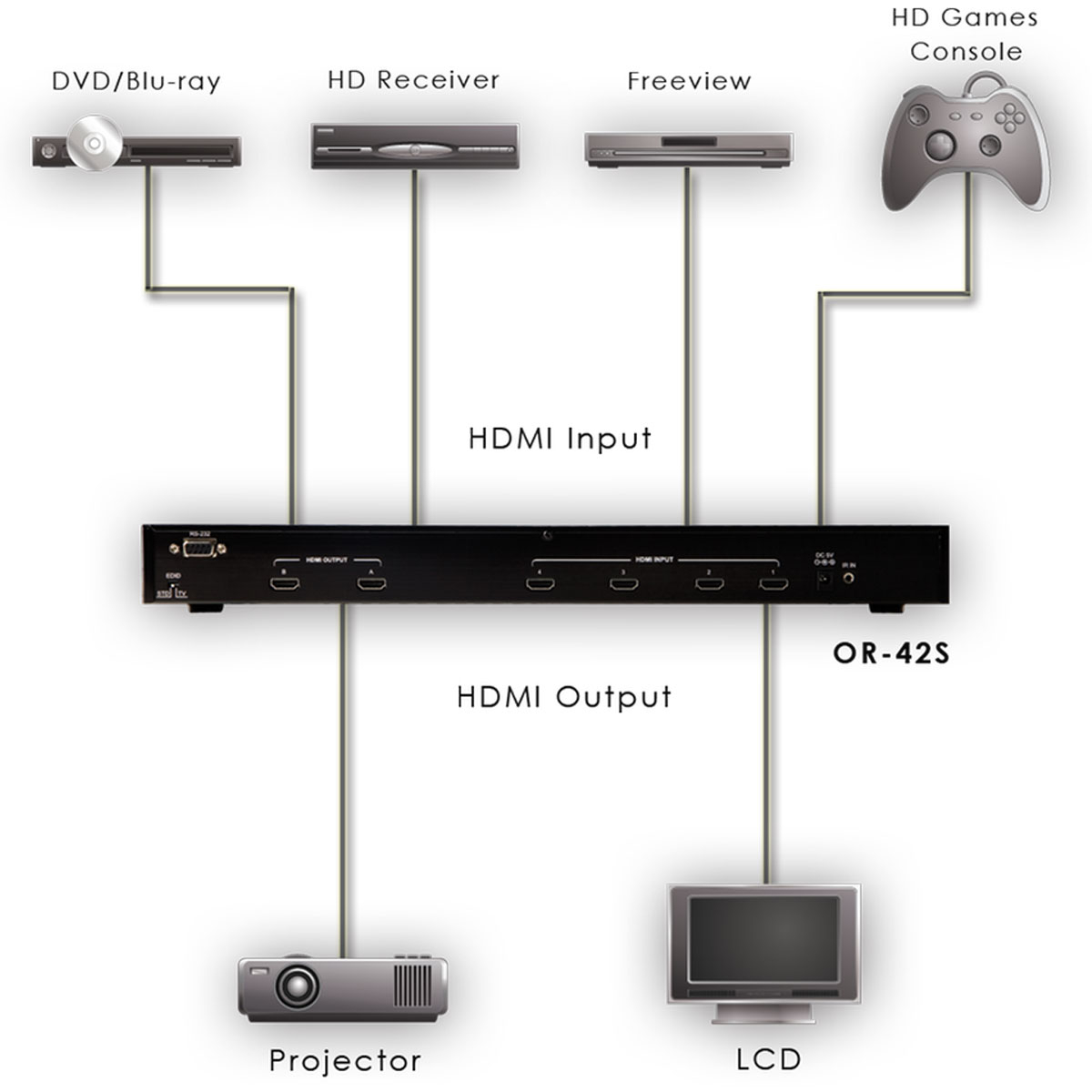

Schematics



Specifications:

  • 1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
  • 4 x 2 HDMI Matrix Switcher
  • Resolutions supported: PC - VGA to UXGA; HDTV - 480i to 1080p plus 1080p24fps
  • High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM
  • The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is a brand new standard HDMI signal
  • Supports IR remote control and IR extender together with RS-232 control
  • Supports 'Deep Colour' (10 & 12 bit)
  • Selectable EDID settings - TV (downstream) and STD (fixed)
  • Power, HDMI/DVI & HDCP plus independent output LED's indicator
  • Supports xvYCC
  • Supports 3D signals
  • Inputs 4x HDMI [4x HDMI Uncompressed AV and Data]
  • 1x 9pin Dsub [1x RS-232 RS-232 Data]
  • 1x 3.5mm Stereo mini-jack [1x IR IN Infra Red Receiver]
  • Outputs 2x HDMI [2x HDMI Uncompressed AV and Data]
  • PSU: 5V/6A
  • Dimensions 440mm [W] x 175mm [D] x 48mm [H]
  • Net Weight 1760g
  • Gross Weight 2140g



Box Contains:

  • CYP OR-HD42S 4 x 2 HDMI Matrix Switcher
  • Remote Control
  • UK Power Supply
  • User's Manual

Specifications:

  • 1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
  • 4 x 2 HDMI Matrix Switcher
  • Resolutions supported: PC - VGA to UXGA; HDTV - 480i to 1080p plus 1080p24fps
  • High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM
  • The HDMI input is compensated, clock / phase adjusted, and jitter eliminated so the output is a brand new standard HDMI signal
  • Supports IR remote control and IR extender together with RS-232 control
  • Supports 'Deep Colour' (10 & 12 bit)
  • Selectable EDID settings - TV (downstream) and STD (fixed)
  • Power, HDMI/DVI & HDCP plus independent output LED's indicator
  • Supports xvYCC
  • Supports 3D signals
  • Inputs 4x HDMI [4x HDMI Uncompressed AV and Data]
  • 1x 9pin Dsub [1x RS-232 RS-232 Data]
  • 1x 3.5mm Stereo mini-jack [1x IR IN Infra Red Receiver]
  • Outputs 2x HDMI [2x HDMI Uncompressed AV and Data]
  • PSU: 5V/6A
  • Dimensions 440mm [W] x 175mm [D] x 48mm [H]
  • Net Weight 1760g
  • Gross Weight 2140g
