CYP RE-EDID Manager W/ Emulation and Bypass Modes

£160.04 £133.37
SKU
CYP RE-EDID
Free UK Delivery
5 Years
New
24 hours
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

The RE-EDID is designed to allow the adjustment and manipulation of HDMI/DVI EDID information that is provided to a source device by a connected display so that it may output the correct video/audio signal. Product Code - RE-EDID

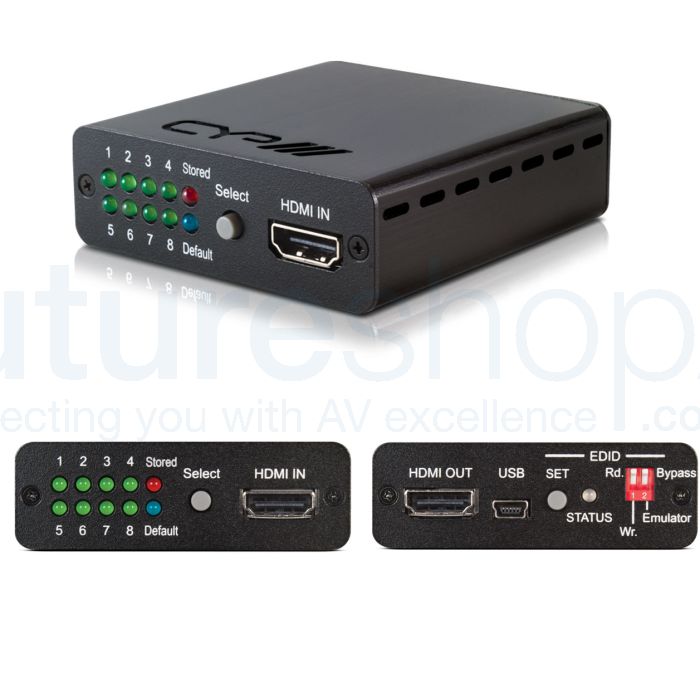

CYP RE-EDID Manager



The RE-EDID is designed to allow the adjustment and manipulation of HDMI/DVI EDID information that is provided to a source device by a connected display so that it may output the correct video/audio signal.

Aiming to simplify the technical complications involved in video/audio system integration, home theatre installation, and video/audio equipment testing, the unit features a learning function allowing the user to Read and Write the video/audio EDID to the system. It also supports EDID Emulation and Bypass modes.

This device is perfect to overcome source and screen compatibility issues, particularly when integrating PC's into an AV system.



Features:

  • Product Code - RE-EDID
  • HDMI 1.3 and DVI 1.0 compliant
  • Supports resolutions up to and including 1080p @ 60Hz and 4K x 2K @ 24/30Hz
  • Supports up to 16-bit Deep Colour
  • HD Audio Support: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS HD Master Audio (Sampling rates from 32 kHz to 192 kHz)
  • Supports 8 sets of default EDID settings
  • Supports Four different EDID modes: Read / Write / Emulate / Bypass modes
  • Read Mode: Reads the TV/display’s EDID information
  • Write Mode: Overwrites the TV/display’s EDID information (TV/display needs to be able to support overwrite function)
  • Emulator Mode: Allows the source device to read the selected EDID information from the unit’s default or learnt EDID memory
  • Bypass Mode: Allows the source device to read the EDID information from the TV/display directly
  • Supports DVI sources when used with a DVI to HDMI adaptor (not supplied)
  • Supports CEC functionality
  • Can be powered via USB or HDMI input
  • 2 Years Warranty

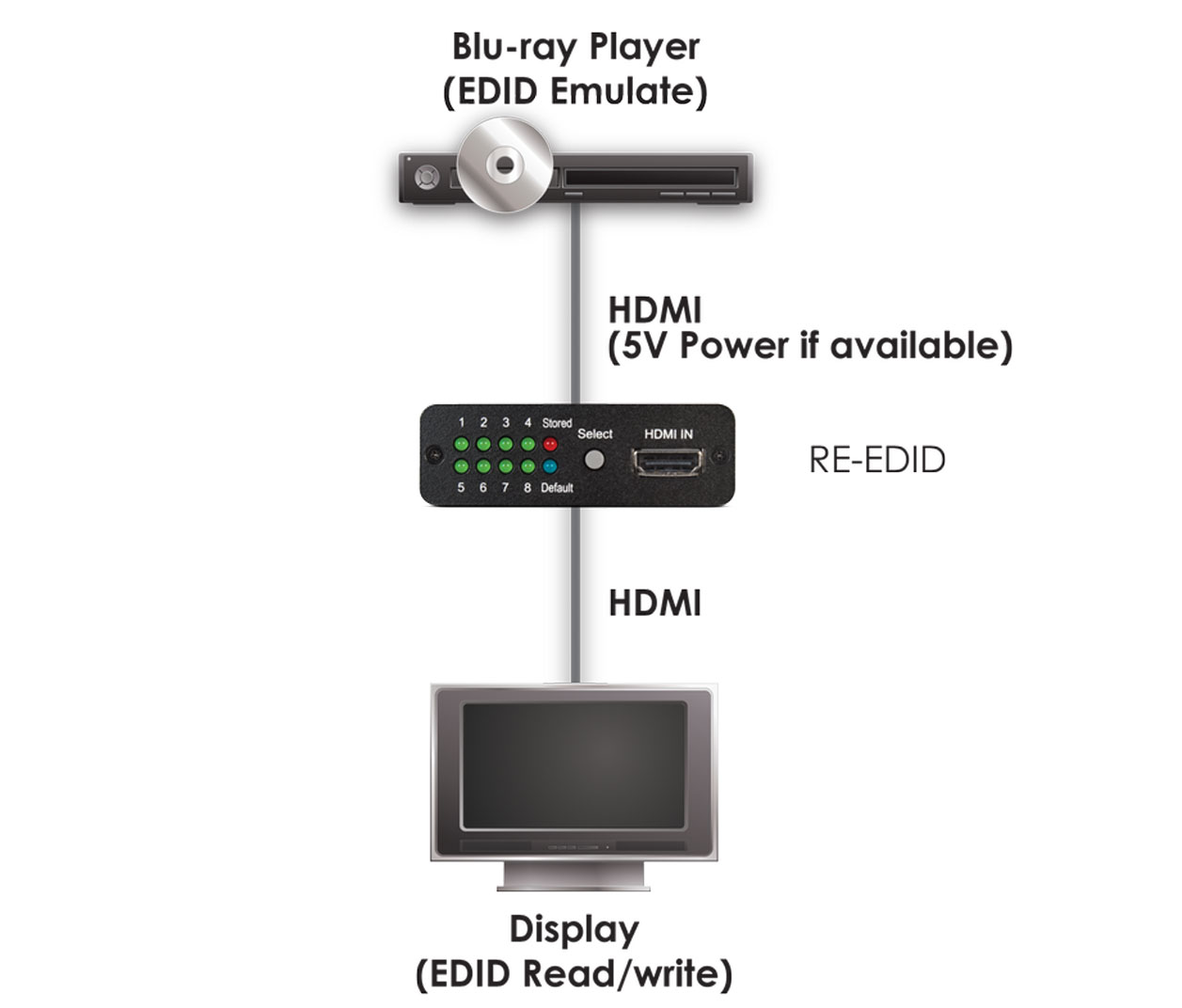

schematics



Specifications:

  • PSU: USB powered
  • Dimensions (WxDxH): 70mm x 80mm x 22mm
  • Gross Weight 240g



4k
HDMI
8bit 10bit 12bit12



Box Content:

  • CYP EDID Manager
  • User's Manual



Specifications:

  • PSU: USB powered
  • Dimensions (WxDxH): 70mm x 80mm x 22mm
  • Gross Weight 240g
