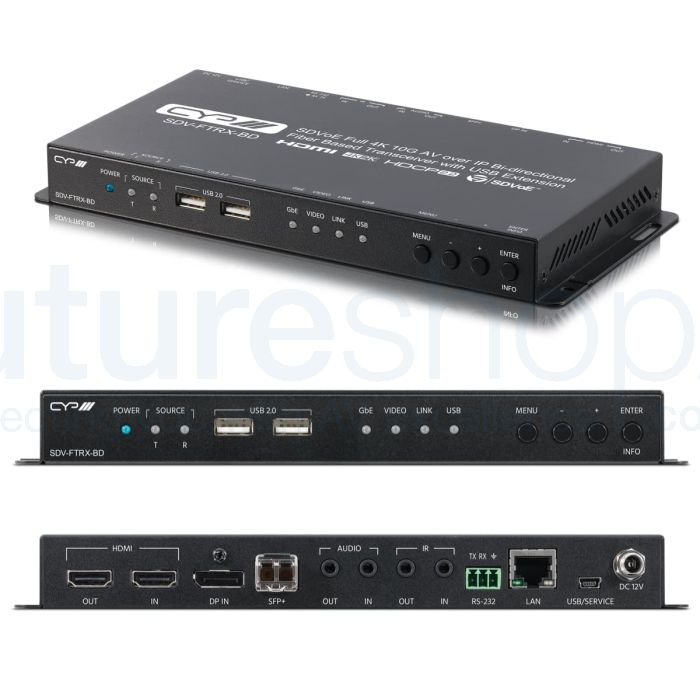

CYP SDV-FTRX-BD SDVoE Full 4K 10G AV over IP Bi-directional Fiber Based Transceiver with USB Extension
The CYP SDV-FTRX-BD is a fibre based transceiver from the SDVoE 10G AV over IP range, designed for high quality, IP routable AV distribution where minimum latency and installation flexibility matter. Rather than acting only as a sender or receiver, every unit is a true transceiver capable of simultaneous bi-directional AV extension, which simplifies system design and reduces the number of devices needed in complex layouts. At its core is a sophisticated ultra-light compression scheme that remains lossless for most content, allowing uncompressed 4K audio and video from either HDMI or DisplayPort sources to be transported cleanly across a standard network alongside associated control and data signals.
The SDV-FTRX-BD handles demanding modern sources without compromise, passing through 4K60 4:4:4 video, 10 and 12-bit HDR, and multichannel HD Bitstream audio so the picture and sound arrive at the display exactly as the source intended. It is HDCP 2.2 and HDCP 1.x compliant and HDMI 2.0 and DVI 1.0 compatible, with built-in EDID and HDCP management that helps the unit settle into almost any chain of equipment. Connectivity is comprehensive, combining HDMI and DisplayPort inputs and an HDMI output with analogue stereo input and output on 3.5mm jacks, bi-directional IR, RS-232 on a 3-pin Phoenix connector, an RJ45 LAN serving port and an integrated USB 2.0 hub. That USB hub can operate as a straightforward point-to-point KVM extension or be freely routed between endpoints, supporting multi-user, control room and on-demand scenarios.
Transmission is handled over LC duplex multimode OM3 fibre via the shared SFP+ ports, giving point-to-point reach of up to 300m using the supplied multimode module, with greater distances possible depending on the SFP+ module and fibre type chosen. Basic setup is carried out from the front panel buttons with an on-screen display, while the optional SDV-CS8 IP Master Controller expands the system dramatically, letting multiple transceivers and 10-Gigabit Ethernet switches work together as a distributed video matrix with breakaway switching, multiview compositing and video wall configuration. Housed in a compact chassis measuring 231.5mm wide, 25mm high and 108mm deep and powered from a 12V/3A supply, the SDV-FTRX-BD is a versatile building block for large installations and live event environments, backed by a 5 year warranty.
What CYP say about the SDV-FTRX-BD
The SDV-FTRX-BD is designed for high-quality, IP routable, AV extension with minimum latency for the SDVoE range of 10G AV over IP. Every Transceiver is capable of simultaneous bi-directional AV extension, enhancing the flexibility of any installation. By using a sophisticated ultra-light compression scheme (lossless for most content) it's a great solution for extending 4K audio/video streams (HDMI or Display Port) and data.
Advanced HDMI content such as HDR (High Dynamic Range), 10-bit colour and multi-channel HD Bitstream audio can be transmitted in pass-through mode. With the use of standard Fiber cable allows for point-to-point transmission of the video signal up to 300m via supplied Multi-Mode fiber module. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and Ethernet.
Specifications
General
- Brand: CYP
- Model: SDV-FTRX-BD
- Product Type: SDVoE 10G AV over IP Bi-directional Fibre Transceiver
- Max Resolution: 4K60 4:4:4
- HDR Support: Pass-through of 10/12-bit HDR sources
- HDCP: HDCP 2.2 and HDCP 1.x compliant
- Compatibility: HDMI 2.0 and DVI 1.0 compatible
- Compression: Ultra-light compression, lossless for most content
- EDID & HDCP Management: Built-in
- Configuration: Front panel buttons with On-Screen Display (OSD)
- Warranty: 5 Year Warranty
Audio
- Supported Formats: LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI or DisplayPort sources
- Analogue Audio: 1x analogue stereo input and 1x analogue stereo output (3.5mm mini-jack)
Connectivity
- Video Inputs: 1x HDMI (uncompressed AV and data), 1x DisplayPort (uncompressed AV)
- Video Outputs: 1x HDMI (uncompressed AV and data)
- Fibre: Shared simultaneous SFP+ port, SDVoE fibre LC/PC-LC/PC Duplex MM OM3
- Transmission Distance: Up to 300m point-to-point via supplied Multi-Mode fibre module (maximum distance depends on the SFP+ module and type of fibre used)
- Network: 1x RJ45 (LAN Serving)
- USB: 2x USB 2.0 (Type-A) and 1x USB 2.0 (Mini-B), integrated USB hub for point-to-point KVM extension
- USB Simultaneous Mode: A host on a single transceiver can connect to up to 7 transceivers (mass storage devices not supported in Simultaneous Mode)
- IR: 1x 3.5mm stereo mini-jack Infra Red receiver input and Infra Red emitter output
- RS-232: 1x Phoenix (3 pin) connector
- Bi-Directional: Simultaneous bi-directional AV signal extension
Power
- Power Input: 12V/3A
Weight and Dimensions
- Dimensions: 231.5mm [W] x 25mm [H] x 108mm [D]
- Net Weight: 700g
