Furutech Flux-C15 NCF In-line Power Filter

Furutech Flux-C15 NCF In-line Power Filter

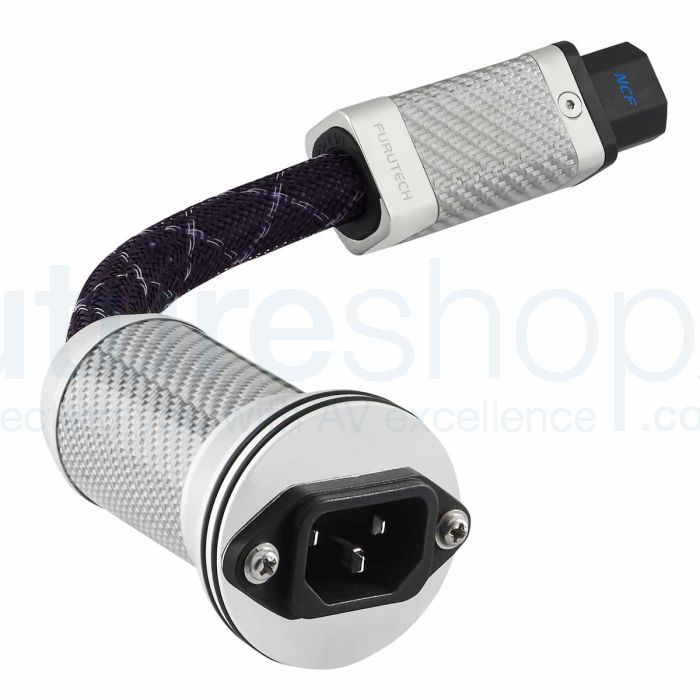

The Furutech Flux-C15 NCF is an in-line AC filter, inserted between a power cable and a component or distribution block rather than replacing anything in the chain. Furutech have built filters of this type since 2010, and the argument behind them is simple: what a system reproduces is shaped by the electricity arriving at it, and a modern household mains carries interference from the grid, from other appliances and increasingly from the system's own digital components feeding switching noise back onto the shared supply. An in-line filter blocks noise entering the component and also stops noise generated inside it spreading back out to everything else.

What separates the Flux-C15 from the flagship Flux-50 is its shape. It uses the CF-C15 NCF (R) slimline IEC, engineered specifically for direct connection to slim-profile video equipment including 4K and 8K televisions, where the depth behind the panel is measured in a couple of centimetres and a conventional IEC body simply will not fit. That opens up applications Furutech's earlier filters could not serve, and televisions are precisely the components most likely to be polluting a system's mains in the first place.

The connector itself is a three-layer construction: a housing machined from stainless alloy, a damping resin core, and a carbon fibre outer finish, with a cable clamp made from a heavy special metal chosen for its damping. Into the plug body goes NCF, Furutech's Nano Crystal Formula, which combines nano-sized crystalline particles that generate negative ions to eliminate static, ceramic particles and powdered carbon for piezo damping, with nylon and fibreglass forming a mechanically and electrically non-resonant body. The electrodes are high-conductivity pure copper, rhodium plated and then given Furutech's Alpha process.

Filtering is handled by the AC-1501R EMI-filtering IEC with rhodium-plated Alpha non-magnetic copper alloy conductors, built as a parallel circuit with an in-line coil and condenser. The published figures are specific rather than rhetorical: noise reduced by 10dB at 1MHz and by more than 30dB at 10MHz, the range where switch-mode supplies and digital processing do their worst. Furutech upgraded the internal coil and condenser in 2024, raising the attenuation another step, and the filter assembly also incorporates their passive GC-303 EMI filtering material and Neo Damper technology in the housing.

The cable between the two ends is a high-density Alpha OCC conductor with special audio grade PE insulation chosen to reduce capacitance, an Alpha conductor shield against radiated noise, and a RoHS-compliant audio grade flexible PVC sheath for vibration isolation. Furutech's patented Floating Field Damper earth and ground jumper system is included under US patent 6,669,491, along with a patent-pending metal cable clamp. The unit is rated at 15A on a 125V supply or 10A on 250V, so on UK mains the 10A figure applies, which suits source components, televisions and processors rather than large power amplifiers.

What Furutech say about the Flux-C15 NCF

AC Power Can Make or Break Your System

The quality of the audio you hear from your home entertainment system is directly linked to the incoming electricity. The often violent fluctuations and interference on the AC line and its grounding can significantly impair the performance of your components.

The Flux-C15 NCF is a sophisticated, luxuriously designed inline power filtering unit that addresses many common issues caused by contaminated electrical power lines. It provides protection against distortion from ground noise, voltage spikes and sags, and high-frequency noise from other components within your system. It also reduces digital noise from processors and digital interconnects.

Key Features of the Flux-C15 NCF

The Flux-C15 NCF features the Innovations Award-winning CF-C15 NCF (R) IEC connector. This connector combines three "active" materials: nano-sized crystalline particles, ceramic particles, and powdered carbon. Additionally, nylon and fiberglass are integrated to create an extremely effective, mechanically and electrically non-resonant connector body, making it one of the most sophisticated connectors in the world. It also incorporates the AC-1501R EMI-filtering system with Neo Damper technology.

The Flux-C15 NCF Inline AC Filter reduces noise across every component it is used with, resulting in natural, highly detailed sound with an impressively silent noise floor. It enhances soundstaging, improves imaging, and delivers musical highs, a captivating midrange, tight and controlled bass, and abundant power and dynamics.

Specifications

• Designed for connection between power cables and power distributors or between power cables and components, eliminating and preventing radiated AC noise.
• Features the AC-1501R EMI-filtering IEC with rhodium-plated α (Alpha) non-magnetic copper alloy conductors.
• The AC-1501R EMI filter includes a parallel circuit with an in-line coil and condenser, reducing noise by 10dB at 1MHz and over 30dB at 10MHz.
• Utilizes the Floating Field Damper (Earth/Ground Jumper System), U.S. Patent No.: 6,669,491.
• Incorporates a patent-pending metal cable clamp that improves grip and minimizes mechanically and electrically induced distortion.
• Features an α (Alpha) conductor shield that protects against radiated noise.
• RoHS-compliant audio-grade flexible PVC sheath, designed to enhance vibration isolation.
• Special audio-grade PE insulation to reduce capacitance.
• Includes Furutech's proprietary passive GC-303 EMI filtering material.
• Equipped with Furutech's top-tier Nano-sized Crystalline Piezo Ceramic rhodium-plated α (Alpha) non-magnetic CF-C15 NCF (R) High End Slimline IEC connector, specially engineered for direct connection to slim-profile video equipment, including 4K and 8K TVs.

Rating: AC 125V 15A / AC 250V 10A 50/60Hz

From Furutech's Japanese page:

In 2010, Furutech developed an adaptor-type inline filter unit with a built-in filter, inserted between a power cable and an AC power tap or audio equipment. Combining thorough noise removal with countermeasures against the harmful vibration that enters via the power cable, it has delivered unprecedented clarity of sound through clean power supply with harmful noise and vibration blocked.

Then in 2016, the flagship model Flux-50 was renewed to NCF specification. Neo Damper Technology, using a special damping material, was adopted for the filter-side housing, making the existing damping performance stronger still. Furthermore, from 2024, an upgrade to the internal coil and condenser raised the noise attenuation characteristics another step.

And now, for the IEC plug side, the CF-C15 NCF (R) has been adopted, with the special material NCF compounded into the plug body as a countermeasure against static electricity, dramatically increasing the electrostatic effect. In addition, the adoption of a slim-type housing means it can now be used in locations where this was not previously possible.

Features:

• An adaptor-type power supply unit with a built-in filter for thoroughly removing the noise components of the AC supply. Used by inserting it between the power cable and a power tap or audio equipment, it not only blocks noise from outside but also prevents the spread of noise from the power section to the outside, delivering clean power.
• The inlet plug uses Furutech's highest grade plug, the CF-C15 NCF (R). The housing is machined from stainless alloy, a special resin with damping properties is used inside, and the outside is finished in carbon fibre, a three-layer construction. The cable clamp uses a heavy special metal with damping characteristics, delivering a powerful damping effect. The special material
• NCF is also compounded in as a countermeasure against static electricity. In addition to the existing powerful damping effect, the electrostatic effect is increased. This suppresses the generation of noise, heightens the sense of silence, and by removing muddiness from the sound draws out the original appeal of the source that was previously buried.
• The electrode sections use high-conductivity pure copper, rhodium plated and then given the Alpha process treatment. An earth jumper is also fitted, to suppress unwanted radiated noise and improve the quality of the audio system as a whole.
• The cable uses a high-density α (Alpha) conductor of OCC material.

Specifications

About Furutech

Furutech, founded in 1988, designs and manufactures an extraordinary range of A/V cables made with extremely high purity OCC single-crystal oxygen-free copper. Furutech have several complete lines of analog and digital, power and coaxial cables available in terminated and bulk quantities. Furutech make a wide range of highest quality OEM A/V connectors and other signal transfer parts including power, speaker, IEC and specialized Hyper Audio Quality outlet receptacles. All metal components are treated with Furutech’s proprietary 2-Stage Alpha Cryogenic and Ring Demagnetization Process during manufacture that ensures the lowest achievable levels of distortion and noise.

Furutech offers a full line of elegantly engineered and designed power distribution and filter components made with an attention to detail found nowhere elsewhere. Furutech knows each and every part of the chain, no matter how small, is as important as the next, so they lavish maximum attention on all aspects of AC power transfer. As with cables, the separate parts go through the complete Alpha Process, and also benefit from the effects of GC-303, an applied material that absorbs EMI (Electromagnetic Interference). Furutech's Reference Line of cables and interconnects also include this anti-EMI technology.

Furutech's multistep and highly specialized techniques result in extremely low-noise, fast and undistorted signal transfer that begins with the incoming AC mains power, an important factor overlooked by many.

At Furutech, everyone there is passionately devoted to reaching the highest watermark in reference-grade A/V cables, OEM parts and accessories for home and car audio where Furutech maintain a very strong presence. Furutech's mission is building the absolutely best products imaginable whatever the effort involved, and offering them at a price/performance ratio that deeply satisfies every purchaser. Furutech’s Pure Transmission Design Concept improves every element of signal transmission, from the AC to the speaker.
