The new Gemini3.0 – the best just got upgraded! As with the original Gemini cable, the Gemini3.0 carries audio and power in two separate cables. This separates the delicate USB data signal from the USB power.

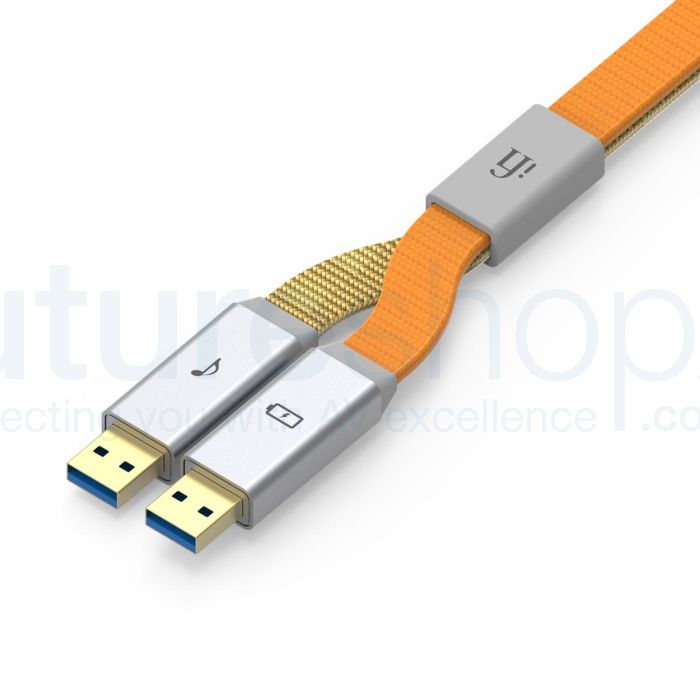

iFi Audio Gemini 3.0 Dual-Headed USB Audio Cable



The new Gemini3.0 – the best just got upgraded! With generic mass-produced USB cables, the data and power cables are normally compacted. This means that they do not conduct anywhere near as well as they should (imagine laying signal and power cables together in a high-end audio system!) and are not sufficiently shielded from each other. This negatively impacts on the USB signal quality that in turn, hampers sound quality.

Not so with the Gemini3.0.

As with the original Gemini cable, the Gemini3.0 carries audio and power in two separate cables. This separates the delicate USB data signal from the USB power.

It employs heavy OFHC continuous copper silver matrix conductors for the best possible signal transfer. The construction is a custom minimum inductance parallel type with quadruple shields – this construction protects the cable from RFI and EMI noise to provide the cleanest transfer medium possible:

iFi Audio Gemini 3.0 USB Conductor Comparison Diagram

In a normal USB cable, the power and audio signals are confined together with cross-interference and insufficient shielding between eachother. However in the iFi Audio Gemini 3.0 USB cable, the power and audio signals are individually transferred with adequate shielding and no interference between them.

With the machined FINAL connectors and atypical RF3 filter designs, the iFi Gemini3.0 sets a whole new sonic benchmark for computer audio transmission.



Features:

  • Quadrupe Shields
  • 5.0Gbps USB3.0 Superspeed
  • FINAL USB audiophile connector
  • The power of RF3



Need for speed

USB3.0 is vastly superior to USB2.0 at handling high-data volumes. The USB3.0 platform mandates better connectors and higher quality cables – the new Gemini3.0 meets these needs with ease. This much higher standard transmission platform means USB audio passes with the least disturbance. It is akin to driving on a newly paved highway compared to with potholes. The former enables faster, smoother and less-jittery audio & power transfer. The sonic benefits are proof for all to hear.

As audio transmission standards improve, the Gemini3.0 with its USB ultra-speed bandwidth of 5.0Gbps, is also future-proofed.



The Gemini difference continues

As with the original Gemini cable, in the Gemini3.0 the power cable is heavier gauge and audio has more cores. Furthermore, signal and ground have their own respective geometry for optimal conductivity. There are dual-headed designs and then there is the Gemini3.0 Dual-Headed design. Nothing comes close.



Exceptional from beginning to end

In the Gemini3.0 the signal runs through the cable and the connector. This means the connector too must be exceptional. Most USB cables use moulded plastic covered connections that do not shield the high frequencies present in the USB data link, so noise will radiate out. Durability is also compromised as very few make their own connectors.

The FINAL USB connectors provide impeccable end-to-end RF shielding, being machined entirely from solid, aircraft-grade aluminium. Plus gold-plated connections make for years of steadfast service.



The power of RF3

Most standard USB cables do not address RF issues. Most ‘off the shelf‘ versions that are fitted with filters work over too narrow a range. And even then this is only fitted at the ends of the cables, leaving the length of the cable to act as an antennae.

The Gemini3.0 is fitted with three custom-made metal oxide ceramic RF noise silencers. Each has a different effective range so that they greatly broaden the range over which RF noise is silenced. Furthermore, the middle silencer is adjustable and can be moved along the whole length of the cable. This then “detunes” the antennae formed by the cable, depending on the conditions and requirements in the system. The other 2 silencers should be kept as close to each respective end as possible.

iFi Audio Gemini 3.0 RF Filters Impedance Graph



A match made in USB heaven

The Gemini3.0 is a perfect match with the iGalvanic3.0 and the micro/nano USB3.0. The iGalvanic3.0 fully galvanically isolates the USB3.0/2.0 signal and power.

The micro/nano USB3.0 both boast a Super Regulator, not only with super low-noise (0.1uV/0.5uV) but also with super low output impedance (around 0.00015 Ohm at 1KHz, as low as 0.00003 Ohm at 100Hz to DC) to maximise the total USB connection.



Specification:

  • Compatible with High-Speed USB3.0 (24Bit/192khz and higher supported)
  • USB DATA:
    • Construction: Minimum inductance parallel construction
    • Conductors: 24 and 28AWG
    • Conductor Material: Heavy OFHC continuous cast copper silver matrix
    • Insulation: HD Polyethylene
    • Shielding: Quadruple-shields
    • Impedance: 90Ohms
    • AC Spark insulation: 1500V
    • Connectors: iFi 'FINAL' USB connectors
    • Insulation resistance: 100Mohm
    • Tensile strength: 1500PSI
  • USB POWER:
    • Construction: Minimum inductance parallel construction
    • Conductors: 12AWG
    • Conductor material: Heavy OFHC continuous cast copper
    • Insulation: Linear Polyethylene (LPE) insulation
    • Current rating: 30A
  • Lengths / Weights: 0.7m - 150g (0.33lbs) / 1.5m - 170g (0.37lbs)
  • Warranty: 12 Months



About iFi Audio Made in United Kingdom

iFi Audio is an award-winning audio tech company dedicated to enhancing your music enjoyment. With a mission to improve sound quality and eliminate noise, distortion, and hiss, iFi Audio offers a wide range of products that cater to headphones, speakers, portable audio devices, phones, and TVs. By doing so, they aim to deliver studio-quality audio that allows you to experience music as the artists intended.

Since its establishment in 2012, iFi Audio has been driven by the love of music and a commitment to making a difference in people's lives. With over 50 meticulously designed and manufactured products, they ensure every detail meets their high standards. Sourcing parts from around the world, including Germany, the USA, and Japan, they bring together global expertise to create exceptional audio devices.

At the heart of iFi Audio's business are its customers. They prioritise delivering the highest quality audio wherever you are, whether in the comfort of your home or on the go. Their distribution centre in the USA serves renowned retailers such as B&H and etailz, expanding their global network and reaching more music enthusiasts.

iFi Audio takes pride in its eco-friendly practices, using recyclable materials like aluminium, paper, and recycled plastics for its products and packaging. They strictly adhere to environmental standards, ensuring their components are hazardous toxins-free.

With a focus on Class A analogue circuitry and maintaining the audio signal's integrity, iFi Audio's products offer exceptional performance without compromising environmental sustainability. They believe that how a product looks, performs, and impacts the environment all matter, and they strive to deliver audio solutions that meet these criteria.

Experience the difference of high-quality audio with iFi Audio and immerse yourself in the joy of music.



Specification:

  • Compatible with High-Speed USB3.0 (24Bit/192khz and higher supported)
  • USB DATA:
    • Construction: Minimum inductance parallel construction
    • Conductors: 24 and 28AWG
    • Conductor Material: Heavy OFHC continuous cast copper silver matrix
    • Insulation: HD Polyethylene
    • Shielding: Quadruple-shields
    • Impedance: 90Ohms
    • AC Spark insulation: 1500V
    • Connectors: iFi 'FINAL' USB connectors
    • Insulation resistance: 100Mohm
    • Tensile strength: 1500PSI
  • USB POWER:
    • Construction: Minimum inductance parallel construction
    • Conductors: 12AWG
    • Conductor material: Heavy OFHC continuous cast copper
    • Insulation: Linear Polyethylene (LPE) insulation
    • Current rating: 30A
  • Lengths / Weights: 0.7m - 150g (0.33lbs) / 1.5m - 170g (0.37lbs)
  • Warranty: 12 Months
