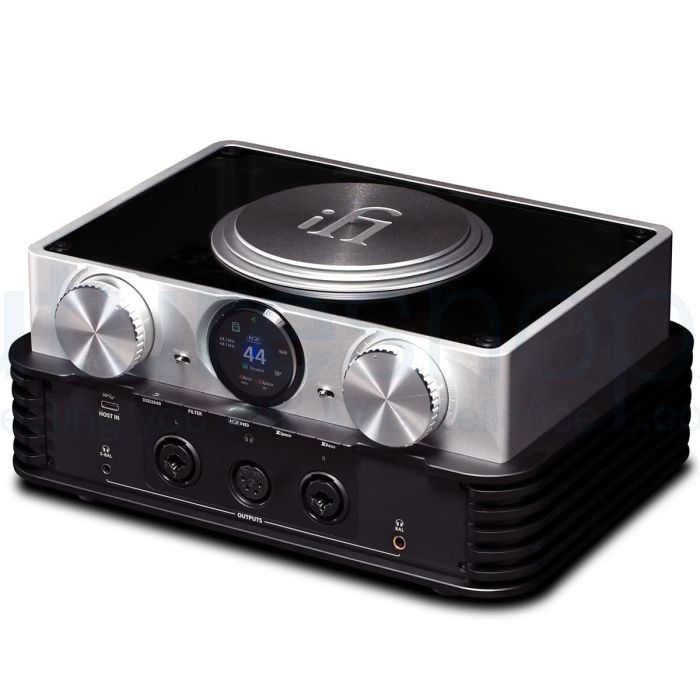

iFi Audio iDSD Phantom Reference DAC Streamer and Headphone Amplifier
The iDSD Phantom is iFi's flagship all-in-one system: a reference-class DAC, an ultra-resolution streamer and a genuinely powerful headphone amplifier housed in a single desktop unit. At its core sits a custom-coded FPGA that performs studio-grade DSD2048 remastering, a process previously reserved for professional mastering studios, applied here to four Burr-Brown DSD1793 converters running in a custom interleaved configuration. The result is a level of native decoding resolution that few desktop DACs attempt, let alone achieve.
What sets the Phantom apart is choice. Switch in real time between fully balanced Class A solid-state operation, where discrete J-FETs deliver speed and precision, and tube mode, where hand-matched NOS GE5670 valves bring a warmer, more liquid character. Tube+ pushes that warmth further by boosting second-order harmonics. Behind the amplification sits serious headroom too: up to 4,676mW RMS and a 7,747mW peak, enough to drive demanding planar and high-impedance headphones without strain. On the streaming side, the Phantom supports Qobuz Connect, Tidal Connect, Spotify Connect, Roon Ready and AirPlay 2, controlled through iFi's Nexis app.
This is a system centrepiece rather than a simple desktop DAC. It can drive passive speakers through an amplifier, power active speakers directly, or sit at the heart of a dedicated headphone setup, and the bundled iPower Elite 15V power supply, remote control and full cable set mean it is ready to go straight out of the box.
Here is what iFi says about the iDSD Phantom
Uniting a reference-class DAC, ultra-resolution streamer and powerful headphone amp into one, the PHANTOM is a trinity of iFi innovation, engineered for complete musical immersion.
Features
- Studio-Grade DSD2048 Remastering: The iDSD PHANTOM brings DSD Remastering, previously only available to the world's best mastering studios, to the hands of the consumer via a custom-coded FPGA, to transform any file and ultimately make music sound closer to a professionally remastered recording. DSD2048 represents a new pinnacle for our development of this technology.
- Real-Time Tube/Solid-State Switching: Choose between two fully balanced Class A circuit modes – discrete solid-state or tube – in real time. Both use the highest-grade components, with the tube mode powered by hand-selected, matched NOS GE5670 valves. Love the rich, analogue warmth of tubes? Activate Tube+ mode to boost 2nd-order harmonics by 6dB for an even more fluid, musical sound.
- JVCKENWOOD's K2 and K2HD Technology: K2HD restores rich, natural harmonics to lifeless digital recordings. Its advanced high-frequency extension revives overtones beyond 22kHz, delivering audio quality close to the original master. We have worked extensively with JVCKENWOOD to bring their renowned K2HD Technology to our most desirable products, and are proud to finally include this technology in our latest flagship DAC.
- 4,676mW RMS Headphone Output: The iDSD PHANTOM's amplification stage is not only highly advanced, but also extraordinarily powerful. With up to 4,676mW RMS power, and a peak output of 7,747mW, the iDSD PHANTOM can effortlessly drive even the most demanding headphones in your collection.
The World Premiere of DSD2048
For the first time, our Crysopeia FPGA engine brings DSD2048 Remastering to the comfort of your home, drawing on technology used in Japan's mastering studios. Four Burr-Brown DSD1793s operate in a custom interleaved configuration for native decoding of signals up to DSD2048, unlocking exceptional low-level detail for playback that rivals a professionally remastered recording.
Three Voices. One PHANTOM.
The PHANTOM delivers the experience of three devices in one. Move between Solid-State mode, where discrete J-FETs deliver lightning-fast precision; Tube mode, where hand-matched NOS GE5670s provide liquid smoothness; and Tube+, which pushes the tube character for golden-era warmth. Pair with the PHANTOM's prodigious 7,747mW¹ peak output to craft the ideal synergy with your favourite cans.
Queue up Qobuz
Introducing our latest ultra-resolution streaming engine. The iDSD PHANTOM opens the door to Qobuz Connect, alongside Tidal Connect, Roon Ready, Spotify Connect, AirPlay 2, and more. This evolution also brings enhanced stability, smoother radio performance, and a more intuitive UI with deeper customisation. With the new and updated Nexis app, it's now easier than ever to connect and queue music from anywhere in your home.
Studio-Inspired Restoration
In collaboration with JVCKENWOOD, the PHANTOM incorporates K2 and K2HD Technology. By restoring harmonic content lost during production or digital encoding, it revives the musicality of the original performance.
The Final Brushstrokes
XBass Pro is our analogue shelving EQ, available in 10, 20, and 40Hz options. It lifts low frequencies without clouding the midrange. XSpace Pro goes far beyond crossfeed, pushing the music outside your head without sacrificing soundstage – just like speaker playback. Use the 30-, 60-, and 90-degree settings to find the most natural presentation for your setup. Then use the array of digital filters to perfect the time-domain response.
Mastered from the Ground Up
A re-designed, constant impedance negative feedback system ensures XBass Pro, XSpace Pro, and DSD Remastering operate in perfect harmony. A dedicated common-mode servo smooths XBass' on/off transitions and maintains LF consistency at high levels. We also fine-tuned the tubes' supply voltage to enhance overall linearity in the audio output.
Wi-Fi Setup, Made Simple
Ethernet delivers the most stable streaming experience and the fastest initial setup, but for those who want wireless, our Nexis app provides a new way of pairing to your router over Bluetooth. Nexis also gives you direct access to advanced streamer settings, connected storage devices, and seamless over-the-air updates, all from one place.
The Phantom Experience
Vanish Into The Music - The iDSD PHANTOM can be connected to high-end active speakers, or an amplifier to drive passive speakers. This is the quintessential iDSD PHANTOM experience - your Hi-Fi system will be elevated, and your listening room transformed with the power and versatility of your new system centrepiece.
Head-Fi Heaven - The iDSD PHANTOM is the ideal choice to drive a high-end living room headphone setup. With its incredible headphone output and feature set at your fingertips, connecting your favourite headphones will unlock new levels of detail and nuance, no matter how hard they are to drive.
A True All-In-One System - The iDSD PHANTOM is the perfect standalone device to power your headphones while at your desktop. Leveraging the full power of its All-In-One design, headphone listeners can enjoy the experience of a complete high-end system in a single desktop device.
A Studio-Grade Experience - The iDSD PHANTOM can be connected to bookshelf speakers or studio monitors to instantly enhance your desktop listening experience. Use high-end customisation features to empower your desktop Hi-Fi setup, tailor your sound, and capture the essence of the prestigious studios that inspired its class-leading design.
Specification
- Balanced Headphones RMS: ≥4,676mW/17.3V (@64Ω); ≥564mW/18.4V (@600Ω)
- Balanced Line Outputs VRMS: 0-4.5V (Hi-Fi); 0-18V (Pro)
- Digital Inputs: 1x USB-B 3.0; 2x USB-A (Host); 1x USB-C (Host); 1x S/PDIF (coaxial); 1x AES3 (XLR); 1x RJ45; 1x M12; 1x Optical (SC); 1x BNC (Sync in)
- Dimensions: 256 x 185 x 120mm
- DNR 10-20kHz: ≥116dBA @ 600Ω Balanced; ≥115dBA @ 600Ω Single-Ended
- Headphone Output: 1x 3.5mm S-Balanced; 1x 4.4mm Balanced; 1x 4-pin XLR; 1x 3-pin XLR (L/R); 1x 6.3mm (positive phase); 1x 6.3mm (inverted phase)
- Hi-Res Support: PCM 768kHz; DSD512 (DSD2048 with Remastering)
- Line Outputs: 1x Balanced XLR (L/R); 1x RCA (L/R)
- Net Weight: 3.6kg (7.93 lbs)
- Output Noise, Max Output 20-20kHz: <30uV(A) @ 600Ω Balanced; <20uV(A) @ 600Ω Single-Ended
- Power Consumption: <27W idle; 75W max
- Single Ended Headphones RMS: ≥2,311mW/8.6V (@32Ω); ≥144mW/9.3V (@600Ω)
- Single Ended Line Outputs VRMS: 0-2.2V (Hi-Fi); 0-9V (Pro)
- SNR, Max Output 20-20kHz: ≥116dBA @ 600Ω Balanced; ≥114dBA @ 600Ω Single-Ended
- Streaming Platforms: Tidal Connect, Spotify Connect, Qobuz Connect, Roon, AirPlay, DLNA, UPnP
- THD+N: <0.005% @ 16Ω Balanced (2.4V, 20-20kHz); <0.01% @ 16Ω (1.27V, 20-20kHz)
Package Includes
- 1x iDSD Phantom
- 1x iPower Elite 15V
- 1x Infrared Remote Control
- 1x Optibox
- 1x RCA Cable
- 1x USB3.0 A to B Cable
- 1x Antenna
- 1x SC-SC Fibre Optic Cable
- 1x Quick Start Guide
- 1 Year Warranty Card
About iFi Audio
iFi Audio is an award-winning audio tech company dedicated to enhancing your music enjoyment. With a mission to improve sound quality and eliminate noise, distortion, and hiss, iFi Audio offers a wide range of products that cater to headphones, speakers, portable audio devices, phones, and TVs. By doing so, they aim to deliver studio-quality audio that allows you to experience music as the artists intended.
Since its establishment in 2012, iFi Audio has been driven by the love of music and a commitment to making a difference in people's lives. With over 50 meticulously designed and manufactured products, they ensure every detail meets their high standards. Sourcing parts from around the world, including Germany, the USA, and Japan, they bring together global expertise to create exceptional audio devices.
At the heart of iFi Audio's business are its customers. They prioritise delivering the highest quality audio wherever you are, whether in the comfort of your home or on the go. Their distribution centre in the USA serves renowned retailers such as B&H and etailz, expanding their global network and reaching more music enthusiasts.
iFi Audio takes pride in its eco-friendly practices, using recyclable materials like aluminium, paper, and recycled plastics for its products and packaging. They strictly adhere to environmental standards, ensuring their components are hazardous toxins-free.
With a focus on Class A analogue circuitry and maintaining the audio signal's integrity, iFi Audio's products offer exceptional performance without compromising environmental sustainability. They believe that how a product looks, performs, and impacts the environment all matter, and they strive to deliver audio solutions that meet these criteria.
Experience the difference of high-quality audio with iFi Audio and immerse yourself in the joy of music.
About iFi Audio
British-heritage maker of DACs, headphone amplifiers and streamers, from pocket dongles to home systems.
iFi audio is the sister brand of Abbingdon Music Research, which is headquartered in Southport, UK. The catalogue covers home audio, with DACs, amplifiers, DAC and amplifier combinations and streamers, and portable audio, including Bluetooth and USB-C dongle DACs. It also makes digital and audio cables, adapters and an Elite Audio range.
Read more about iFi Show less
Home audio lines with clear names
The ZEN series includes the ZEN Air DAC, ZEN DAC, ZEN CAN, ZEN Phono and ZEN Stream. The iDSD series includes the Valkyrie, Phantom and Diablo, and the NEO range includes the NEO iDSD and NEO Stream. The iCAN Phantom and the Hip-dac sit alongside them.
Portable products for your phone or laptop
The GO series covers the GO pod, GO link, GO bar and GO blu, which are small units for phones and laptops. Larger portable models include the xDSD Gryphon. Bluetooth and USB-C versions mean you can choose the connection that matches the device you already own.
Cables and adapters complete the catalogue
iFi lists digital cables, audio cables and adapters in its accessories range, including the GO cable. These are the parts that link an iFi unit to the rest of your system, so you can pick up the right lead from the same brand when you buy the DAC or amplifier.
Why we stock iFi
iFi solve specific problems rather than selling you a whole system. Noise on a USB feed, a laptop that cannot drive your headphones properly, hum from a ground loop. Each unit does one job well at a price that does not require a long think, which is why they turn up in so many systems.
Specification
- Balanced Headphones RMS: ≥4,676mW/17.3V (@64Ω); ≥564mW/18.4V (@600Ω)
- Balanced Line Outputs VRMS: 0-4.5V (Hi-Fi); 0-18V (Pro)
- Digital Inputs: 1x USB-B 3.0; 2x USB-A (Host); 1x USB-C (Host); 1x S/PDIF (coaxial); 1x AES3 (XLR); 1x RJ45; 1x M12; 1x Optical (SC); 1x BNC (Sync in)
- Dimensions: 256 x 185 x 120mm
- DNR 10-20kHz: ≥116dBA @ 600Ω Balanced; ≥115dBA @ 600Ω Single-Ended
- Headphone Output: 1x 3.5mm S-Balanced; 1x 4.4mm Balanced; 1x 4-pin XLR; 1x 3-pin XLR (L/R); 1x 6.3mm (positive phase); 1x 6.3mm (inverted phase)
- Hi-Res Support: PCM 768kHz; DSD512 (DSD2048 with Remastering)
- Line Outputs: 1x Balanced XLR (L/R); 1x RCA (L/R)
- Net Weight: 3.6kg (7.93 lbs)
- Output Noise, Max Output 20-20kHz: <30uV(A) @ 600Ω Balanced; <20uV(A) @ 600Ω Single-Ended
- Power Consumption: <27W idle; 75W max
- Single Ended Headphones RMS: ≥2,311mW/8.6V (@32Ω); ≥144mW/9.3V (@600Ω)
- Single Ended Line Outputs VRMS: 0-2.2V (Hi-Fi); 0-9V (Pro)
- SNR, Max Output 20-20kHz: ≥116dBA @ 600Ω Balanced; ≥114dBA @ 600Ω Single-Ended
- Streaming Platforms: Tidal Connect, Spotify Connect, Qobuz Connect, Roon, AirPlay, DLNA, UPnP
- THD+N: <0.005% @ 16Ω Balanced (2.4V, 20-20kHz); <0.01% @ 16Ω (1.27V, 20-20kHz)
