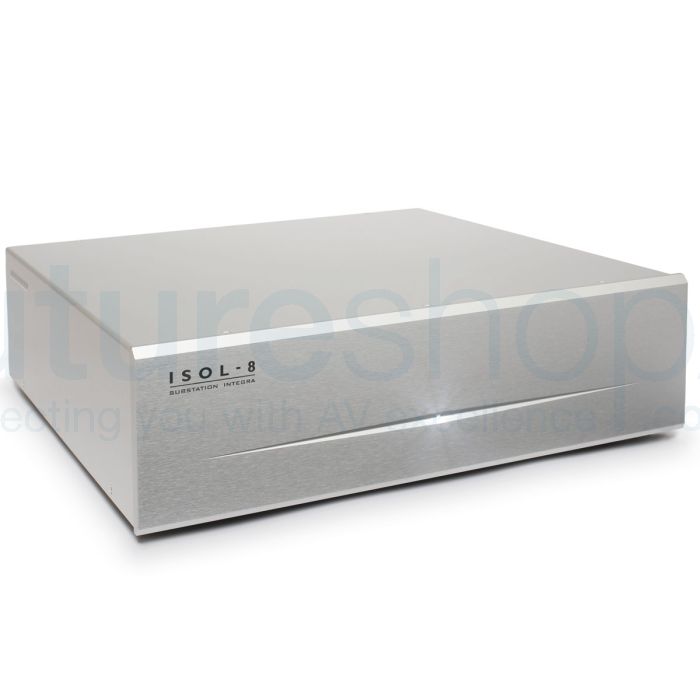

ISOL-8 SubStation Integra Mains Conditioner



Please Note : Power Cables are not supplied with this block.

The Substation Integra is a true high performance mains conditioning and distribution solution for a complete system. It combines all the features found in their acclaimed flagship SubStation LC and HC together in one high quality chassis.

A 20 Amp rated Neutrik latching input connector allows the 16A total capacity to be exploited with a suitable mains connection. The inlet is centrally positioned to minimise electrical and magnetic interaction between the two filter groups, which are individually protected by high quality magnetic circuit breakers.

The Substation Integra has two individual filter sections. There are four low to medium current outlets optimised for source components, and two high current outlets optimised for power hungry components such as amplifiers. All are served by a high capacity ISOL-8 Axis circuit which blocks any performance degrading DC present on the mains. All outputs are surge and spike protected. A custom wound choke also filters any noise present on the safety earth wiring.

The four outlets optimised for source components each have their own dedicated Transmodal filter. This prevents noise generated from each component within the system degrading the performance of another, reducing noise cross contamination between components. This phenomenon is potentially as damaging to sound and picture quality as noise attack from outside the system.

The two high current outlets are optimised for current hungry loads such as power amplifiers. The very low series resistance Transmodal topology means that high peak currents are passed effortlessly without dynamic compression, whilst still being effectively filtered.

The Substation Integra is engineered to provide a lifetime of reliable service. The beautifully crafted enclosure features a CNC engineered 10mm alloy front panel and aluminium lid.

All outlets are protected against dust and dirt to IP54. Premium polypropylene capacitors, Mundorf OFC inductors and ISOL-8 custom wound chokes ensure superior performance. Wiring is silver plated copper with PTFE insulation throughout.

With a little less current capacity and a lot less cost than its critically acclaimed LC and HC brethren, the Substation Integra provides a solid foundation for supplying high end systems with clean power. The comprehensive feature set and powerful, but dynamically transparent filter complement will ensure your system delivers its full potential every time.



Specification :

  • Colour: Black / Silver
  • Number of available outlets: 6 (4 low/med current. 2 high current)
  • Type of outlets available: 13A British chassis sockets also available in European Schuko sockets & 15A US sockets
  • Mains Inlet: 20A latching Neutrik powerCON (cable not supplied)
  • Construction: Steel chassis with black finish, Silver Aluminium front panel and lid (Black optional)
  • Mains Voltage:
    • 230VAC version for 220-240V AC
    • 117VAC version for 100-127V AC
    • US socket version is compatible with 100-127V AC & 220-240VAC
  • Maximum continuous Current: 6 Amps any one low/med power outlet, 6 Amps across all low/med power outlets, 16 Amps any one high power outlet, 16 Amps across all high power outlets
  • Protection: 2x rear panel circuit breaker
  • Dimensions (WxHxD): 435 x 131 x 410mm excluding connectors
  • Weight: 9.9Kg
  • Warranty: 5 Years





About ISOL-8 Made in United Kingdom

ISOL-8, a UK-based company, is at the forefront of providing top-of-the-line power conditioning and distribution equipment for hi-fi and audiovisual systems. Whether you require power management, a simple performance enhancement, or the latest state-of-the-art solutions, ISOL-8 has the perfect answer.

Established in 2003 by Nic Poulson, ISOL-8 addresses the issue of compromised power supplies in hi-fi and AV systems. With Poulson's background in broadcast engineering and his commitment to excellence, ISOL-8 has emerged as a leading authority in mains power conditioning for audio and AV applications.

Drawing on his expertise from working with the BBC and in audio amplification and airport lighting systems, Poulson recognised the need to address the overlooked power supply challenges in hi-fi and AV systems. This led to the formation of IsoTek Systems, followed by the establishment of ISOL-8 to continue the development of Poulson's groundbreaking ideas.

Poulson's innovative approach has revolutionised power conditioning in the industry. He pioneered using multiple filter sections to combat noise cross-contamination between audio components and introduced DC blocking techniques to enhance sound quality. ISOL-8's use of Transmodal filter technology, which effectively blocks common and differential mode noise without redirecting it to ground, sets them apart in the audio and AV applications market.

ISOL-8 has dispelled the negative perception associated with power conditioning by overcoming the shortcomings of previous designs and their inflated performance claims. Poulson's unwavering dedication to innovation and uncompromising standards has resulted in substantial performance gains for audio and AV systems affected by compromised mains power. As a result, ISOL-8 has garnered a loyal following among those who value exceptional sound quality. Today, the company offers diverse, reliable, practical solutions tailored to various audio and AV applications.

With ISOL-8's power cables, Powerline Axis, Powerline, Substation, Minisub 2, and Minisub Wave, you can elevate the performance of your audio and AV systems to new heights. Designed and manufactured in the UK, ISOL-8 ensures you receive the highest quality power conditioning products to optimise your listening and viewing experience.



About Isol-8

London-based maker of mains conditioning, filters and power distribution, designed and manufactured in the UK.

Isol-8 is based in London, and the company says it designs and manufactures its products in the UK. Its range covers mains conditioning, power distribution, cables and DC supplies for hi-fi. The products are grouped into High Performance, Audiophile and Custom or Professional ranges, so you can choose by system and budget.

Read more about Isol-8Show less

Transmodal filtering is the main technology

Isol-8 says its Transmodal filter technology blocks both common mode and differential mode noise without sending it to ground. This is the maker's own description. The company also lists DC blocking and several filter sections designed to stop noise passing from one part of the circuit to another.

Mains products cover different system sizes

The catalogue includes PowerLine, Substation, MiniSub and PowerStation products for distributing and conditioning mains. Choose by the number of components and the load you need to supply. Check the product page for outlet count and the maximum current.

Cables and DC supplies complete the range

Isol-8 also lists InLine and IsoLink cables, the Prometheus DC supply and The Grid. These extend the filtering approach to signal and DC connections, so you can use one maker across several parts of a power chain. Check the product page for lengths and connector types.

Shop all Isol-8 →

Specification :

  • Colour: Black / Silver
  • Number of available outlets: 6 (4 low/med current. 2 high current)
  • Type of outlets available: 13A British chassis sockets also available in European Schuko sockets & 15A US sockets
  • Mains Inlet: 20A latching Neutrik powerCON (cable not supplied)
  • Construction: Steel chassis with black finish, Silver Aluminium front panel and lid (Black optional)
  • Mains Voltage:
    • 230VAC version for 220-240V AC
    • 117VAC version for 100-127V AC
    • US socket version is compatible with 100-127V AC & 220-240V AC
  • Maximum continuous Current: 6 Amps any one low/med power outlet, 6 Amps across all low/med power outlets, 16 Amps any one high power outlet, 16 Amps across all high power outlets
  • Protection: 2x rear panel circuit breaker
  • Dimensions (WxHxD): 435 x 131 x 410mm excluding connectors
  • Weight: 9.9Kg
  • Warranty: 5 Years
