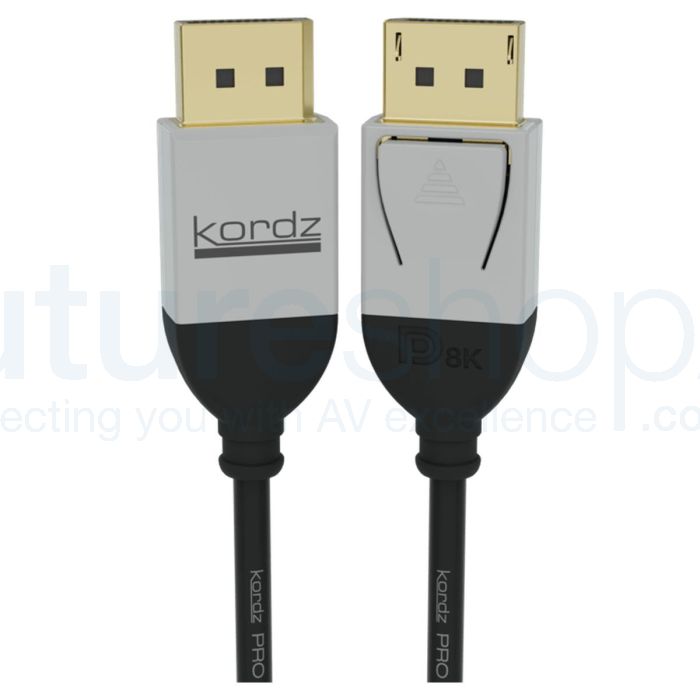

Kordz PRO Series 8K DisplayPort Cable
The Kordz PRO Series 8K DisplayPort Cable is a passive DisplayPort 1.4 cable engineered for professional displays, with latching connectors for a secure plug-in connection. It supports High Bit Rate 3 (HBR3) mode at up to 32.4Gbps and high resolution displays up to 8K, and it is backwards compatible with earlier DisplayPort standards. Display Stream Compression (DSC) 1.2, Forward Error Correction (FEC), HDR and HDCP 2.2 are supported, along with Expanded Audio Transport for up to 32 audio channels and sample rates up to 1536kHz.
Kordz use solid oxygen-free copper conductors: 34AWG on the 1m to 2m lengths and 28AWG on the 3m to 5m lengths. The primary conductors are foil shielded, with an overall foil shield and a tinned copper braid of at least 85% coverage on top, all inside a fire-rated PVC jacket. The DisplayPort connectors have premium diecast shells and solid OFC pins, both 24K gold plated, joined by contactless infrared induction soldering, with an ABS and PVC strain relief assembly at each end.
The cable is VESA certified at 8.1Gbps per lane, 32.4Gbps aggregate, at every passive length up to 5m. It comes in charcoal in six lengths from 1m to 5m, and it is backed by a Kordz lifetime warranty.
What Kordz say about the PRO Series 8K DisplayPort Cable
Kordz PRO Series 8K DisplayPort™ Cable is engineered to enrich professional displays through a flexible, slim profile, solid copper pins and a fire rated jacket. Our 8K DisplayPort™ Cable offers installation success, longevity and backwards compatibility with high resolution displays up to 8K and High Bit Rate 3 (HBR3) mode with data rate up to 32.4Gbps.
Product Outline
- Engineered and constructed to ensure installation success and longevity
- DisplayPort™ 1.4 8K offers backwards compatibility with earlier DisplayPort™ standards
- Supports high resolution displays up to 8K 7680 x 4320@60Hz DSC1.2
- Supports High Bit Rate 3 (HBR3) mode with data rate up to 32.4Gbps
- Supports Display Stream Compression (DSC) 1.2
- Forward Error Correction (FEC)
- Supports Expanded Audio Transport – up to 32 audio channels
- 1536kHz audio sample rate, and inclusion of all standard audio formats
- Available in lengths from 1m to 5m
Specifications
General
- Brand: Kordz
- Model: PRO Series 8K DisplayPort Cable (K25043, K25046)
- Type: Passive DisplayPort cable, latched
- DisplayPort Version: DisplayPort 1.4, backwards compatible with earlier DisplayPort standards
- Lengths: 1m, 1.5m, 2m, 3m, 4m, 5m
- Colour: Charcoal
- Warranty: Kordz Lifetime Warranty
DisplayPort Certification (passive, up to 5m)
- DisplayPort Standard: HBR3 (High Bit Rate 3)
- VESA Certified Data Rate: 8.1Gbps per lane, 32.4Gbps aggregate
- Supported Data Rate: ≥ 8.1Gbps per lane, 32.4Gbps aggregate (8K UHD)
Features
- Display Stream Compression (DSC) 1.2
- Forward Error Correction (FEC)
- High Dynamic Range (HDR)
- HDCP 2.2
- Expanded Audio Transport: up to 32 audio channels
- Audio Sample Rate: up to 1536kHz
- Audio Formats: all known audio formats
- Colour Spaces: ITU-R BT.601, ITU-R BT.709, sRGB, scRGB, YCbCr, xvYCC, Adobe RGB (1998), DCI-P3, Simplified Color Profile, ITU-BT.2020
Video Format Support: 4K UHD, all lengths (per lane / aggregate, 4 lane mode)
- 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0: 4096 x 2160p/24 at 2.23Gbps / 8.91Gbps
- 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0: 3840 x 2160p/23.98/24/29.97/30 at 2.23Gbps / 8.91Gbps
- 8-bit YCbCr 4:2:0: 3840 x 2160p/50/59.94/60 at 2.23Gbps / 8.91Gbps
- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 3840 x 2160p/50/59.94/60-2D at 4.46Gbps / 17.82Gbps
- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 3840 x 2160p/30-3D at 4.46Gbps / 17.82Gbps
- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 3840 x 2160p/120 at 8.91Gbps / 35.64Gbps
- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 3840 x 2160p/240 at 17.82Gbps / 71.28Gbps (achievable with DSC 1.2a visually lossless compression)
Video Format Support: 5K Wide UHD (per lane / aggregate, 4 lane mode)
- 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0: 5120 x 2160/24 at 2.97Gbps / 11.88Gbps
- 8-bit YCbCr 4:2:0: 5120 x 2160/50/59.94/60 at 2.78Gbps / 11.14Gbps
- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 5120 x 2160p/50/59.94/60-2D at 5.57Gbps / 22.28Gbps
- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 5120 x 2160p/30-3D at 5.57Gbps / 22.28Gbps
- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 5120 x 2160p/120 at 11.42Gbps / 45.66Gbps (achievable with DSC 1.2a visually lossless compression)
Video Format Support: 8K UHD (per lane / aggregate, 4 lane mode)
- 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 7680 x 4320/24 at 6.12Gbps / 24.48Gbps
- 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 7680 x 4320/30 at 6.12Gbps / 24.48Gbps
- 8-bit YCbCr 4:2:0: 7680 x 4320/50/59.94/60 at 6.12Gbps / 24.48Gbps
- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 7680 x 4320/50/59.94/60-2D at 12.41Gbps / 49.65Gbps (achievable with DSC 1.2a visually lossless compression)
- 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0: 7680 x 4320/30-3D at 12.41Gbps / 49.65Gbps (achievable with DSC 1.2a visually lossless compression)
- 8-bit 4:2:2: 7680 x 4320/120 at 25.55Gbps / 102.20Gbps (achievable with DSC 1.2a visually lossless compression)
Mechanical
- Conductor Gauge by Length: 34AWG (1m to 2m), 28AWG (3m to 5m)
- Cable Diameter: 4.5mm (34AWG), 7.5mm (28AWG)
- Mounting Depth: 61.1mm (34AWG), 73.1mm (28AWG)
- Cable Bend Radius: 18.0mm (34AWG), 30.0mm (28AWG)
- Retention Force: Latched, fixed locking
Construction
- Primary Conductors: Solid 34 to 28AWG OFC, length dependent
- Auxiliary Conductors: Solid 34 to 28AWG OFC, length dependent
- Primary Insulation: Polyethylene / polypropylene, length dependent
- Auxiliary Insulation: Polyethylene
- Primary Shielding: Al/Mylar, 100% coverage
- Overall Shielding: Al/Mylar, 100% coverage + tinned copper braid, min. 85% coverage
- Cable Jacket: Fire-rated PVC (VW-1 on the 1m to 2m lengths, UL CMG on the 3m to 5m lengths)
- DP Connector Shell: Premium diecast, 1 microinch 24K gold plated
- DP Connector Pins: Solid OFC, 15 microinch 24K gold plated
- Termination: Contactless IR induction soldering
- DP Backshell: ABS front shell with PVC injection moulded boot and strain relief
Product Codes
- 1m: K25043-0100-CH
- 1.5m: K25043-0150-CH
- 2m: K25043-0200-CH
- 3m: K25046-0300-CH
- 4m: K25046-0400-CH
- 5m: K25046-0500-CH
