MSolutions MS-6U41A USB KVM Extender Set up to 100m

£841.00 £700.83
SKU
MS-6U41A
Free UK Delivery
12 Months
New
3 - 5 Days
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

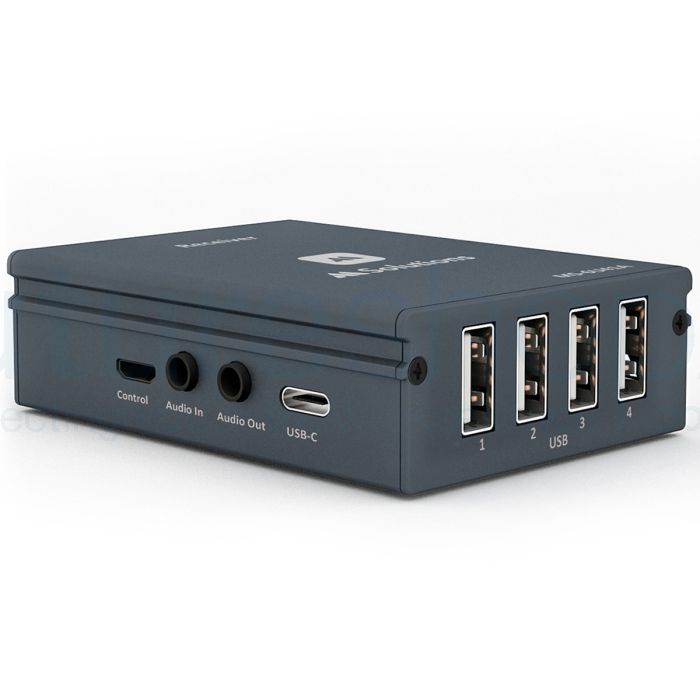

The MSolutions MS-6U41A is a high performance USB extender allowing for a single USB-C data, and 4x USB3.0 compatible devices to be extended to distances of up to 100m over a single CATx cable infrastructure.

MSolutions MS-6U41A USB KVM Extender Set up to 100m

The MSolutions MS-6U41A is a high performance USB extender allowing for a single USB-C data, and 4x USB3.0 compatible devices to be extended to distances of up to 100m over a single CATx cable infrastructure. The extender features a bi-directional analogue audio pass-through channel allowing for 2ch audio to be run from TX to RX, or RX to TX. RS-232 serial pass-through and bi-directional 12V PoC (Power over Cable) expand the capabilities of this extender kit for a variety of commercial uses including USB peripheral extension, and remote connectivity for USB VC equipment.

Features

  • Uncompressed extension of USB data and analogue audio up to 100m over single CAT
  • 1x USB-C channel for data connectivity of USB-C devices across the link
  • 4x USB2.0 channels with USB3.0 compatibility for KVM connectivity of multiple USB devices across the link – max 320Mbps data rate pass-through (combined)
  • Flexible USB extension for: USB3.0 cameras, touch screens, smart boards, hard drivers, games controllers, USB audio devices, printers, scanners and HID’s (mouse or keyboard)
  • Supports transparent USB2.0 signals and true plug-and-play (no software ot drivers required)
  • In-built analogue unbalanced audio extender allowing 2ch stereo audio to be sent between TX and RX, or RX and TX
  • Bi-directional RS-232 serial pass through
  • Bi-directional 12V PoC (Power over Cable)

Specification

  • USB connectivity TX: 1x USB-C (female) – data only
  • USB connectivity RX: 1x USB-C (female), 4x USB Type A (female) – data only
  • Micro-USB connectivity (TX & RX): for product update, and control
  • Audio connectivity (TX & RX): 1x 3.5mm stereo jack (female) – send or receive
  • IR connectivity (TX & RX): 1x 3.5mm stereo jack (female) – IR TX or IR RX
  • RS-232 connectivity (TX & RX): 1x 3-pin phoenix connector, block included
  • Power supply: 1x 12V 2A DC – connections on either TX or RX
  • Power consumption: 4.5W
  • Individual unit dimensions (W x D x H): 60 x 84 x 25mm
  • Individual unit weight: 0.1kg
  • Package dimensions (W x D x H): 160mm x 130mm x 75mm
  • Package weight: 0.5kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Package Contents

  • 1x MS-6U41A transmitter
  • 1x MS-6U41A receiver
  • 1x 12V 2A power supply with US, UK & EU territory clips
  • 1x IR receiver (5V) with 1m cable
  • 1x IR transmitter (5V) with 1m cable
  • 2x Surface mounting brackets
  • 1x User Guide

About MSolutions

The concept for the first MSolutions products for HDBaseT networks was conceived in 2016. Since then, they have developed state of the art multimedia and switching solutions for leading companies and integrators in the ProAV and across markets including public sector. The MSolutions team has been directly involved in HDBaseT development, support and sales since the standard was introduced in 2010. Their R&D team develops advanced, high quality systems that make media networks based on HDBaseT easier to install and more stable and enjoyable for end users.

MSolutions is committed to developing creative, reliable and value-oriented audio/video solutions and distributing them worldwide with an uncompromising level of service and support.

MSolutions takes great pride in the quality of its product range and offers a reliable service with timely technical support for customers in the field. When their customers purchase their products, they know they are getting a high quality, reliable and high performance product.

MSolutions consider the relationships with their customers to be crucial to their success. Every product carries a full guarantee and their commitment to providing a great service.

As MSoltuions continue to transform ideas into reality, they look forward to supporting you and your business needs today, tomorrow and beyond.

Specification

  • USB connectivity TX: 1x USB-C (female) – data only
  • USB connectivity RX: 1x USB-C (female), 4x USB Type A (female) – data only
  • Micro-USB connectivity (TX & RX): for product update, and control
  • Audio connectivity (TX & RX): 1x 3.5mm stereo jack (female) – send or receive
  • IR connectivity (TX & RX): 1x 3.5mm stereo jack (female) – IR TX or IR RX
  • RS-232 connectivity (TX & RX): 1x 3-pin phoenix connector, block included
  • Power supply: 1x 12V 2A DC – connections on either TX or RX
  • Power consumption: 4.5W
  • Individual unit dimensions (W x D x H): 60 x 84 x 25mm
  • Individual unit weight: 0.1kg
  • Package dimensions (W x D x H): 160mm x 130mm x 75mm
  • Package weight: 0.5kg
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Storage temperature: -4°F to 140°F (-20°C to 60°C)
  • Operating humidity: 0-80% non condensing

Package Contents

  • 1x MS-6U41A transmitter
  • 1x MS-6U41A receiver
  • 1x 12V 2A power supply with US, UK & EU territory clips
  • 1x IR receiver (5V) with 1m cable
  • 1x IR transmitter (5V) with 1m cable
  • 2x Surface mounting brackets
  • 1x User Guide
