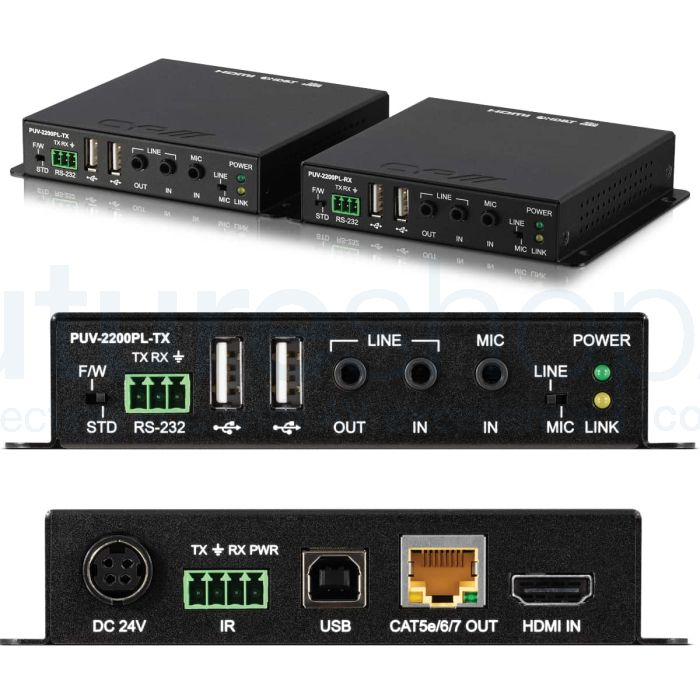

PUV-2200PL-KIT – HDBaseT2 LITE Transmitter & Receiver Kit with USB, PoH & Audio Pathway
The CYP PUV-2200PL-KIT is a HDBaseT 2.0 Lite transmitter and receiver kit that sends uncompressed 4K HDMI, audio, USB and control between two locations over a single Cat5e, Cat6 or Cat7 cable, supplied as a matched transmitter and receiver pair. It carries a native, uncompressed signal over runs of up to 40 metres, delivering all the core benefits of HDBaseT 2.0 in a more cost-effective Lite version aimed at shorter cable distances. This makes it a practical choice for meeting rooms, classrooms and other spaces where a clean 4K signal and flexible connectivity are needed without the reach of a full HDBaseT system.
The kit supports UHD and DCI 4K resolutions up to 3840x2160 and 4096x2160 at 60Hz (4:2:0, 8-bit), along with 16-bit deep colour up to 1080p@60Hz, and is HDMI 2.0 and DVI 1.0 compatible with HDCP 2.2 and legacy HDCP 1.x support. Audio is handled over HDMI as LPCM 2.0, 5.1 and 7.1 plus Bitstream and HD Bitstream, and the kit adds a flexible analogue audio pathway with stereo input and output at each end together with a microphone input, giving useful options for local audio and conferencing. A multi-port USB 3.0 extension carries peripherals over the same cable, with a USB 3 host connection at the transmitter and multiple USB Type A ports at both ends, and control is available via bi-directional IR, RS-232 and USB.
All audio, video, USB and control travel together on one cable, with the receiver powered directly from the transmitter using 48V Power over HDBaseT (PoH), so only the transmitter needs a local supply. Both units share a compact enclosure measuring 128mm wide, 25mm high and 108mm deep, allowing them to be mounted discreetly behind a source or screen. The PUV-2200PL-KIT is TAA compliant, suiting public sector and government procurement requirements, and is backed by a five year warranty.
What CYP say about the PUV-2200PL-KIT
The PUV-2200PL-KIT HDMI over single CAT5e/6/7 Transmitter and Receiver Kit can send uncompressed audio/video, along with HD audio and USB, over a single run of CAT5e/6/7 cable at a distance up to 40 metres. This system also features analogue audio input/output and mic input for flexible audio options. Multi-control interfaces are available which includes IR, RS-232 and USB connection.
Specifications
General
- Brand: CYP
- Model: PUV-2200PL-KIT
- Product Type: HDBaseT 2.0 Lite 4K Extender Kit with USB (Transmitter + Receiver)
- Extension Standard: HDBaseT 2.0 Lite
- Compression: None (uncompressed audio/video)
- Maximum Resolution: 3840x2160@60Hz (4:2:0, 8-bit) & 4096x2160@60Hz (4:2:0, 8-bit)
- Deep Colour: 16-bit up to 1080p@60Hz
- Video Compatibility: HDMI 2.0, DVI 1.0
- HDCP: 2.2 and 1.x
- Extension Distance: Up to 40m (Cat5e/6/7)
- USB Extension: USB 3.0 (multi-port; USB 3 host at transmitter, USB Type A ports at transmitter and receiver)
- Audio Pathway: Analogue stereo in/out plus microphone input
- Control: Bi-directional IR, RS-232, USB
- Certification: TAA Compliant
- Warranty: 5 Year Warranty
Audio
- HDMI Audio: LPCM 2.0 / 5.1 / 7.1, Bitstream, HD Bitstream
- Analogue Audio: Stereo L/R input and output (at each end)
- Microphone: 3.5mm microphone input
Connectivity
- Transmitter Inputs: 1x HDMI, 1x USB 3 Type B (power & data), 1x Phoenix 4-pin (shared IR I/O), 1x 3.5mm (analogue audio L/R), 1x 3.5mm (microphone)
- Transmitter Outputs: 1x RJ45 (HDBaseT), 1x Phoenix 3-pin (RS-232), 2x USB Type A, 1x 3.5mm (analogue audio L/R)
- Receiver Inputs: 1x RJ45 (HDBaseT), 1x Phoenix 4-pin (shared IR I/O), 1x 3.5mm (analogue audio L/R), 1x 3.5mm (microphone)
- Receiver Outputs: 1x HDMI, 1x Phoenix 3-pin (RS-232), 3x USB Type A, 1x 3.5mm (analogue audio L/R)
- Cable: Single Cat5e/6/7
Power
- Transmitter PSU: 24V/2.7A
- Receiver: 48V Power over HDBaseT (PoH) from the transmitter
Weight and Dimensions
- Dimensions (each unit): 128mm (W) x 25mm (H) x 108mm (D)
- Net Weight (each unit): 400g
- Net Weight (kit, both units): 800g
