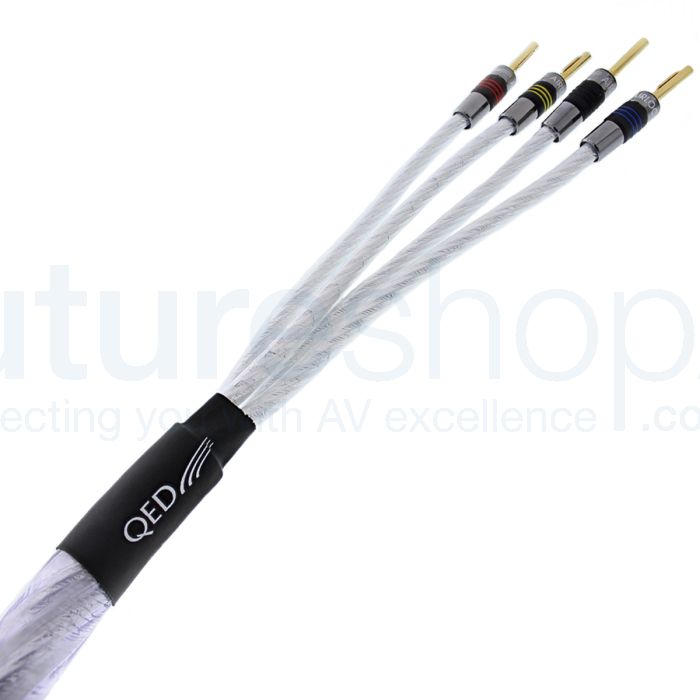

QED Genesis Silver Spiral Bi-Wire Speaker Cable - Custom Length
£90.00 Special Price £80.00 £66.67
SKU
C-GNSSBW/30
Lifetime
New
24 hours
QED's flagship speaker cable. The award winning Genesis Silver Spiral Bi-Wire cable is the result of over 40 years of scientific research and development into speaker cables.
QED Genesis Silver Spiral Bi-Wire Speaker Cable - Custom Length
QED's flagship speaker cable. The award winning Genesis Silver Spiral Bi-Wire cable is the result of over 40 years of scientific research and development into speaker cables.
Silver Spiral’s exceptionally low resistance allows amplifiers to exert outstanding grip and control over the speakers they’re driving, especially at low frequencies. This isn’t just another speaker cable it’s a high performance audio component .This cable represents the culmination of QED research and development over the past 40 years.
Aircore Technology™
QED cables above 2.5mm2 cross sectional area utilise air core technology to obviate the skin effect by bundling several separately insulated smaller cores together to make up a larger CSA. If these conductors are arranged around a hollow central core of polyethylene the self inductance exhibited by the cable can be reduced to around half that predicted by calculation.
The Genesis Report
Silver Spiral’s exceptionally low resistance allows amplifiers to exert outstanding grip and control over the speakers they’re driving, especially at low frequencies. This isn’t just another speaker cable it’s a high performance audio component.
The Genesis Report shattered many of the myths and misconceptions surrounding cable design and established the sound scientific principles to which all our current cables conform. Genesis Silver Spiral is the core of such thinking. It is, above all, sonically accurate. Transparent and neutral. Silver Spiral’s exceptionally low resistance allows amplifiers to exert stunning grip and control on the speakers they’re driving, especially in the bass. Transient response is improved, overhang virtually eliminated. The drivers spend more of their time converting the signal.
This isn’t just another speaker cable but a high performance audio component. It could just be the most cost-effective upgrade you ever make.
Construction
Starting from the inside, Genesis Silver Spiral comprises two grouped bunches of conductors. Each Group is made up of nine individually insulated silver plated 99.999% Oxygen Free Copper cores twisted around two central fillers (one red, one white) in QED's special spiral geometry to minimise sound-degrading "proximity effect".
Silver Plated OFC provides greater conductivity than copper alone and delivers superb resolution and delicacy, especially when used as part of a high-end system. All elements of the dielectric, including the thin, low-density conductor insulation, are Polyethylene (a material with a low dielectric constant and an ability to dramatically reduce signal leakage).
The grouping geometry reduces inductance between conductors, thus minimising field-effect distortions. Aluminium mylar tape separates the twisted conductors and the translucent PVC jacket provides a tough protective flexible outer cover.
Please note: this video is for illustrative purposes only- the Silver Spiral no longer features a metal collar, instead coming with a rubber heat shrink as pictured at the top of the page.
Please note: this video is for illustrative purposes only- the Silver Spiral no longer features a metal collar, instead coming with a rubber heat shrink as pictured at the top of the page.
Specification :
- Please note, you need to enter a quantity of 2 for a pair
- Length: Custom
- Wire gauge - 10 AWG
- Silver plated 99.999% Oxygen Free Copper conductors
- Aircore™ Technology
- Jacket Outer Diameter - 16.60mm
- Cross-sectional area - 5.50 mm2
- Loop resistance - 0.006 Ω/m
- Capacitance - 76 pF/m
- Inductance - 0.46 µH/m
- Dissipation factor - 0.0070
- Recommended for high end installations
- Lifetime Warranty
- Note for customers purchasing stripped bare wire: red & yellow heat shrinks are in place on positive conductors, black & blue heat shrinks are used on negative conductors.
Termination
This cable is professionally terminated by Futureshop's expert engineers using QED's superb 24 Carat gold plated AIRLOC termination plugs.
AIRLOC is QED's specialised loudspeaker termination method and offers the very best termination with QED speaker cables. This is a solder-free, airtight fusion between the cable and plug offering optimum signal transfer, excellent signal quality and perfect long-term performance.
QED’s AIRLOC FORTE metal banana and spade plugs deliver a superior performance over many plugs offered by rival manufacturers for the following reasons. Firstly, the plug is crimped around the conductors under high pressure using a special tool supplied by QED. No soldering is used and as a result the conductors are in contact with the plug 360 degrees which maximises the surface area contact. Furthermore, the banana plug itself is in contact with the binding post again at 360 degrees. The net effect of this is it maximises the signal transfer from the plug into your equipment and hence a superior performance. When bare wire is used not all the conductors are in contact with the binding post and as a result some loss occurs.
Unfortunately the metal barrels for the AIRLOC spades were discontinued in 2012 however we still use genuine QED’s AIRLOC spade plugs with genuine QED heat shrinks over the spade plugs. This ensures every QED speaker cable comes fully terminated with the best of QED's engineering.
Please Note: it is not possible to terminate the Genesis Silver Spiral Bi-Wire speaker cable with 2 AIRLOC plugs at the amplifier end. The larger gauge of the conductors' means we are unable to fit '2' sets of conductors into one AIRLOC plug.
At the amplifier end, we recommend you opt for the WBT-0610Cu banana plugs or the WBT-0681Cu spade plugs which will give you 2 terminations, i.e. one positive, one negative.
Alternatively, if the binding posts on your amplifier accept banana and spade plugs, you can opt for the 2x QED AIRLOC banana plugs with 2x QED AIRLOC spade plugs option. This means one banana and one spade plug can be fitted to the same binding post and will be the equivalent of having two conductors in one AIRLOC plug.
How to Order
From the dropdown menus' above, simply select the length of cable, the type of plugs required at the ‘Amplifier end’ and ‘Speaker end’ and click on the 'Add to Basket' button to add the item to your basket. Your cable will be dispatched as soon as it has been made by Future Shop's or the manufacturer’s engineers and has completed the specified burn-in process (if any), subject to Future Shop’s Terms & Conditions and stock availability.
About QED Cables
QED is an award winning British company with over 40 years of experience in the audio-visual connectivity industry.
In 1973 Bob Abraham and Ian Vine founded QED Audio Products and changed the way people think about hi-fi cables. By the time QED 79 strand speaker cable was launched in 1978, it wasn’t looked upon as ‘just another speaker cable’ but was instead regarded as a serious hi-fi component, making a fundamental change in the way people thought about cables.
QED's reputation for innovation and technical excellence is known throughout the world. The latest computer-aided design techniques allow their research and development team to keep pace with technological advances and deliver products that achieve the highest levels of performance and reliability. This is why QED products are recommended by so many of the world’s leading hi-fi and home theatre equipment manufacturers.
QED offer a range of connectivity products spanning from both consumer and installation cables, wireless products and switching devices to satisfy every audio visual need.
QED is Europe's number one award winning connectivity brand and has won more prestigious cable awards from ‘What Hi-Fi? Sound & Vision’ magazine than any other brand (Awards 1981–2013).
Specification :
- Please note, you need to enter a quantity of 2 for a pair
- Length : Custom
- Wire gauge - 10 AWG
- Silver plated 99.999% Oxygen Free Copper conductors
- Aircore™ Technology
- Jacket Outer Diameter - 16.60mm
- Cross-sectional area - 5.50 mm2
- Loop resistance - 0.006 Ω/m
- Capacitance - 76 pF/m
- Inductance - 0.46 µH/m
- Dissipation factor - 0.0070
- Recommended for high end installations
- Lifetime Warranty
- Note for customers purchasing stripped bare wire: red & yellow heat shrinks are in place on positive conductors, black & blue heat shrinks are used on negative conductors
