QED Original Bi-Wire Speaker Cable - Custom Length

£9.00 £7.50
SKU
C-QBO/50
Lifetime
New
24 hours
what's this?

If you want Future Shop to terminate your speaker cable with our special range of plugs, select Banana/BFA/Z-Plug or Spade plugs from the drop-down menu. We offer a wide range of options on how our highly trained and experienced engineers can fit the plugs to your selected cable. If an option is not available for your requirements, please call us on 0800 772 3688 or 0208 905 1555. All cables are tested for signal integrity before shipping.

what's this?

If you want Future Shop to terminate your speaker cable with our special range of plugs, select Banana/BFA/Z-Plug or Spade plugs from the drop-down menu. We offer a wide range of options on how our highly trained and experienced engineers can fit the plugs to your selected cable. If an option is not available for your requirements, please call us on 0800 772 3688 or 0208 905 1555. All cables are tested for signal integrity before shipping

what's this?

Select the desired length for your cable from the drop-down menu.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

QED's award-winning Original speaker cable is an excellent low-cost cable, with a low-density polyethene dielectric minimising signal energy loss and copper conductors delivering a nicely balanced sound. The bi-wire configuration, if your setup allows, can help you take full advantage of your speaker’s internal crossover to unlock further precision and dynamism.

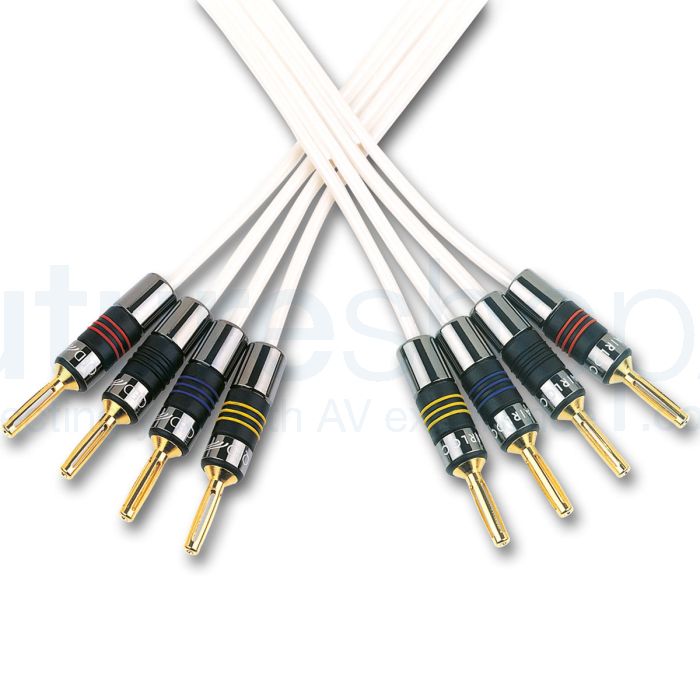

QED Original Bi-Wire Speaker Cable - Custom Length



QED's award-winning Original speaker cable is an excellent low-cost cable, with a low-density polyethene dielectric minimising signal energy loss and copper conductors delivering a nicely balanced sound. The bi-wire configuration, if your setup allows, can help you take greater advantage of your speaker’s internal crossover to unlock further precision and dynamism.

What QED say

The internationally acclaimed award winning QED Original builds on the magic of the original 79 strand.

Original builds on the qualities of QED 79 Strand by adding a low density polyethylene dielectric to cut down on the amount of audio signal energy lost due to cable capacitance. 99.999% oxygen free copper conductors and optimised geometry are used to deliver the superb sound quality of this low cost cable.



76 Strands of 99.999% OFC

To ensure a low resistance pathway for the signal and protection from oxidisation



High Performance Low-Density Polyethylene Dielectric

Used to reduce the amount of audio signal energy lost due to cable capacitance to deliver greater depth and detail.





Specification :

  • Please note, you need to enter a quantity of 2 for a pair
  • Length : Custom
  • Wire gauge - 14 AWG
  • Jacket Outer Diameter - 17mm x 3.60mm (W x D)
  • Cross-sectional area - 2.50mm²
  • Loop resistance - 0.015 Ω/m
  • Capacitance - 22pF/m
  • Inductance - 0.76 µH/m
  • Dissipation factor - 0.0004
  • Ideal for use in all installations
  • Lifetime Guarantee



Termination

This cable is professionally terminated by Futureshop's expert engineers using QED's superb 24 Carat gold plated AIRLOC termination plugs.

AIRLOC is QED's specialised loudspeaker termination method and offers the very best termination with QED speaker cables. This is a solder-free, airtight fusion between the cable and plug offering optimum signal transfer, excellent signal quality and perfect long-term performance.

QED’s AIRLOC FORTE metal banana and spade plugs deliver a superior performance over many plugs offered by rival manufacturers for the following reasons. Firstly, the plug is crimped around the conductors under high pressure using a special tool supplied by QED. No soldering is used and as a result the conductors are in contact with the plug 360 degrees which maximises the surface area contact. Furthermore, the banana plug itself is in contact with the binding post again at 360 degrees. The net effect of this is it maximises the signal transfer from the plug into your equipment and hence a superior performance. When bare wire is used not all the conductors are in contact with the binding post and as a result some loss occurs.

Unfortunately the metal barrels for the AIRLOC spades were discontinued in 2012 however we still use genuine QED’s AIRLOC spade plugs with genuine QED heat shrinks over the spade plugs. This ensures every QED speaker cable comes fully terminated with the best of QED's engineering.

QED AIRLOC Forte Banana and Spade Plugs Diagram

How to Order

From the dropdown menus' above, simply select the length of cable, the type of plugs required at the ‘Amplifier end’ and ‘Speaker end’ and click on the 'Add to Basket' button to add the item to your basket. Your cable will be dispatched as soon as it has been made by Future Shop's or the manufacturer’s engineers and has completed the specified burn-in process (if any), subject to Future Shop’s Terms & Conditions and stock availability.

About QED Cables Made in United Kingdom

QED is an award winning British company with over 40 years of experience in the audio-visual connectivity industry.

In 1973 Bob Abraham and Ian Vine founded QED Audio Products and changed the way people think about hi-fi cables. By the time QED 79 strand speaker cable was launched in 1978, it wasn’t looked upon as ‘just another speaker cable’ but was instead regarded as a serious hi-fi component, making a fundamental change in the way people thought about cables.

QED's reputation for innovation and technical excellence is known throughout the world. The latest computer-aided design techniques allow their research and development team to keep pace with technological advances and deliver products that achieve the highest levels of performance and reliability. This is why QED products are recommended by so many of the world’s leading hi-fi and home theatre equipment manufacturers.

QED offer a range of connectivity products spanning from both consumer and installation cables, wireless products and switching devices to satisfy every audio visual need.

QED is Europe's number one award winning connectivity brand and has won more prestigious cable awards from ‘What Hi-Fi? Sound & Vision’ magazine than any other brand (Awards 1981–2013).

Specification :

  • Please note, you need to enter a quantity of 2 for a pair
  • Length : Custom
  • Wire gauge - 14 AWG
  • Jacket Outer Diameter - 17mm x 3.60mm (W x D)
  • Cross-sectional area - 2.50mm²
  • Loop resistance - 0.015 Ω/m
  • Capacitance - 22pF/m
  • Inductance - 0.76 µH/m
  • Dissipation factor - 0.0004
  • Ideal for use in all installations
  • Lifetime Guarantee
