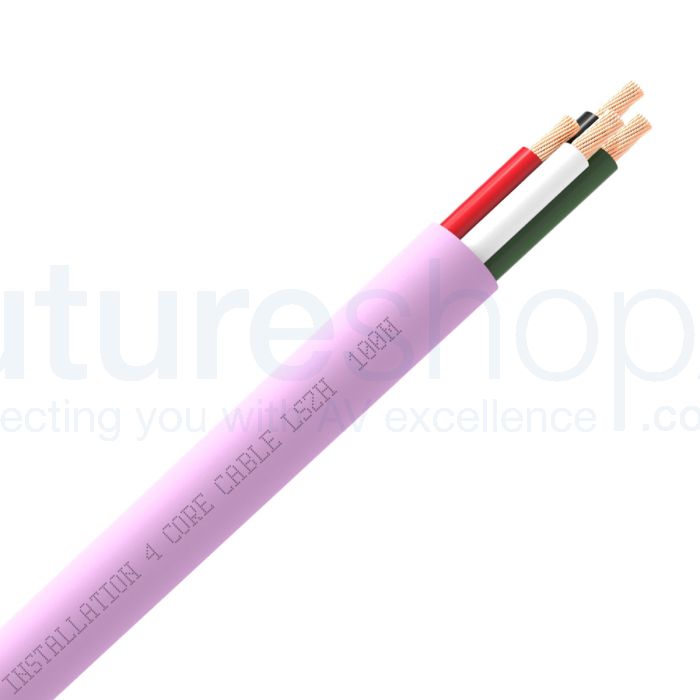

QED QX16/4 4 Core Speaker Cable Pink (LSZH) - 300m Drum

£390.00 £325.00
SKU
QED QX16/4 Pink 300m
Free UK Delivery
Lifetime
New
what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

QX16/4 LSZH is a high performance and exceptional quality installation speaker cable with the added bonus of a fully certificated LSZH fire rated design.

QED QX16/4 4 Core Speaker Cable Pink (LSZH) - 300m Drum



QX16/2 and QX16/4 LSZH are high performance and exceptional quality installation speaker cables with the added bonus of a fully certificated LSZH fire rated design. They deliver excellent levels of performance in all multi-room and home cinema installations.



Features :

  • Large cross-sectional area of high purity copper conductors
  • Ensures good performance levels are maintained even on longer runs
  • Sequentially metre marked - counting down so you always know what you have left on the reel or in the box
  • Colour-coded conductor sheaths
  • Fully tested LSZH Design
  • Full test report available on request
  • RoHS2 Compliant
  • Supplied in 100m (328ft) PRObox & on 300m (984ft) reel

QED QX16/4 Conductor Construction Diagram

Low Smoke Zero Halogen (LSZH)

Most cables feature PVC insulation, some have a basic fire rating such as CL3, etc. Unfortunately, most cables give off hazardous toxic smoke during a fire, posing a very serious health risk. LSZH cables are made from a special compound that performs as well as PVC insulation, but crucially gives off very little smoke and no halogen toxins in the event of a fire.

Many leading architects and builders along with commercial and marine designers are now specifying LSZH spec cables as standard. Only LSZH cables meet the legislated fire specifications for boat installations.

Each complete QED Professional cable design is fully tested to LSZH standards and reports are available on request. QED don't just use a fire rated jacket material over an ordinary cable assembly; each complete cable design including jacket and all internal conductors has to undergo rigorous fire safety testing to the following standards:

IEC 61034-1:2005 :
IEC 61034-2:2005 :
Measurement of smoke density of cables burning
under defined conditions.
IEC 60332-1:2004 : Test for vertical flame propagation for a single insulated wire or cable.
IEC 60754-2:1991 : (Amendment1, 1997) test on gas evolved during combustion of electric cables.



Specification :

  • Conductor Size : 16 AWG
  • Conductor Construction : 30/0.25
  • Conductor Resistance : 13.3 Ω/km
  • Conductor Cross-sectional Area : 1.5 mm2
  • Insulation Colour : Red, Black, White, Green
  • Dielectric Strength : 600 kV AC
  • Jacket Material : LSZH
  • Outside Diameter : 7.20 mm
  • Jacket Colour : Pink
  • Weight : 98 kg/km
  • Lifetime Warranty



About QED Cables Made in United Kingdom

QED is an award winning British company with over 40 years of experience in the audio-visual connectivity industry.

In 1973 Bob Abraham and Ian Vine founded QED Audio Products and changed the way people think about hi-fi cables. By the time QED 79 strand speaker cable was launched in 1978, it wasn’t looked upon as ‘just another speaker cable’ but was instead regarded as a serious hi-fi component, making a fundamental change in the way people thought about cables.

QED's reputation for innovation and technical excellence is known throughout the world. The latest computer-aided design techniques allow their research and development team to keep pace with technological advances and deliver products that achieve the highest levels of performance and reliability. This is why QED products are recommended by so many of the world’s leading hi-fi and home theatre equipment manufacturers.

QED offer a range of connectivity products spanning from both consumer and installation cables, wireless products and switching devices to satisfy every audio visual need.

QED is Europe's number one award winning connectivity brand and has won more prestigious cable awards from ‘What Hi-Fi? Sound & Vision’ magazine than any other brand (Awards 1981–2013).

Specification :

  • Conductor Size : 16 AWG
  • Conductor Construction : 30/0.25
  • Conductor Resistance : 13.3 Ω/km
  • Conductor Cross-sectional Area : 1.5 mm2
  • Insulation Colour : Red, Black, White, Green
  • Dielectric Strength : 600 kV AC
  • Jacket Material : LSZH
  • Outside Diameter : 7.20 mm
  • Jacket Colour : Pink
  • Weight : 98 kg/km
  • Lifetime Warranty
