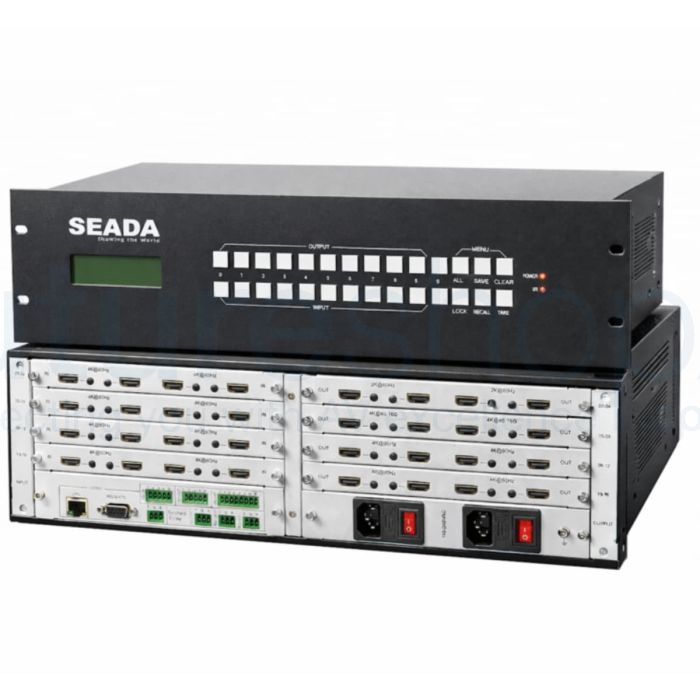

Seada SWME 4K Seamless Modular Matrix Switchers With Video Wall & Multiview

Item code: SWME

The Seada SWME is a range of 4K seamless modular matrix switchers offering real-time routing of multiple AV sources and displays from a single chassis at 4K@60 4:4:4. Modular input and output cards cover HDMI, DVI, VGA, SDI, HDBaseT and fibre, so the…
£4,917.00
£4,097.50
✓ Save %

Lowest price in the last 30 days:

60-day returns
Outside the UK? VAT removed automatically at checkout. Pre-paid duties available for selected destinations.
Please choose:

Configuration

*
Configured total
£4,097.50 Ex. VAT
Qty:

SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

£4,097.50 ex. VAT
Available
Delivery: Royal Mail Tracked 24 FREE  ·  DPD Next Day from £8.95  ·  DPD Saturday from £12.95
Order before 4pm (Mon–Fri) for same-day dispatch
Our promise: 60-day returns · Free burn-in · Built in our UK workshop · Expert support on every order

Seada SWME 4K Seamless Modular Matrix Switchers With Video Wall & Multiview



The Seada SWME, the Elite version of the company's SolarWall Matrix line, is a modular seamless matrix switcher designed to give real-time access to and control over multiple local and remote AV sources and displays from a single chassis, working throughout at 4K 60Hz in full 4:4:4 colour. Because it is modular rather than fixed, the input and output format mix is specified per installation using cards covering HDMI, DVI, VGA, SDI, HDBaseT and fibre, which means a single system can take in legacy VGA or broadcast SDI alongside modern HDMI sources and send them out over whichever transport suits the site, including HDBaseT and fibre for long runs.

Video and audio can be switched and routed independently, so a source's picture and sound can be sent to different destinations, feeding monitors, displays, projectors and speakers as needed. Switching is seamless, changing sources without the drop-out and re-handshake that interrupt a conventional matrix, and the platform adds video wall and multiview capability alongside straightforward matrix routing. Up and down scaling is handled internally with individual video settings available per screen, customised EDID is supported on both inputs and outputs, and preset layouts can be stored and recalled for different room configurations. Signal preview is available across the range with the exception of the 2U model.

The SWME range spans four chassis sizes to suit the scale of the installation: the SWME08 in 2U at 8x8, the SWME16 in 3U at 16x16, the SWME32 in 5U at 32x32, and the SWME80 in 11U at 80x80. Control is equally flexible, with front panel pushbuttons, a remote control, TCP/IP and RS-232 all supported, so the matrix can be driven by hand in the rack or integrated into a wider control system. All models run from a 110V to 240V AC supply at 50 or 60Hz with a redundant power supply for resilience in critical installations, operate from 0 to 40 degrees Celsius, and are backed by a two year warranty.


What Seada say about the SWME

The SolarWall Matrix Elite version (SWME) Modular seamless series matrix switchers offer advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis at 4K 60Hz 4:4:4 resolution. The SWME switcher allows users to independently switch and route video and audio content directly to various monitors displays projectors and/or speakers simply by using front panel pushbuttons or remote control or controlling via TCP/IP or RS232.



Specifications

General
  • Brand: Seada Technology
  • Range: SWME (SolarWall Matrix Elite)
  • Product Type: 4K seamless modular matrix switcher with video wall and multiview
  • Maximum Resolution: 4K@60fps (4:4:4)
  • Seamless Switching: Yes
  • Video Wall: Supported
  • Multiview: Supported
  • Signal Preview: Supported (except the 2U SWME08)
  • Scaling: Up and down scaling, individual video settings per screen
  • EDID: Customised EDID on inputs and outputs
  • Presets: Customised preset layouts
  • HDCP: Compliant (version not stated)
  • Operating Temperature: 0 to 40°C
  • Warranty: 2 Years
Models and Configurations
  • SWME08: 2U, 8x8
  • SWME16: 3U, 16x16
  • SWME32: 5U, 32x32
  • SWME80: 11U, 80x80
Modular Cards
  • Available Card Formats: HDMI, DVI, VGA, SDI, HDBaseT, Fibre
  • Configuration: Input and output cards specified per installation
Control
  • Front Panel: Pushbuttons
  • Remote Control: Supported
  • Network: TCP/IP
  • Serial: RS-232
Power
  • Input: AC 110V to 240V, 50/60Hz
  • Redundancy: Redundant power supply
Weight and Dimensions
  • Width: 482mm (all models)
  • Depth: 380mm (all models)
  • Height: Varies by model, from 88mm (2U) to 512mm (11U)



About SEADA

SEADA Technology Limited is a UK based, 2019 Queens Award for Enterprise winning, world-leading manufacturer of Video Wall Controllers, Conference technology and Pro AV solutions.

SEADA’s mission is to offer the most innovative and cost-effective solutions for our customers, in video wall controller applications. SEADA is proud to be located in Birmingham, England, the birthplace of British Engineering. All our products are manufactured and tested at our UK facility.

Specifications

General
  • Brand: Seada Technology
  • Range: SWME (SolarWall Matrix Elite)
  • Product Type: 4K seamless modular matrix switcher with video wall and multiview
  • Maximum Resolution: 4K@60fps (4:4:4)
  • Seamless Switching: Yes
  • Video Wall: Supported
  • Multiview: Supported
  • Signal Preview: Supported (except the 2U SWME08)
  • Scaling: Up and down scaling, individual video settings per screen
  • EDID: Customised EDID on inputs and outputs
  • Presets: Customised preset layouts
  • HDCP: Compliant (version not stated)
  • Operating Temperature: 0 to 40°C
  • Warranty: 2 Years
Models and Configurations
  • SWME08: 2U, 8x8
  • SWME16: 3U, 16x16
  • SWME32: 5U, 32x32
  • SWME80: 11U, 80x80
Modular Cards
  • Available Card Formats: HDMI, DVI, VGA, SDI, HDBaseT, Fibre
  • Configuration: Input and output cards specified per installation
Control
  • Front Panel: Pushbuttons
  • Remote Control: Supported
  • Network: TCP/IP
  • Serial: RS-232
Power
  • Input: AC 110V to 240V, 50/60Hz
  • Redundancy: Redundant power supply
Weight and Dimensions
  • Width: 482mm (all models)
  • Depth: 380mm (all models)
  • Height: Varies by model, from 88mm (2U) to 512mm (11U)
