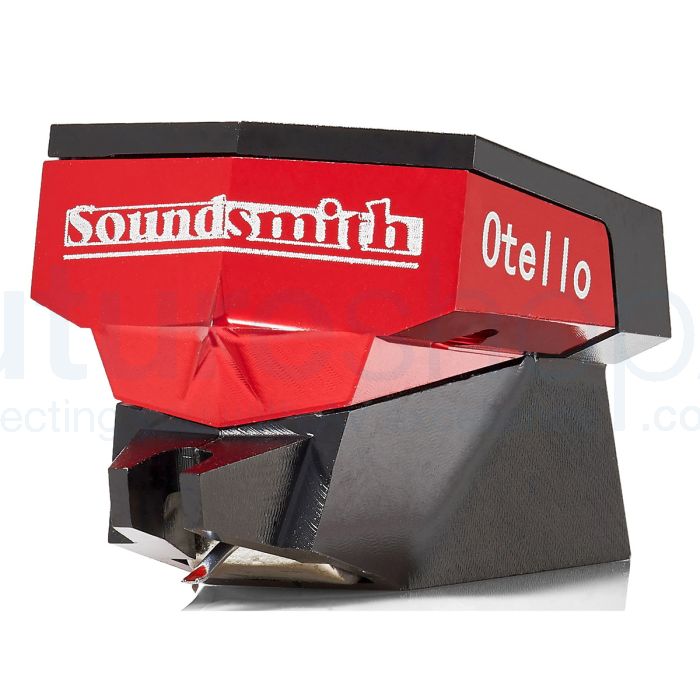

Soundsmith Otello High-Output HiFi Turntable Cartridge
£399.00 £332.50
SKU
Soundsmith Otello HiFi
Free UK Delivery
24 Months
New
48 Hours
The Otello is the entry-level model in Soundsmith's range of high-output cartridges, featuring an elliptical, titanium stylus. As part of the Fixed Coil range, Otello benefits from minimal noise returned to your record and reduced 'stylus jitter', resulting in clear and detailed sound.
Soundsmith Otello High-Output HiFi Turntable Cartridge
The Otello is the entry-level model in Soundsmith's range of high-output cartridges, featuring an elliptical, titanium stylus. As part of the Fixed Coil range, Otello benefits from minimal noise returned to your record and reduced 'stylus jitter', resulting in clear and detailed sound.
What Soundsmith say
Soundsmith's entry-level design captures more than its share of recorded beauty —by design. Big soundstage, detail and resolution at an affordable price.
The Otello is Soundsmith’s entry-level Fixed Coil design, realizing an affordable pathway into the world of high-performance cartridges. Built by hand like all Soundsmith cartridges, the Otello provides a perfect balance of tone and resolution at a great price. The result is a cartridge that is at ease with any type of music. Just slightly warmer than other Soundsmith designs, Otello yields a richness of timbre that is utterly beguiling with a level of speed and dynamic range that no other cartridge in this price. The result? A wonderful design that gives the warmth of MM and the light-footedness of Moving Iron design.
Features
Cartridge Type: Fixed Coil
Stylus Type: Elliptical
Output: High
Specification
Type: Fixed Coil / Moving Iron
Mount: Standard ½”
Stylus: Elliptical Titanium Bonded, 0.20 mm round
Radius of Curvature: 6 x 17 µm
Cantilever: Aluminum Alloy
Recommended Tracking Force: 1.3 - 1.6 g Standard (Medium Compliance)
Effective Tip Mass: 0.50 mg
Compliance: 22 µm/mN
Frequence Response: 20 - 20,000 Hz ± 2.5 dB
Channel Separation @ 1000 Hz: > 24 dB
Channel Separation @ 50 - 15,000 Hz: > 20 dB
Channel Difference: < 1.8 dB
Output Voltage @ 5cm/sec: > 2.12 mV (HIGH)
DC Resistance (DCR): 680Ω
Coil Inductance per channel: 190 mH
Suggested Preamp Gain: 38 - 44 dB
Cartridge Weight: 9.20 g (ES series)
Recommended Load Resistance: ≥ 47kΩ
Recommended Load Capacitance: n/a
About Soundsmith
Soundsmith, a speciality audio manufacturer located just north of New York City, has been a renowned name in the audiophile world since its establishment in 1972. With a commitment to exceptional sonic quality and exceptional value, Soundsmith has earned an enviable reputation among audio enthusiasts. The company is best known for its cartridge expertise, including cartridge restoration and groundbreaking Strain Gauge and Fixed Coil cartridges. Every Soundsmith product is skillfully hand-crafted by a team of skilled artisans and engineers in the company's Peekskill, NY factory.
Made in the USA, Soundsmith takes pride in its four-decade presence in Westchester County, New York. The company offers audio repairs for a wide range of major brands, serving customers from all around the globe. Brands such as Audio Research, Revox, Bang & Olufsen, Nakamichi, Tandberg, Halcro, DartZeel, Jeff Rowland, and McIntosh, among many others, trust Soundsmith for their equipment repairs. Moreover, Soundsmith has a long-standing history of designing and manufacturing various types of audio equipment, showcasing their unwavering dedication to achieving the pinnacle of audio reproduction.
When it comes to vinyl playback, nothing matters more than achieving the best possible sound quality. Soundsmith's highly respected, hand-made phono cartridges are coveted by turntable enthusiasts worldwide. With a wide range of models available, including the Hyperion MKII-MR, Hyperion, Sussurro Gold Limited Edition, Sussurro mk II, Paua mk II, Zephyr MIMC, Helios, Mezzo, Nautilus, Sotto Voce, Norma, The Voice, Aida, Boheme, Zephyr MK III, Carmen MK II, Otello, Irox Ultimate, and Irox Blue, Soundsmith ensures that every vinyl lover can find the perfect cartridge to suit their needs. The extensive range includes low-output and high-output models and specialised models designed for unique applications.
Choose Soundsmith for the ultimate vinyl experience. With their meticulous craftsmanship, unwavering commitment to quality, and a diverse range of phono cartridges, Soundsmith continues to elevate vinyl reproduction to new heights. Discover the perfect match for your turntable and unleash the full potential of your vinyl collection with Soundsmith Cartridges from Future Shop.
Type: Fixed Coil / Moving Iron
Mount: Standard ½”
Stylus: Elliptical Titanium Bonded, 0.20 mm round
Radius of Curvature: 6 x 17 µm
Cantilever: Aluminum Alloy
Recommended Tracking Force: 1.3 - 1.6 g Standard (Medium Compliance)
Effective Tip Mass: 0.50 mg
Compliance: 22 µm/mN
Frequence Response: 20 - 20,000 Hz ± 2.5 dB
Channel Separation @ 1000 Hz: > 24 dB
Channel Separation @ 50 - 15,000 Hz: > 20 dB
Channel Difference: < 1.8 dB
Output Voltage @ 5cm/sec: > 2.12 mV (HIGH)
DC Resistance (DCR): 680Ω
Coil Inductance per channel: 190 mH
Suggested Preamp Gain: 38 - 44 dB
Cartridge Weight: 9.20 g (ES series)
Recommended Load Resistance: ≥ 47kΩ
Recommended Load Capacitance: n/a
