Supra LoRad Mk3 Surge-Protected UK Mains Distribution Block

£180.00 £150.00
SKU
Supra MD02/04/06/08/10-BS/SP
Free UK Delivery
Lifetime
New
24 hours
what's this?

Please select the number of sockets required on your block from the available options.

what's this?
SPEAKER CABLES:

A quantity of 2 means you will receive a pair of speaker cables e.g. for your front left and front right speakers. By entering a quantity of 1, you will get a cable for a single speaker e.g. centre speaker and this option also enables you to vary the length (and termination) of your cable for each speaker.

OTHER CABLES:

A quantity of 1 means you will receive a single cable in the case of aerial, satellite, subwoofer, digital coaxial & optical cables and a pair of cables in the case of 2 rca to 2 rca analogue audio cables.

NON-CABLE PRODUCTS:

A quantity of 1 means you will receive 1 of the specified products.

Available

Need help? Call us on 0800 772 3688 or 0208 905 1555

Prefer email? Contact us via sales@futureshop.co.uk

Supra mains distribution block consisting of BS sockets conforming to British Standards British Standard BS1363/A including Ireland. The input is a 10 ampere male chassis connector according to the international standard IEC-320. It provides a non-intrusive filtering (NIF) and a 3-way surge protection (SP).

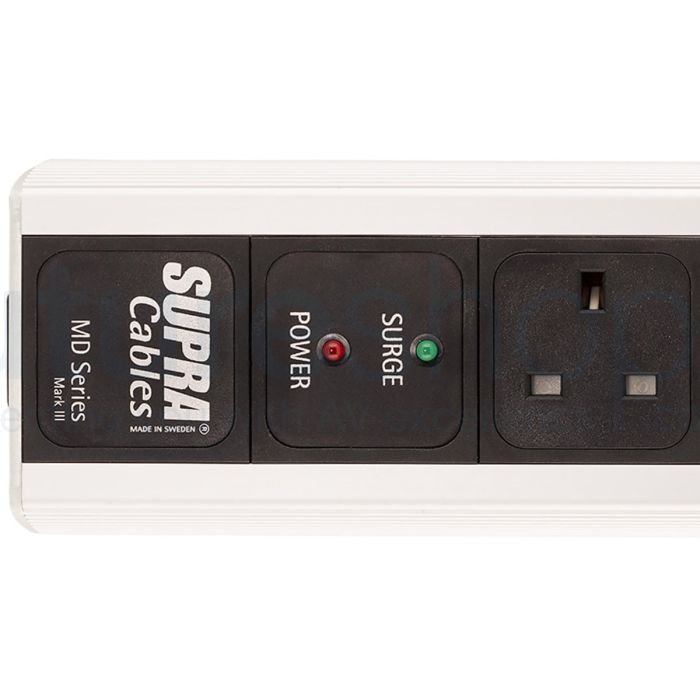

Supra LoRad Mk3 Surge-Protected UK Mains Distribution Block



Please Note : Power Cables are not supplied with this block. Requires a 16A power cable for the 16A inlet.

Supra mains distribution block consisting of BS sockets conforming to British Standards British Standard BS1363/A including Ireland. The input is a 10 ampere male chassis connector according to the international standard IEC-320. It provides a non-intrusive filtering (NIF) and a 3-way surge protection (SP).

The Supra mains blocks are shielded and radiated low levels of electricity generated fields thanks to their aluminium chassis connected to ground potential. The conductive chassis drains the internal interference down to ground and prevents also adjacent RFI and other malicious fields to enter the distribution block. It has to be connected to a grounded wall socket with a mains cable providing ground lead, in order to work properly. The mains cable connecting the mains block to the wall socket and the mains cables to each device should for maximum interference dampening/immunity also be shielded. We recommend our Supra LoRad Mains Flex as the best alternative to combine with our distribution block. If you are new to the field of mains power shielding and filtering, you will undoubtedly notice the difference.



Features:

  • LoRad stands for low radiation of electric and magnetic alternating fields, keeping you and your family free from harmful influence
  • The screen protects your equipment from radiated mains, RF pick-up and allows you to enjoy your hi-fi set or TV's full potential
  • The Surge Protection will give your hifi gear the chance to survive a close by lightning strike
  • LoRad result in a cleaner sound, better picture and a more healthy home and working invironment with low levels of harmful fields
  • Unbeatable price-performance ratio
  • 3-way Surge Protection
  • Supra NIF Transient Filter


3-Way Surge Protection

The SP-models are all equipped with the Supra Surge Protection which protects all three ways; i.e. Live to Earth, Neutral to Earth and Live to Neutral. The standard surge protection manufacturer think that it is sufficient to offer only Live to Neutral protection, and they do not protect against field surges by proximate lightning strikes. The only better way to protect your equipment compared to Supra SP is to disconnect all mains power, interconnects and communications with adjacent devices completely. Unfortunatly the thunder storms does not follow a schedule, next time you may be at work...

All filtering and all protection need a mains wall socket with a ground terminal to operate. If your multimedia- and hifi equipment is of a certain standard, they will probably require ground connection themselves and use a IEC-320 socket for detachable mains power cords. If your equipment is such and you do not have ground terminal in your mains wall sockets, we recommend you to contact your landlord and/or an electrician to arrange for ground connection. Doing so, will undoubtedly both increase sound quality and the security for your equipment.



SUPRA NIF Transient Filter

A Non-Intrusive Filtering circuitry, providing a mild noise and radio frequency filtering that will not slow down or mute the dynamics from your Hi-Fi audio system.



Specification:

  • 2-way to 6-way blocks:
    • Output 1 - Non Filtered, Surge protected
    • Outputs 2 to 6 - Filtered, Surge protected (SUPRA Mains block must be connected to a ground terminal socket for the various protections and filters to be active)
  • 8-way to 15-way blocks:
    • Outputs 1 & 2 - Non filtered, Surge protected
    • Outputs 3 to 15 - Filtered, Surge protected (SUPRA Mains block must be connected to a ground terminal socket for the various protections and filters to be active)
  • Requires a 16A power cable for the 16A inlet.
  • Chassis: Aluminium
  • Sockets: European Standard
  • Inlet: SUPRA MCH-10, IEC320 10A
  • Available Number of Outlets: 2, 4, 6, 8, 10
  • Outlets: UK 3 Pin sockets, fully shielded in Aluminium
  • Radiation Free, with Non-Intrusive Filtering and 3-way Surge Protection
  • NIF-filter & Shielded
  • Radio frequency interference reduced by 40dB!
  • Internal wiring of 2.5sq mm oxygen free copper conductors
  • Supports a staggering 2300W of continuous power!
  • Protects you and your Hi-Fi audio system from harmful noise fields and radiation!
  • Max AC Current: 10A
  • Max AC Voltage: 250V
  • Max Continuous Power: 2300W
  • Fuse: Ceramic 10A, Slow
  • Surge Protection: Type 3
  • Uoc = 2.5kV(P-N), 4.0kV(P(N)-PE)
  • Up = 2.0kV(P-N), 2.05V(P(N)-PE)
  • Suitable for wall mounting



About Supra Cables

Supra Cables started in 1976 and have won an impressive number of awards all over the world, often in comparison with more expensive competitor cables. Supra cables philosophy is best described as plain and simple 'No-Nonsense-Design.' All products are manufactured from parts meeting the highest audible and measureable quality standards. Supra manufacture in their own dedicated production facilities in Ljungskile, Sweden, which are constantly monitored by certified quality staff to ensure the very highest quality standards across a wide-range of product lines.

Specification:

  • 2-way to 6-way blocks:
    • Output 1 - Non Filtered, Surge protected
    • Outputs 2 to 6 - Filtered, Surge protected (SUPRA Mains block must be connected to a ground terminal socket for the various protections and filters to be active)
  • 8-way to 15-way blocks:
    • Outputs 1 & 2 - Non filtered, Surge protected
    • Outputs 3 to 15 - Filtered, Surge protected (SUPRA Mains block must be connected to a ground terminal socket for the various protections and filters to be active)
  • Requires a 16A power cable for the 16A inlet.
  • Chassis: Aluminium
  • Sockets: European Standard
  • Inlet: SUPRA MCH-10, IEC320 10A
  • Available Number of Outlets: 2, 4, 6, 8, 10
  • Outlets: UK 3 Pin sockets, fully shielded in Aluminium
  • Radiation Free, with Non-Intrusive Filtering and 3-way Surge Protection
  • NIF-filter & Shielded
  • Radio frequency interference reduced by 40dB!
  • Internal wiring of 2.5sq mm oxygen free copper conductors
  • Supports a staggering 2300W of continuous power!
  • Protects you and your Hi-Fi audio system from harmful noise fields and radiation!
  • Max AC Current: 10A
  • Max AC Voltage: 250V
  • Max Continuous Power: 2300W
  • Fuse: Ceramic 10A, Slow
  • Surge Protection: Type 3
  • Uoc = 2.5kV(P-N), 4.0kV(P(N)-PE)
  • Up = 2.0kV(P-N), 2.05V(P(N)-PE)
  • Suitable for wall mounting
