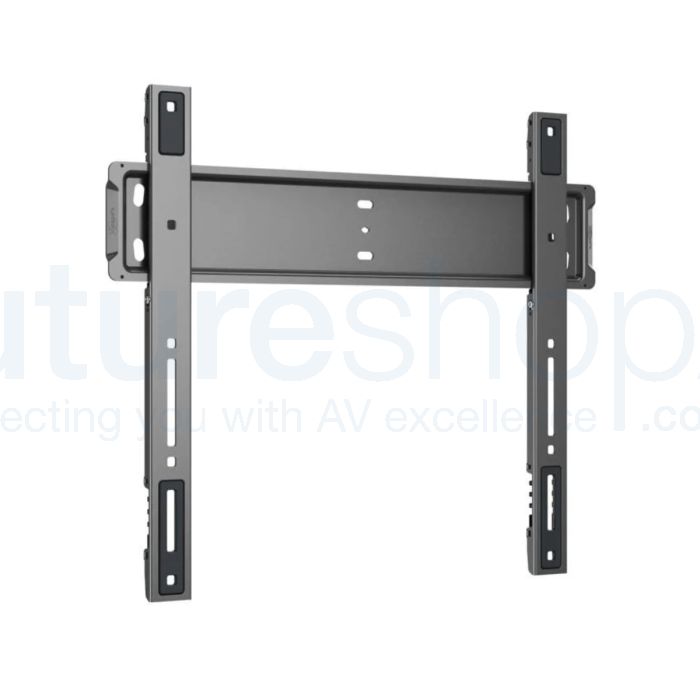

Vogel's TVM 5505 Fixed TV Wall Mount
The Vogel's TVM 5505 is a fixed wall mount from the ELITE series, designed for large premium televisions up to 77 inches and 75kg, and built to keep them as close to the wall as possible at just 1.3cm. At that distance the screen sits flush enough to read as a considered part of the room rather than something simply bolted to it, and the black finish and clean profile support that impression. A 500mm wall plate accommodates a wide range of stud spacings, and a double row of drill holes makes installation into wooden studs straightforward without compromising on positioning options.
Hanging a large, heavy television accurately is where most wall mounts create frustration, and the TVM 5505 addresses this directly with the GuidanceSystem, a patent-pending feature that makes it clear exactly where the TV needs to be positioned before it is committed to the wall plate. Once in place, an improved click-lock mechanism secures the screen firmly, and a side lock provides additional protection against unwanted movement from accidental contact. There is no need to remove the TV to make adjustments once it is locked in, keeping the process clean and straightforward from start to finish.
The mount is compatible with VESA patterns from 100x100mm up to 400x400mm and comes complete with fischer Duo Power plugs, a drilling template, TV fasteners, and access to the DrillRight app to guide installation. Integrated cable management keeps wiring tidy behind the screen, completing a well-considered package for anyone looking to install a large screen properly and permanently.
What Vogel's Say about the TVM 5505 Fixed TV Wall Mount
The ELITE Fixed 5505 is the ultimate solution for those who want to hang their large screen tightly and securely on the wall, up to 75 kg (165 lb). With only a 1.3 cm distance from the wall, your TV looks like a work of art on the wall. The mount combines style, strength and ease of use.
Thanks to the unique GuidanceSystem™ (patent pending), you can see exactly where you need to be while hanging the TV. Simply attach the TV to the wall plate. The improved click-lock mechanism keeps your TV securely in place, without the hassle of having to remove it later. And thanks to the side lock, your TV is protected from unwanted movements, even when bumped.
This mount is made for years of use. It comes complete with drilling template, plugs, our handy DrillRight app and integrated cable management. The 500 mm wall plate is also perfect for installation on studs. Like every ELITE mount, this one also comes with a 15-year guarantee, your security for the future.
We think it is important to know our products inside out. This is why we also calculate the environmental impact of our products. This enables you to know what choice you are making. This product has a 5,4 kg CO₂ equivalent. For more explanation or details, download this product's ecosheet.
- Hang your TV with confidence using the patent-pending GuidanceSystem™, showing you exactly where to position the TV during installation
- Sits just 1.3 cm from the wall, creating a sleek, picture-frame appearance on your wall
- Designed for large premium TVs up to 77 inches and 75 kg (165 lb)
- Improved click-lock mechanism and side lock keep your TV securely in place and protected from accidental movement
- 500 mm wall plate with double row of drill holes, ideal for wooden stud installation
- Includes drilling template, wall plugs, DrillRight app and integrated cable management
Specifications
General
- Product Category: Fixed TV Wall Mount
- Product Series: Elite
- Colour: Black
- EAN: 8712285413605
Compatibility
- Min. Screen Size: 32 inches
- Max. Screen Size: 77 inches
- Max. Weight Load: 75kg
- VESA Hole Patterns:
- 100 x 100mm
- 100 x 200mm
- 200 x 100mm
- 200 x 200mm
- 200 x 300mm
- 300 x 200mm
- 300 x 300mm
- 400 x 200mm
- 400 x 300mm
- 400 x 400mm
Installation
- Min. Distance to Wall: 13mm
In the Box
- Wall mount
- Wall mounting kit with fischer Duo Power plugs
- TV fasteners kit
- Quick Installation Guide
- DrillRight app
- Drilling template
About Vogel's
What began as a personal quest for perfection has evolved into an international successful company that manufactures a highly distinctive range of mounts and support systems for audio/video & multimedia equipment. Our products combine versatile functionality and robust performance with sleek design. For more than 50 years, Vogel’s solutions have been based on the talent and commitment of people who care passionately about the products they create and the customers who use them.
At Vogel's, quality is a high priority - maybe even the highest - when it comes to designing our AV solutions. That is why we use high-quality materials. On top of that, we make sure our products are tested 3 (consumer products) or 5 (professional solutions) times maximum weight.
Corporate social responsibility is an indispensable part of how we work. Respect for people and planet is an important value. Every day we work hard to make steps towards a more sustainable future.
